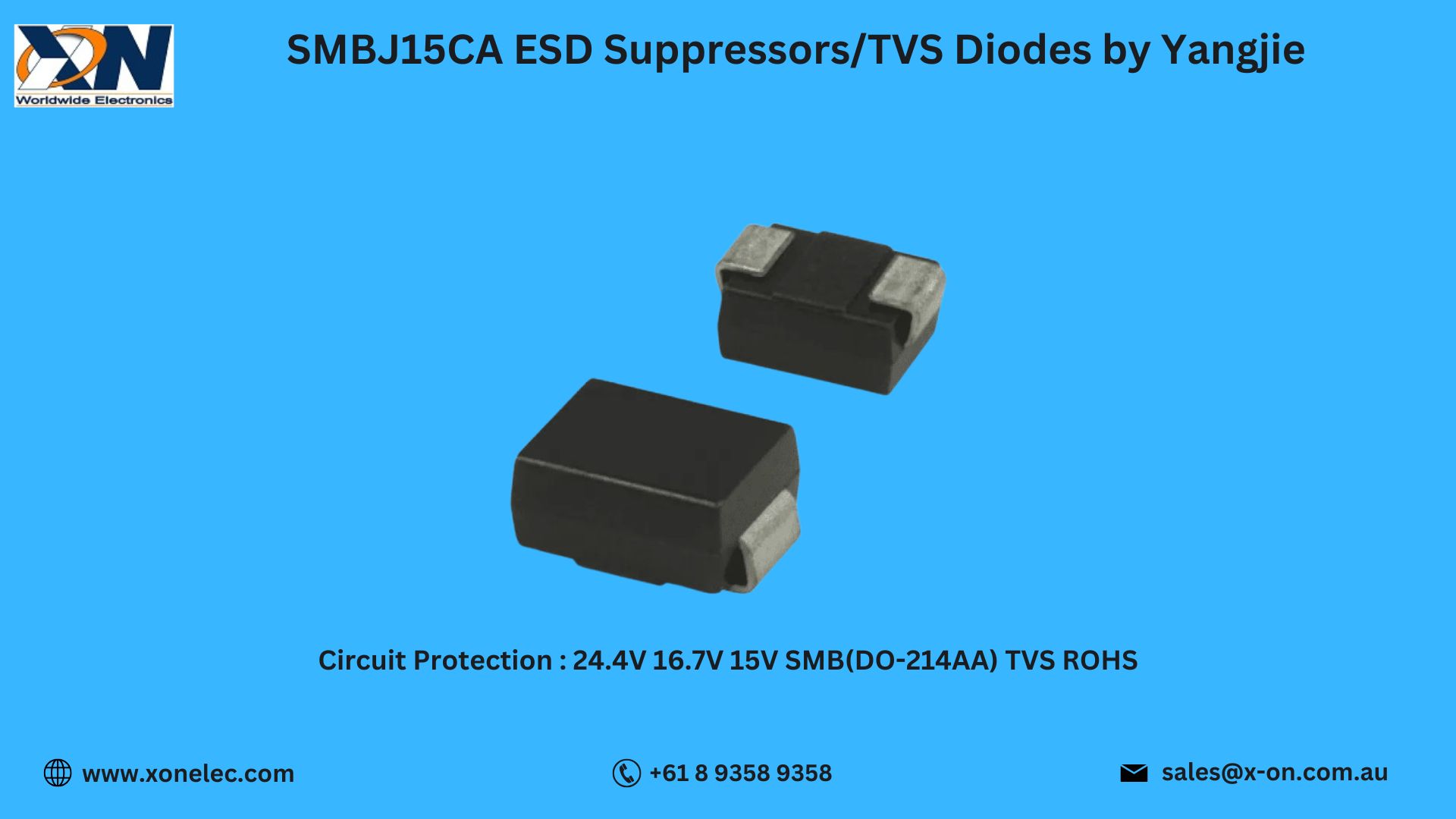

SMBJ15CA ESD Suppressors by Yangjie – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by Yangjie are high-performance bidirectional devices that protect sensitive electronic components from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast response time, the SMBJ15CA is ideal for industrial, telecom, automotive, and consumer applications requiring robust circuit protection.

This blog explains the technical specifications, key features, applications, wiring details, and how to order worldwide from Xon Electronics, shipping to the USA, India, Australia, Europe, and more.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Yangjie

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

Compact and efficient, the SMBJ15CA is a reliable solution for modern circuit protection needs.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power for high-energy surge absorption

• Bidirectional Design for AC and DC protection

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to protect downstream components

• Compact SMB Package for space-constrained PCB layouts

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes provide durable and efficient circuit protection for critical applications.

3. Applications of SMBJ15CA

The SMBJ15CA is widely used in:

• Industrial Automation Controllers

• Telecom and Networking Devices

• LED Drivers and Display Systems

• Automotive Electronics and Infotainment Units

• Power Supplies and Embedded Devices

• Consumer Electronics

Its robust design ensures reliable circuit protection across multiple industries.

4. Wiring and Connection Overview

Typical wiring configuration for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This setup ensures fast clamping of voltage surges, keeping components safe.

5. Use Case Scenario: Surge Protection in Power Supplies

Scenario: A power supply manufacturer experienced repeated failures during voltage spikes.

Problem: Their existing protection components could not withstand high-energy surges.

Solution: Replacing with SMBJ15CA by Yangjie provided better surge endurance and system stability.

Result: Reduced failures, improved reliability, and lower maintenance costs.

6. Download Datasheet for SMBJ15CA

Get complete technical details and compliance specifications:

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Buy SMBJ15CA ESD Suppressors/TVS Diodes by Yangjie from Xon Electronics and enjoy:

• 100% Genuine Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure Online Ordering

Your trusted source for circuit protection components worldwide.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What type of device is SMBJ15CA?
It is a bidirectional TVS diode for surge and ESD suppression.

Q2. What is the power rating?
It can handle up to 600W peak pulse power.

Q3. Where is it used?
Ideal for telecom, industrial, LED drivers, automotive, and power supply applications requiring circuit protection.

Q4. Is it RoHS compliant?
Yes, the SMBJ15CA is RoHS and lead-free compliant.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships worldwide to USA, India, Australia, Europe, and more.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Yangjie provide reliable surge absorption, ultra-fast clamping, and a compact design for high-performance circuit protection. Available now at Xon Electronics, with fast global shipping to the USA, India, Australia, Europe, and other regions.
