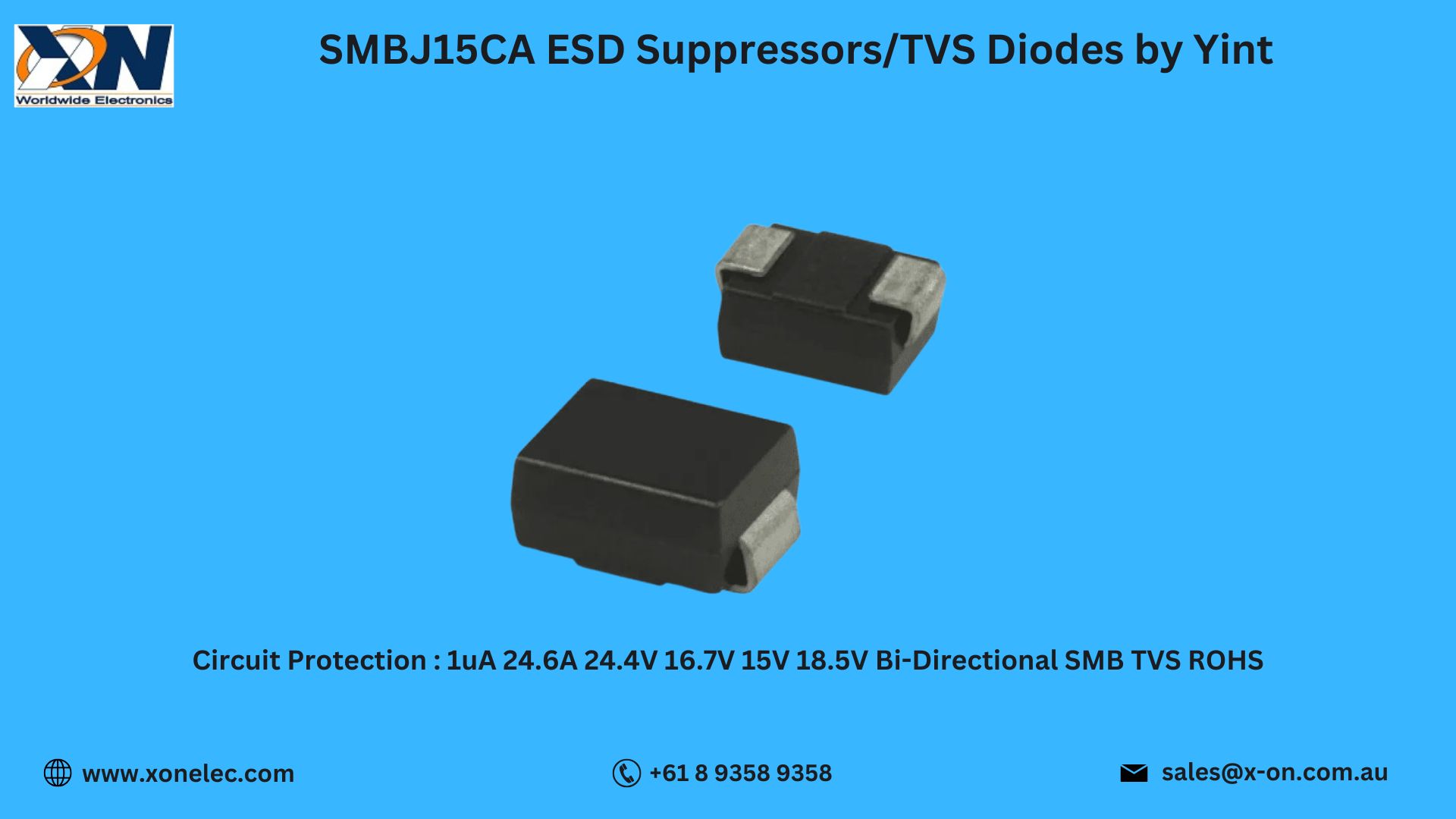

SMBJ15CA ESD Suppressors by Yint – Reliable Circuit Protection for Electronics

The ESD Suppressors/TVS Diodes SMBJ15CA by Yint are high-performance bidirectional TVS diodes designed to protect sensitive electronic circuits from electrostatic discharge (ESD) and transient voltage surges. With a 600W peak pulse power rating and ultra-fast response time, the SMBJ15CA is ideal for industrial, telecom, automotive, and consumer applications requiring robust circuit protection.

This blog highlights the technical specifications, key features, applications, wiring overview, and why you should order globally from Xon Electronics, with delivery to the USA, India, Australia, Europe, and other countries.

1. Technical Specifications of SMBJ15CA

• Manufacturer: Yint

• Part Number: SMBJ15CA

• Type: ESD Suppressors/TVS Diodes

• Polarity: Bidirectional

• Stand-off Voltage: 15V

• Breakdown Voltage: 16.7V (typical)

• Clamping Voltage: 24.4V @ 25A

• Peak Pulse Power: 600W (10/1000µs waveform)

• Response Time: <1 picosecond

• Package: DO-214AA (SMB)

• Category: Circuit Protection, ESD Suppressors/TVS Diodes

The SMBJ15CA is compact, efficient, and reliable for modern circuit protection applications.

2. Key Features of SMBJ15CA

• 600W Peak Pulse Power to handle high-energy surges

• Bidirectional Protection for AC and DC applications

• Ultra-Fast Response Time (<1 ps) for instant clamping

• Low Clamping Voltage to safeguard sensitive components

• Compact SMB Package suitable for space-saving designs

• RoHS and Lead-Free Compliant

The SMBJ15CA ESD Suppressors/TVS Diodes are designed for long-lasting and efficient circuit protection.

3. Applications of SMBJ15CA

The SMBJ15CA is commonly used in:

• Industrial Automation and Control Systems

• Telecom and Networking Devices

• LED Drivers and Display Panels

• Automotive Electronics and Infotainment Systems

• Power Supplies and Embedded Devices

• Consumer Electronics

It offers dependable circuit protection across industries.

4. Wiring and Connection Overview

Typical wiring configuration for SMBJ15CA:

[Signal Line] ——|>|—— GND
                  SMBJ15CA
[Signal Line] ——|<|—— GND

This arrangement ensures immediate clamping to protect sensitive electronics.

5. Use Case Scenario: Surge Protection in Power Supplies

Scenario: A manufacturer of industrial power supplies experienced failures due to repetitive voltage spikes.

Problem: The existing diodes failed under high transient surges.

Solution: Integrating SMBJ15CA by Yint provided superior surge endurance and better system reliability.

Result: Fewer failures, improved system uptime, and reduced maintenance costs.

6. Download Datasheet for SMBJ15CA

Download SMBJ15CA Datasheet from Xon Electronics

7. Why Buy from Xon Electronics?

Order SMBJ15CA ESD Suppressors/TVS Diodes by Yint from Xon Electronics and get:

• 100% Genuine Components
• Worldwide Shipping – USA, India, Australia, Europe & more
• Bulk Pricing for OEMs and Assemblers
• Expert Technical Support
• Secure & Hassle-Free Ordering

Your reliable source for circuit protection components globally.

8. FAQs – SMBJ15CA ESD Suppressors/TVS Diodes

Q1. What is SMBJ15CA used for?
It is a bidirectional TVS diode designed for surge and ESD suppression.

Q2. What is the power rating?
It can handle up to 600W of peak pulse power.

Q3. Where can it be applied?
It is ideal for telecom, industrial, automotive, LED, and power supply systems needing circuit protection.

Q4. Is it RoHS compliant?
Yes, it is RoHS and lead-free certified.

Q5. Can it be purchased globally?
Yes, Xon Electronics ships worldwide to USA, India, Australia, Europe, and other regions.

Conclusion

The SMBJ15CA ESD Suppressors/TVS Diodes by Yint provide fast, efficient, and compact surge protection for sensitive electronics. With superior power handling and reliability, they are an excellent choice for circuit protection. Available now at Xon Electronics, with worldwide delivery to the USA, India, Australia, Europe, and more.
