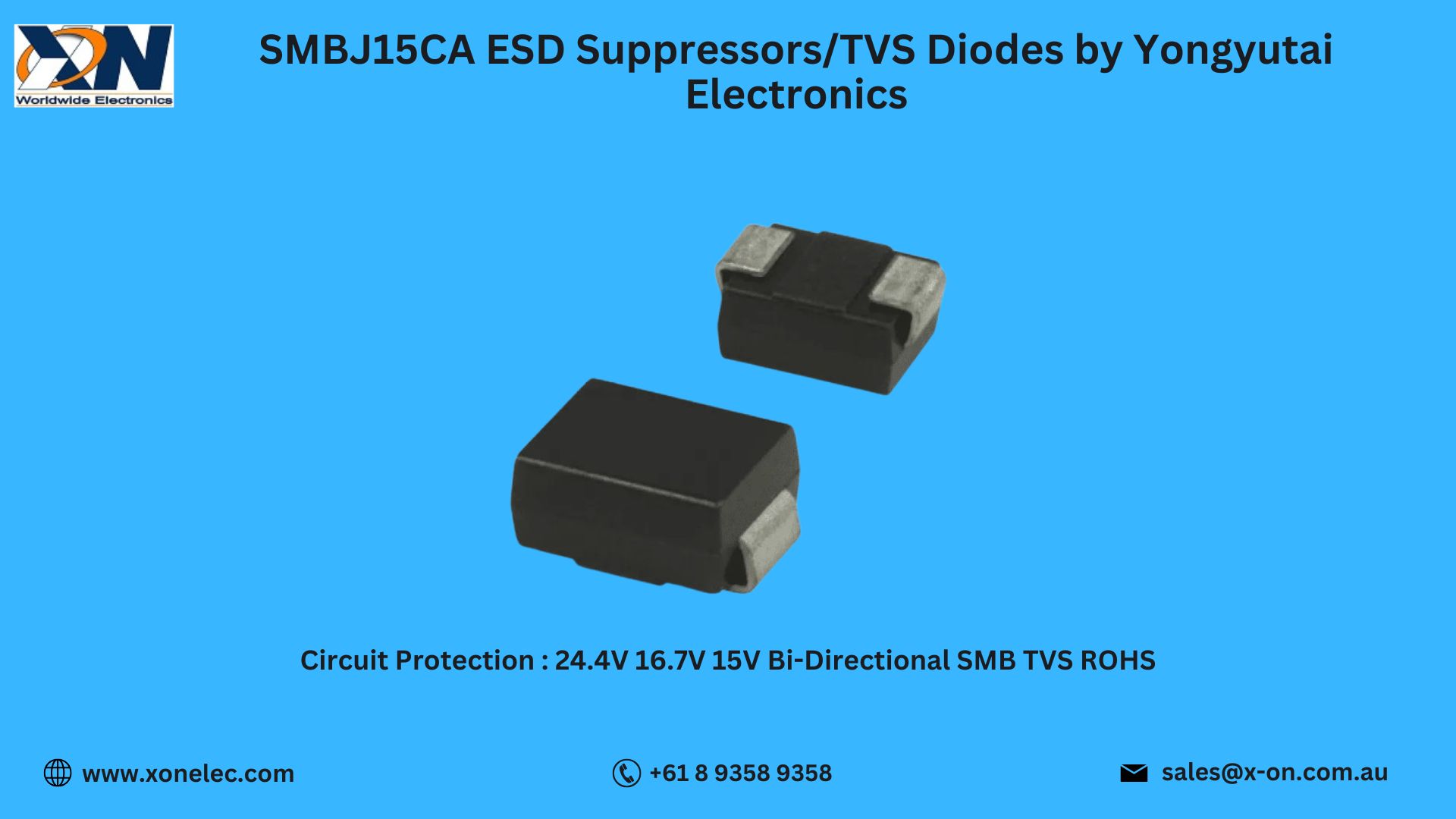

SMBJ15CA ESD Suppressors/TVS Diodes by Yongyutai Electronics
Protect your sensitive circuits with the high-performance ESD Suppressors/TVS Diodes SMBJ15CA by Yongyutai Electronics. These rugged components are designed to defend electronic systems from transient voltage spikes, making them a crucial part of any reliable circuit protection strategy. Whether you're developing consumer electronics, industrial controls, or automotive systems, this diode offers dependable protection in compact form.
Technical Specifications of SMBJ15CA
-
Manufacturer: Yongyutai Electronics
-
Part Number: SMBJ15CA
-
Component Type: ESD Suppressors/TVS Diodes
-
Reverse Standoff Voltage (VR): 15V
-
Breakdown Voltage: 16.7V (min)
-
Clamping Voltage: 24.4V (max)
-
Peak Pulse Power Dissipation: 600W (10/1000µs)
-
Polarity: Bidirectional
-
Mounting Type: Surface Mount (SMB Package)
-
Compliance: RoHS, REACH
Key Features
-
Robust 600W surge handling capability
-
Bidirectional clamping for AC and DC protection
-
Quick response time for effective ESD suppression
-
Compact and easy-to-mount DO-214AA (SMB) package
-
Fully compliant with global environmental standards
SMBJ15CA ESD Suppressors/TVS Diodes are an integral component in any high-reliability circuit protection system.
Applications
-
USB, HDMI, and Ethernet protection
-
Consumer electronics
-
Industrial equipment
-
Automotive electronics
-
Communication and power lines
With its high surge protection and compact form factor, the SMBJ15CA ESD Suppressors/TVS Diodes by Yongyutai Electronics are widely used across a range of demanding industries.
Wiring and Connection Overview
-
Surface-mount soldering on PCB
-
Bidirectional design connects across signal lines
-
Integrated into ESD shielding circuits for comprehensive protection
Use Case Example
A global smart meter manufacturer integrated the SMBJ15CA ESD Suppressors/TVS Diodes in their product line to ensure durability in lightning-prone and high-interference areas. The result: a significant drop in field failure rates and improved consumer confidence.
Datasheet Download
Download the SMBJ15CA Datasheet to explore complete performance parameters and packaging details.
Why Buy from X-ON Electronics?
-
We ship worldwide including USA, India, Australia, Europe, and beyond
-
Genuine and quality-tested ESD Suppressors/TVS Diodes
-
Competitive pricing and volume discounts available
-
Fast delivery and excellent customer support
FAQs – SMBJ15CA by Yongyutai Electronics
Q1: Can I use this for automotive circuits?
Yes, the SMBJ15CA is suitable for automotive-grade ESD protection.
Q2: Is it compliant with RoHS?
Absolutely. It adheres to both RoHS and REACH directives.
Q3: What packaging does it come in?
It’s housed in a compact DO-214AA (SMB) surface-mount package.
Q4: How many units are available in stock?
Check live stock availability on xonelec.com.
Conclusion
The SMBJ15CA ESD Suppressors/TVS Diodes by Yongyutai Electronics provide a reliable, compact, and cost-effective solution for transient voltage suppression. With high peak power capacity and fast response, these components safeguard your systems from damaging surges. Available globally at xonelec.com, they are the ideal choice for modern circuit protection in today’s dynamic electronics market.
