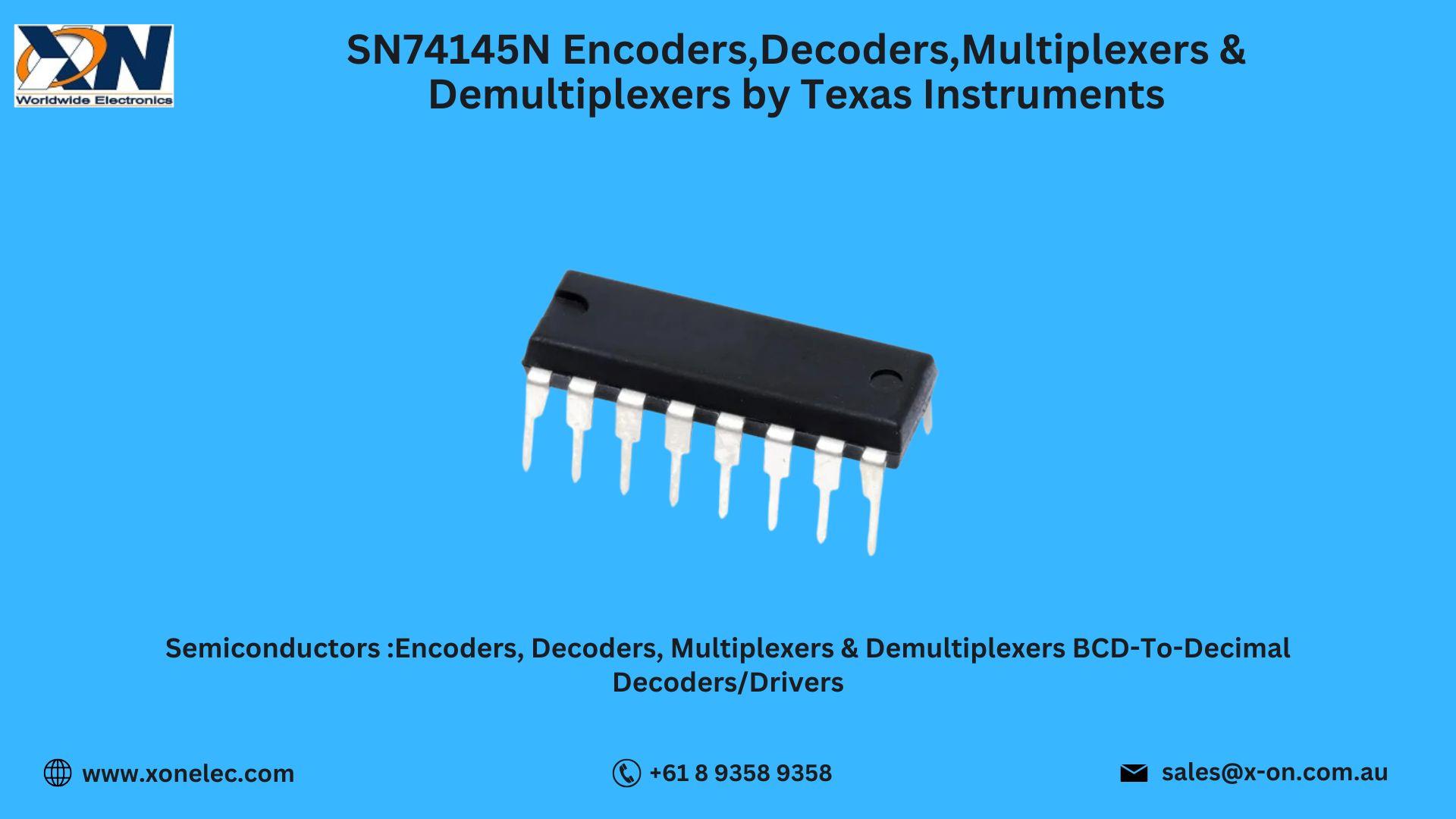

SN74145N Encoders, Decoders, Multiplexers & Demultiplexers by Texas Instruments – Buy Online at XON
The Encoders, Decoders, Multiplexers & Demultiplexers SN74145N by Texas Instruments are robust BCD-to-decimal decoders and drivers. These ICs belong to the Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers family, offering reliable performance for logic and control systems.
1. Technical Specifications of SN74145N
-
Manufacturer: Texas Instruments
-
Part Number: SN74145N
-
Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
Function: BCD-to-decimal decoder/driver
-
Logic Family: TTL
-
Outputs: Active low, open-collector
-
Supply Voltage: 4.75V to 5.25V
-
Package: DIP-16
-
Temperature Range: 0°C to +70°C
2. Key Features of SN74145N
-
Converts 4-bit BCD inputs to 10-line decimal outputs
-
Belongs to the Encoders, Decoders, Multiplexers & Demultiplexers family of Logic ICs
-
Open-collector outputs capable of driving lamps or relays
-
TTL-compatible inputs for reliable interfacing
-
Versatile use in digital logic designs
3. Applications of SN74145N
-
Driving LED or lamp displays
-
Digital system logic expansion
-
Industrial automation systems
-
Binary-to-decimal conversion circuits
-
Signal distribution and control systems
4. Wiring and Connection Overview
-
Inputs: 4 BCD inputs (A, B, C, D)
-
Outputs: 10 active-low decimal outputs
-
Power Supply: Standard 5V TTL logic supply
-
Package: 16-pin DIP for easy prototyping
5. Use Case Example – Display Driver
Challenge: Need for a reliable binary-coded decimal to decimal display driver.
Solution: The SN74145N Encoders, Decoders, Multiplexers & Demultiplexers by Texas Instruments convert BCD signals into decimal form.
Result: Simplifies driving decimal-based displays in industrial and consumer electronics.
6. Download Datasheet for SN74145N
[Download the SN74145N Datasheet at XON Electronics]
7. Why Buy from XON Electronics
-
Trusted distributor of Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
Genuine Texas Instruments products with global warranty
-
Worldwide delivery: USA, India, Australia, Europe & more
-
Competitive pricing with bulk availability
8. FAQs – SN74145N
Q1: What function does the SN74145N perform?
A: It decodes BCD inputs into decimal outputs.
Q2: What package type is available?
A: Standard DIP-16 package.
Q3: Can SN74145N drive external devices?
A: Yes, its open-collector outputs can drive lamps, LEDs, and relays.
Q4: What is the operating voltage range?
A: 4.75V to 5.25V (standard TTL supply).
Q5: Where can I buy this IC?
A: You can Buy Online at XON with fast global shipping.
Conclusion
The SN74145N Encoders, Decoders, Multiplexers & Demultiplexers by Texas Instruments are reliable ICs for display drivers, automation, and logic expansion. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers family, they are ideal for industrial and consumer applications. Order today and Buy Online at XON.
