Introduction

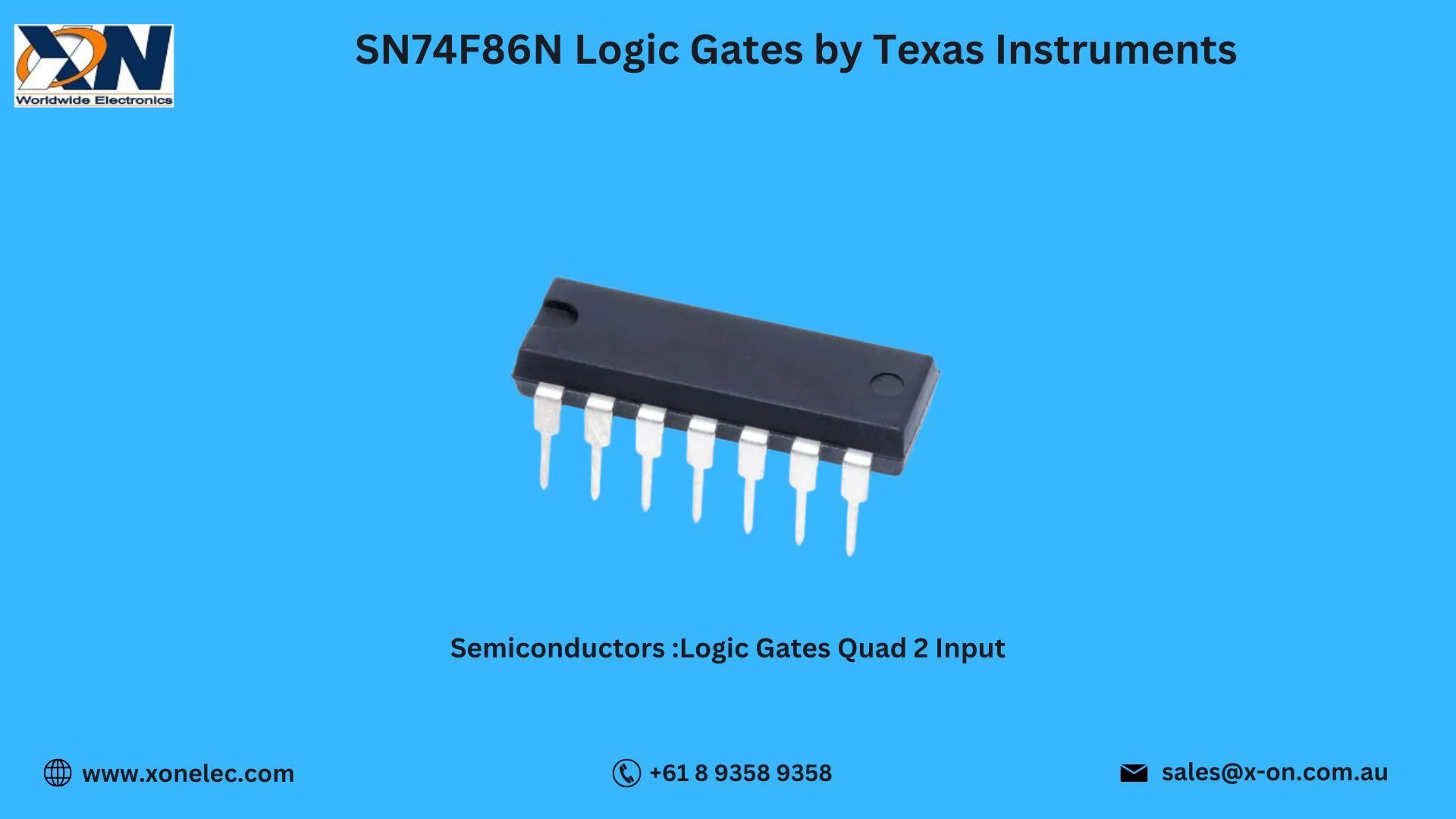

The Logic Gates  SN74F86N by Texas Instruments are high-performance XOR logic gates widely used in digital circuits. Designed for speed and reliability, these Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates offer robust performance in computing, signal processing, and embedded systems. With their fast switching speeds and low propagation delays, these devices are ideal for critical digital applications.

Technical Specifications

• Manufacturer: Texas Instruments

• Product Type: Logic ICs – XOR Logic Gates

• Operating Voltage: 4.5V to 5.5V

• Propagation Delay: ~3 ns typical

• Package: 14-Pin PDIP

• Logic Family: TTL

• Power Dissipation: Low

Key Features

• High-speed TTL logic design.

• Reliable XOR gate function for digital applications.

• Compatible with standard TTL logic families.

• Wide operating temperature range for industrial use.

• Compact DIP package for easy integration.

Applications

The SN74F86N Logic Gates are used in a wide range of digital electronic applications, including:

• Arithmetic circuits and adders.

• Parity generation and checking systems.

• Digital communication equipment.

• Control systems and microprocessor interfacing.

• Signal comparison logic.

Circuit Diagram

The SN74F86N implements the XOR function. When both inputs are the same, the output is low; when inputs differ, the output is high. This makes it a key element in arithmetic and parity logic designs.

Use Cases

• Data transmission systems requiring error detection.

• Computer arithmetic logic units (ALUs).

• Industrial automation equipment.

• Digital counters and registers.

Datasheet Download Information

The detailed datasheet for the SN74F86N Logic Gates can be downloaded directly from Texas Instruments or authorized distributors for complete electrical characteristics and design guidelines.

Purchasing Information

You can purchase the SN74F86N Logic Gates by Texas Instruments globally through X-ON Electronics. Whether you are in the USA, India, Australia, Europe, or other countries, X-ON ensures fast delivery and competitive pricing.

Conclusion

The SN74F86N Logic Gates by Texas Instruments stand out as reliable, fast, and efficient Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates. With their robust performance, they are an essential choice for digital designers and engineers worldwide.
