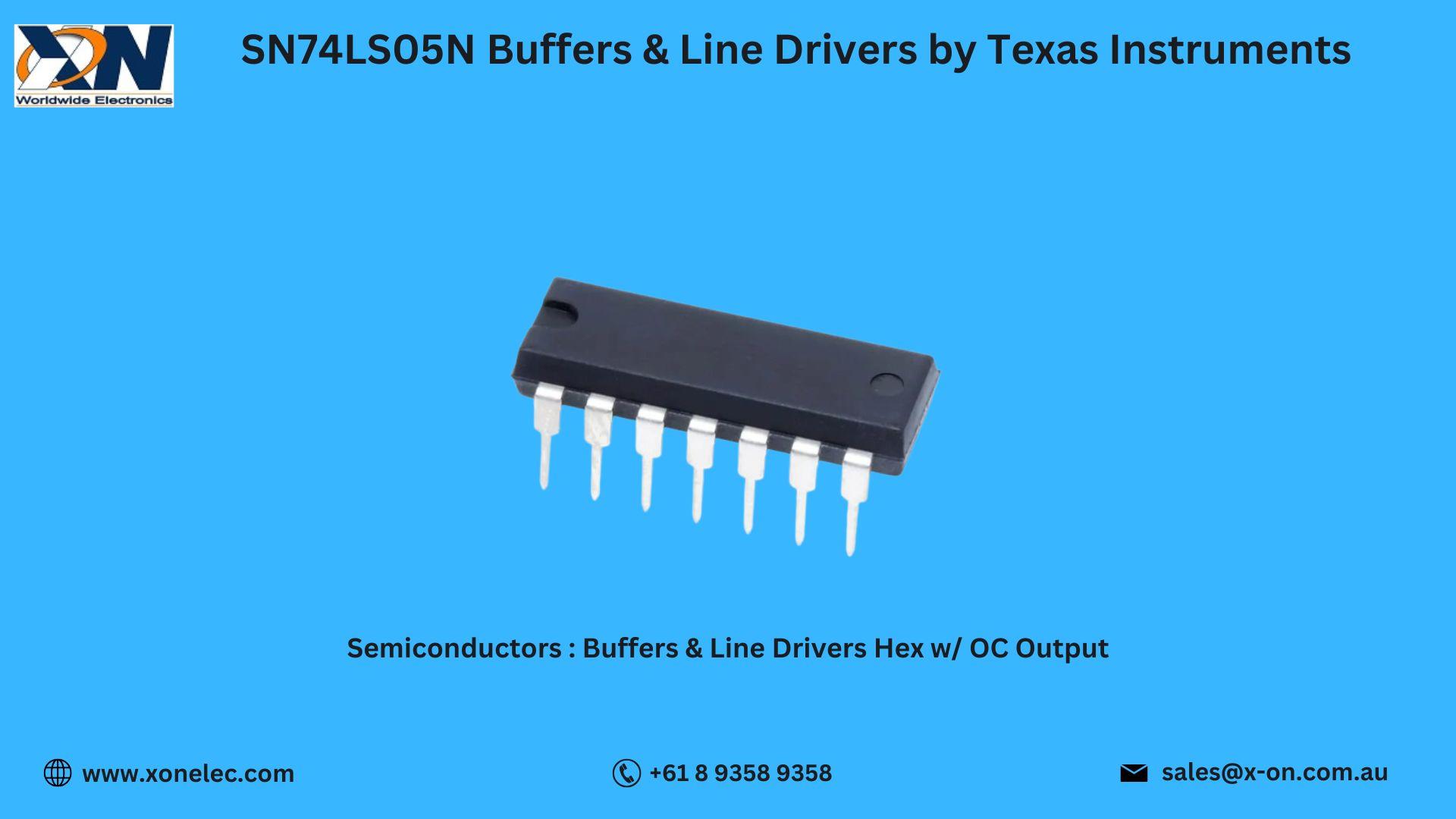

SN74LS05N Buffers & Line Drivers by Texas Instruments – Buy Online at XON
The Buffers & Line Drivers SN74LS05N by Texas Instruments are high-performance ICs designed to provide reliable signal buffering and driving capabilities in digital circuits. Part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers family, these ICs ensure stable signal transmission and effective logic level interfacing in a wide range of applications.
1. Technical Specifications of SN74LS05N
-
Manufacturer: Texas Instruments
-
Part Number: SN74LS05N
-
Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers
-
Function: Hex open-collector buffer/line driver
-
Logic Family: Low-Power Schottky TTL (LS-TTL)
-
Voltage Supply: 4.75V – 5.25V (Standard TTL)
-
Package: PDIP-14 through-hole
-
Operating Temperature Range: 0°C to +70°C
2. Key Features of SN74LS05N
-
Hex independent open-collector buffers
-
High-speed logic performance suitable for TTL applications
-
Belongs to the Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers family
-
Excellent for driving high-current loads and interfacing with different logic levels
-
PDIP-14 package allows easy prototyping and soldering
3. Applications of SN74LS05N
-
Data bus driving
-
Signal buffering in industrial and embedded systems
-
TTL logic level conversion
-
Relay and LED driving circuits
-
Any application requiring Buffers & Line Drivers for stable signal handling
4. Wiring and Connection Overview
-
Inputs: 6 independent logic inputs
-
Outputs: 6 open-collector outputs
-
Package Style: PDIP-14 through-hole for simple PCB integration
-
Power Supply: Typical +5V TTL voltage
5. Use Case Example – Industrial Signal Buffering
Challenge: A control system needed robust signal buffering to interface between low-power logic and high-current relay circuits.
Solution: The SN74LS05N offered reliable open-collector outputs capable of driving relay coils.
Result: Stable operation and simplified circuit design with fewer external components.
6. Download Datasheet for SN74LS05N
[Download the SN74LS05N Datasheet at XON Electronics]
7. Why Buy from XON Electronics?
-
Comprehensive stock of Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers
-
100% original Texas Instruments products
-
Fast global shipping to USA, India, Australia, Europe & more
-
Competitive prices for bulk or single orders
8. FAQs – SN74LS05N
Q1: What is the primary function of SN74LS05N?
A: Provides hex open-collector buffer and line driving functionality.
Q2: What logic family does it belong to?
A: Low-Power Schottky TTL (LS-TTL).
Q3: What is the package type?
A: PDIP-14 through-hole package.
Q4: Can it drive high-current loads?
A: Yes, due to its open-collector output design.
Q5: Where can I purchase it?
A: You can Buy Online at XON with worldwide shipping available.
Conclusion
The SN74LS05N Buffers & Line Drivers by Texas Instruments are ideal for applications requiring robust signal buffering and driving capabilities. As a reliable member of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers family, these ICs offer flexibility, high-speed operation, and ease of integration. Order today and Buy Online at XON.
