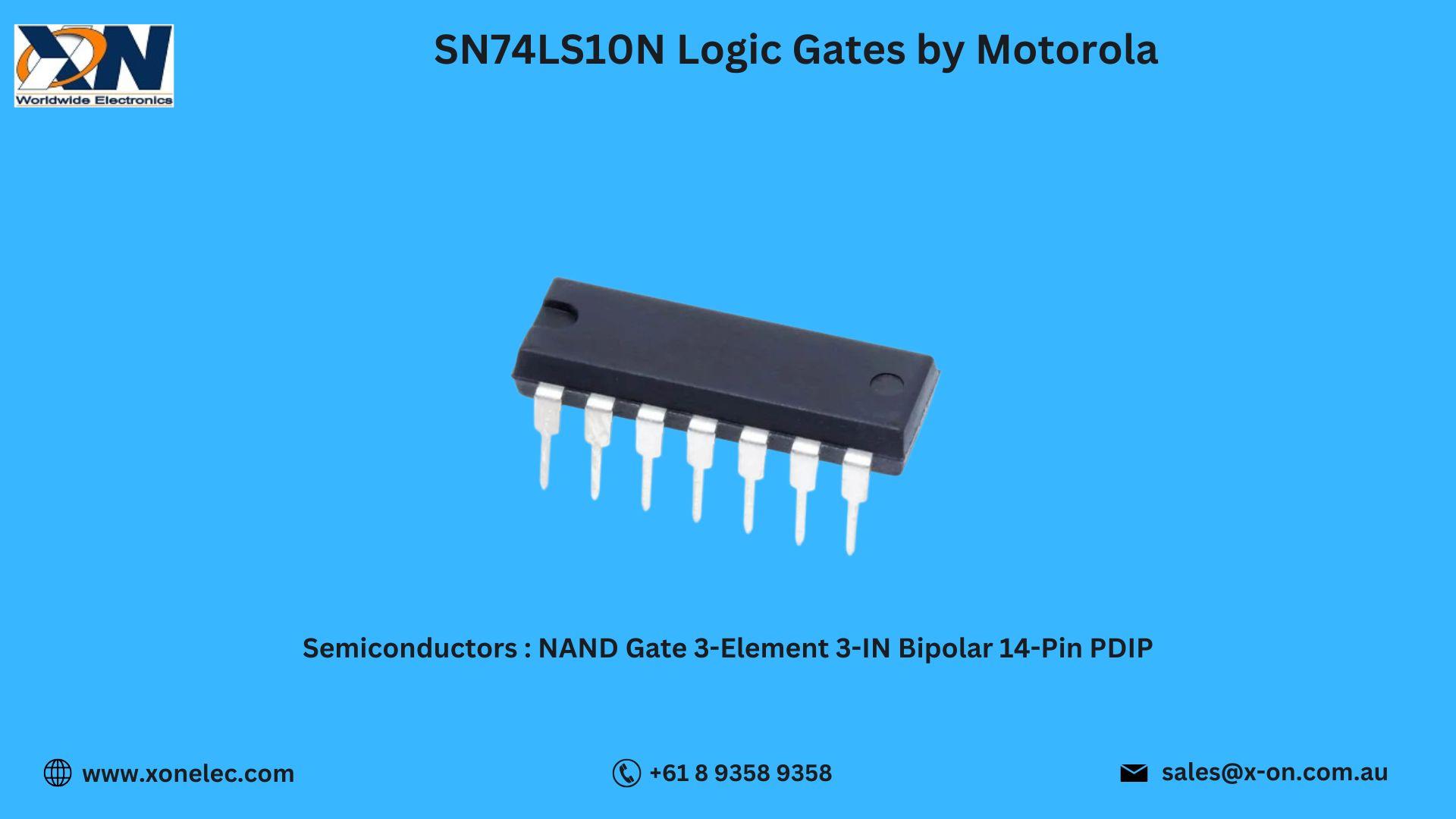

The Logic Gates SN74LS10N by Motorola are triple 3-input NAND gates designed for fast switching and reliable logic functions. As part of the Semiconductors, Integrated Circuits - ICs, Logic Gates family, these devices are widely used in digital systems for implementing combinational logic and control applications.

1. Technical Specifications of SN74LS10N

• Manufacturer: Motorola

• Part Number: SN74LS10N

• Category: Semiconductors, Integrated Circuits - ICs, Logic Gates

• Function: Triple 3-input NAND gate

• Logic Family: TTL

• Package Type: DIP-14 (Through-hole)

• Supply Voltage Range: 4.75V – 5.25V

• Operating Temperature Range: 0°C to +70°C

2. Key Features of SN74LS10N

• Triple independent 3-input NAND gates

• Standard TTL-compatible logic levels

• Belongs to the Semiconductors, Integrated Circuits - ICs, Logic Gates group

• High noise immunity and reliable switching

• Low power consumption with robust design

3. Applications of SN74LS10N

• Combinational logic design

• Digital system control and timing

• Microprocessor-based designs

• Industrial automation logic circuits

• Consumer electronics requiring NAND operations

4. Wiring and Connection Overview

• Inputs: Three inputs per gate (total 9 inputs across 3 gates)

• Outputs: Three NAND outputs

• Power Supply: +5V TTL operation

• Ground Pin: Standard GND reference

5. Use Case Example – Control Logic in Automation

Challenge: An industrial automation system required reliable NAND logic gates.
Solution: The SN74LS10N Logic Gates were deployed for decision-making circuits.
Result: Improved system reliability and robust signal processing.

6. Download Datasheet for SN74LS10N

[Download the SN74LS10N Datasheet at XON Electronics]

7. Also Available from Other Manufacturers

• Texas Instruments – Offers high-performance Semiconductors, Integrated Circuits - ICs, Logic Gates suitable for a wide range of digital applications.

8. Why Buy from XON Electronics?

• Extensive catalog of Semiconductors, Integrated Circuits - ICs, Logic Gates

• 100% genuine Motorola and Texas Instruments parts

• Fast global delivery to USA, India, Australia, Europe & more

• Competitive pricing with reliable sourcing

9. FAQs – SN74LS10N

Q1: What logic function does the SN74LS10N provide?
A: It offers three independent 3-input NAND gates.

Q2: Is it TTL-compatible?
A: Yes, it operates within the standard TTL logic family.

Q3: What package type is it available in?
A: DIP-14 through-hole package.

Q4: Where is it commonly used?
A: In combinational logic, automation, and digital systems.

Q5: Where can I buy it?
A: You can Buy Online at XON with fast worldwide shipping.

Conclusion

The SN74LS10N Logic Gates by Motorola are versatile and reliable NAND gates essential for digital logic design. As part of the Semiconductors, Integrated Circuits - ICs, Logic Gates family, they serve industrial, automation, and consumer electronics effectively. Order today and Buy Online at XON.
