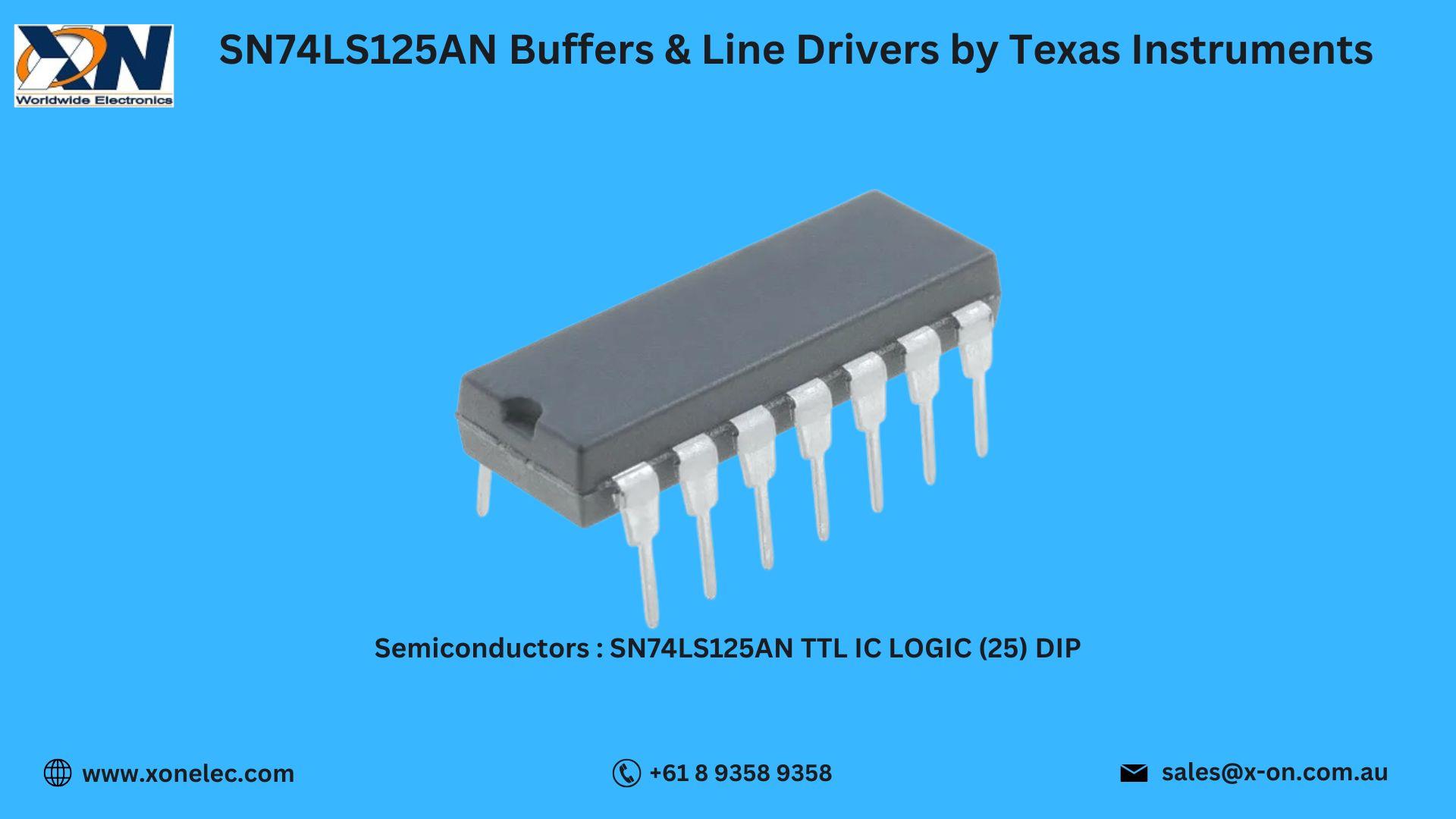

SN74LS125AN Buffers & Line Drivers by Texas Instruments – Buy Online at XON
The Buffers & Line Drivers SN74LS125AN by Texas Instruments are quad bus buffer gates with 3-state outputs, designed for reliable data transmission in digital systems. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers family, they are widely used in computers, communication devices, and industrial automation.
1. Technical Specifications of SN74LS125AN
-
Manufacturer: Texas Instruments
-
Part Number: SN74LS125AN
-
Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers
-
Function: Quad bus buffer with 3-state outputs
-
Logic Family: TTL
-
Package Type: DIP-14 (Through-hole)
-
Supply Voltage Range: 4.75V – 5.25V
-
Operating Temperature Range: 0°C to +70°C
2. Key Features of SN74LS125AN
-
Four independent bus buffer gates
-
3-state outputs for bus-oriented applications
-
Belongs to Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers
-
TTL-compatible with strong drive capability
-
Low power consumption and high-speed switching
3. Applications of SN74LS125AN
-
Data bus driving in microprocessor systems
-
Industrial automation and control logic
-
Memory addressing and data buffering
-
Consumer electronics requiring signal isolation
-
Communication and networking hardware
4. Wiring and Connection Overview
-
Inputs: Four independent control and data inputs
-
Outputs: Four 3-state outputs for flexible bus interfacing
-
Power Supply: Standard +5V DC
-
Ground Pin: Common GND
5. Use Case Example – Microprocessor Bus Buffer
Challenge: A microprocessor-based system needed stable bus driving with minimal loading.
Solution: The SN74LS125AN Buffers & Line Drivers were implemented to buffer signals.
Result: Enhanced signal integrity and reliable system performance.
6. Download Datasheet for SN74LS125AN
[Download the SN74LS125AN Datasheet at XON Electronics]
7. Why Buy from XON Electronics?
-
Large stock of Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers
-
100% original Texas Instruments products
-
Worldwide delivery to USA, India, Australia, Europe & beyond
-
Trusted sourcing with competitive pricing
8. FAQs – SN74LS125AN
Q1: What function does the SN74LS125AN serve?
A: It is a quad bus buffer with 3-state outputs.
Q2: What package type is it available in?
A: DIP-14 through-hole packaging.
Q3: Is it TTL-compatible?
A: Yes, it belongs to the TTL logic family.
Q4: Can it be used in microprocessor systems?
A: Yes, it is ideal for bus driving and data buffering.
Q5: Where can I buy it?
A: You can Buy Online at XON with fast international shipping.
Conclusion
The SN74LS125AN Buffers & Line Drivers by Texas Instruments deliver robust performance for bus driving and signal buffering. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Buffers & Line Drivers, they ensure reliable signal handling in microprocessor systems, automation, and communication hardware. Order today and Buy Online at XON.
