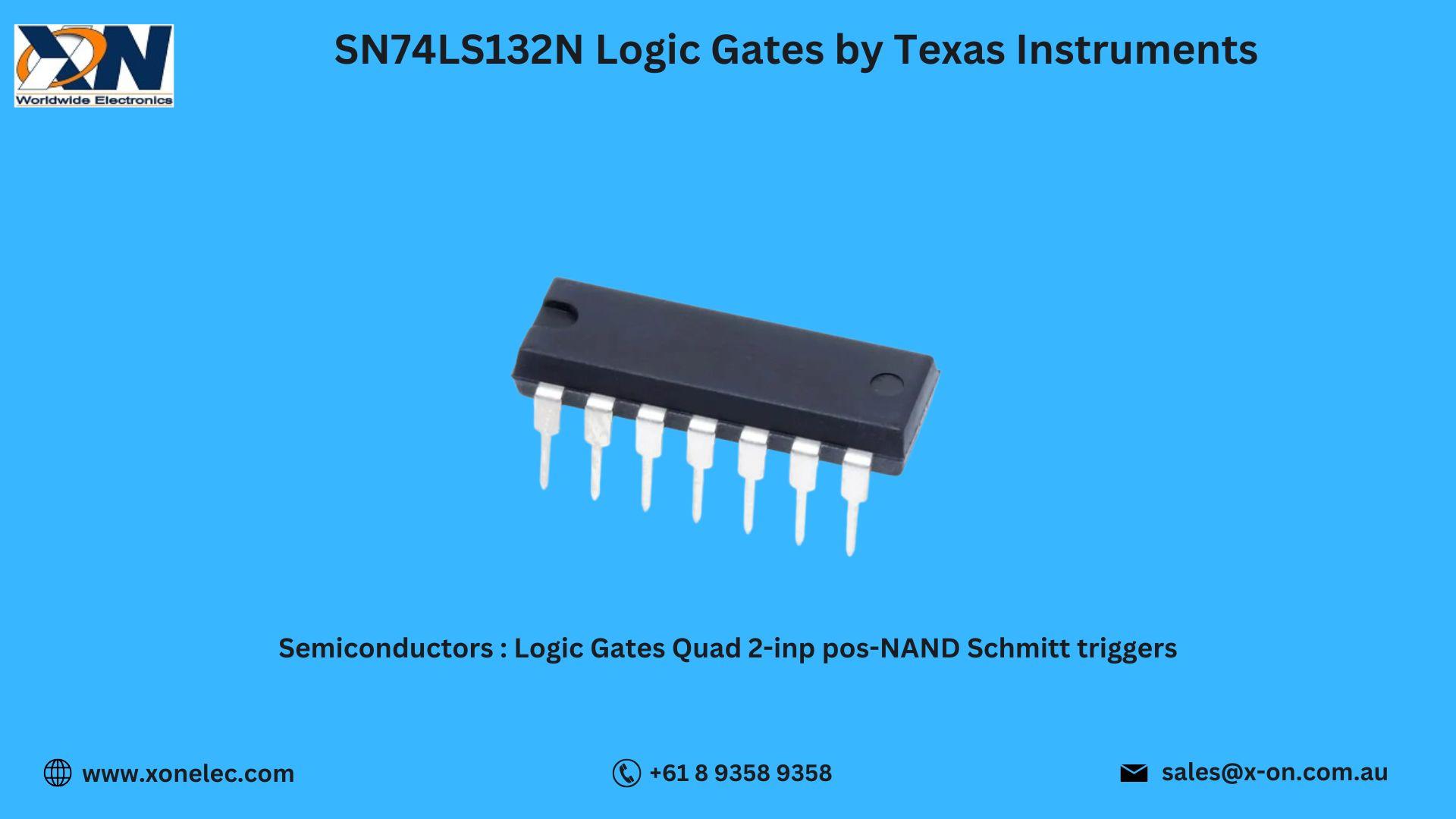

The Logic Gates SN74LS132N by Texas Instruments are quad 2-input NAND gates with Schmitt-trigger inputs, ensuring noise immunity and clean signal processing. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates family, they provide reliable switching for industrial and digital applications.

1. Technical Specifications of SN74LS132N

• Manufacturer: Texas Instruments

• Part Number: SN74LS132N

• Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates

• Logic Family: LS-TTL

• Function: Quad 2-input NAND gates with Schmitt-trigger inputs

• Supply Voltage Range: 4.75V – 5.25V

• Package Type: DIP-14 (through-hole)

• Operating Temperature Range: 0°C to +70°C

2. Key Features of SN74LS132N

• Four independent NAND gates in one package

• Schmitt-trigger inputs for high noise immunity

• Belongs to Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates

• TTL-compatible switching performance

• Reliable operation for digital and industrial designs

3. Applications of SN74LS132N

• Signal conditioning in noisy environments

• Digital computing and microprocessor systems

• Industrial automation and process control

• Consumer electronics requiring logic operations

• Communication hardware designs

4. Wiring and Connection Overview

• Inputs: Four 2-input NAND gates with Schmitt-trigger inputs

• Outputs: Four TTL-compatible logic outputs

• Power Supply: Standard +5V DC

• Package: DIP-14 for easy integration in prototyping and final design

5. Use Case Example – Noise Filtering in Digital Systems

Challenge: A microcontroller-based circuit was affected by input noise.
Solution: The SN74LS132N Logic Gates with Schmitt-trigger inputs were used for stable signal processing.
Result: Improved noise immunity and reliable system output.

6. Download Datasheet for SN74LS132N

[Download the SN74LS132N Datasheet at XON Electronics]

7. Also Available from Other Manufacturers

• Motorola offers alternative Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates with similar specifications.

8. Why Buy from XON Electronics?

• Wide range of Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates

• Genuine Texas Instruments parts available in stock

• Worldwide delivery to USA, India, Australia, Europe & more

• Trusted supplier with competitive prices

9. FAQs – SN74LS132N

Q1: What logic function does SN74LS132N perform?
A: It provides four 2-input NAND gates with Schmitt-trigger inputs.

Q2: Is it TTL-compatible?
A: Yes, it belongs to the LS-TTL logic family.

Q3: What package type is available?
A: DIP-14 for through-hole mounting.

Q4: Can it be used in noisy environments?
A: Yes, Schmitt-trigger inputs enhance noise immunity.

Q5: Where can I buy it?
A: You can Buy Online at XON with global shipping.

Conclusion

The SN74LS132N Logic Gates by Texas Instruments are robust and efficient digital ICs that ensure noise-free and reliable switching. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates, they are ideal for computing, industrial automation, and consumer electronics. Get genuine parts today and Buy Online at XON.
