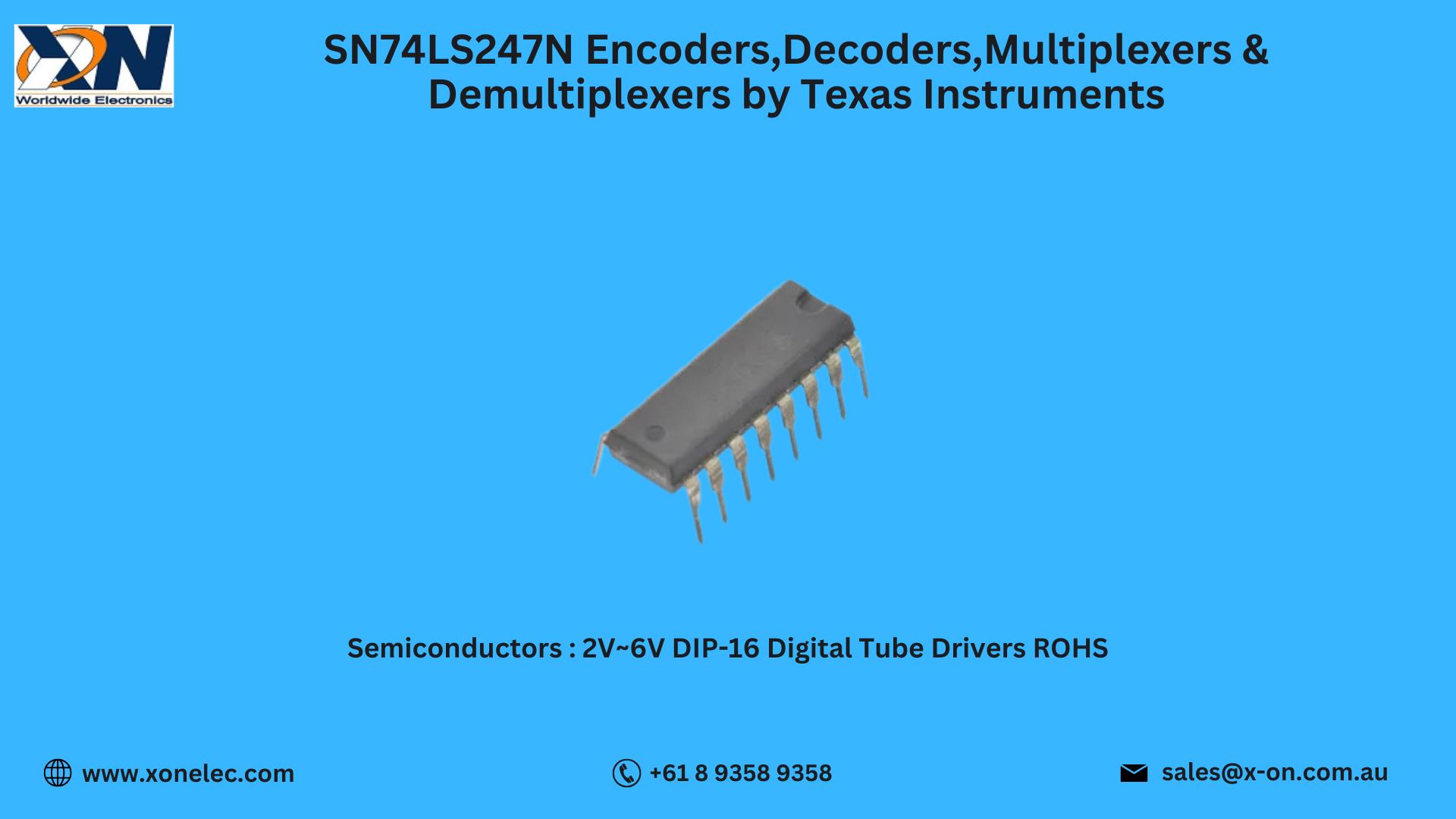

SN74LS247N Encoders, Decoders, Multiplexers & Demultiplexers by Texas Instruments – Buy Online at XON
The Encoders, Decoders, Multiplexers & Demultiplexers SN74LS247N by Texas Instruments are highly reliable digital logic ICs designed for decoding BCD inputs into seven-segment LED display outputs. Belonging to the Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers family, these ICs offer superior performance in a wide range of electronic applications.
1. Technical Specifications of SN74LS247N
-
Manufacturer: Texas Instruments
-
Part Number: SN74LS247N
-
Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
Function: BCD to seven-segment decoder/driver
-
Outputs: Open collector for LED driving
-
Package Type: DIP-16
-
Supply Voltage: 4.75V – 5.25V
-
Operating Temperature Range: 0°C to +70°C
2. Key Features of SN74LS247N
-
Designed for Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers applications
-
BCD to seven-segment LED decoder/driver
-
Lamp test, ripple-blanking, and input blanking features
-
Low power consumption with TTL compatibility
-
Flexible open-collector outputs for display driving
3. Applications of SN74LS247N
-
Digital display systems for counters and clocks
-
Embedded electronics with seven-segment display needs
-
Calculators and consumer electronics
-
Multiplexed LED display panels
-
Education kits and prototyping circuits
4. Wiring and Connection Overview
-
Inputs: 4-bit BCD inputs (A, B, C, D)
-
Outputs: Seven-segment outputs (a–g)
-
Controls: Ripple-blanking input/output, lamp test
-
Designed to connect directly to LED displays
5. Use Case Example – Digital Counter
Challenge: A developer needed a compact IC to drive LED displays for a counter.
Solution: The SN74LS247N simplified the design by converting BCD outputs to seven-segment displays.
Result: Reduced circuit complexity and improved performance.
6. Download Datasheet for SN74LS247N
[Download the SN74LS247N Datasheet at XON Electronics]
7. Also available from other manufacturers
The SN74LS247N Encoders, Decoders, Multiplexers & Demultiplexers are also available from ON Semiconductor, offering more sourcing flexibility for design engineers.
8. Why Buy from XON Electronics?
-
Large inventory of Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
100% genuine Texas Instruments and other brands
-
Best global pricing with express shipping
-
Delivery available in USA, India, Australia, Europe & more
9. FAQs – SN74LS247N
Q1: What is the main function of the SN74LS247N?
A: It converts BCD inputs into outputs for driving seven-segment displays.
Q2: Is it suitable for LED displays?
A: Yes, it is designed for common-anode LED seven-segment displays.
Q3: What type of package does it come in?
A: Standard DIP-16 package.
Q4: Does it support ripple-blanking?
A: Yes, it supports ripple-blanking and lamp test functions.
Q5: Where can I purchase it?
A: You can Buy Online at XON with worldwide delivery.
Conclusion
The SN74LS247N Encoders, Decoders, Multiplexers & Demultiplexers by Texas Instruments provide an efficient solution for seven-segment LED driving. Classified under Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers, they are reliable and cost-effective for modern electronic projects. Ensure the best for your design and Buy Online at XON.
