The Encoders, Decoders, Multiplexers & Demultiplexers SN74LS258BN by ON Semiconductor is a quad 2-input multiplexer with 3-state outputs, optimized for efficient data routing in digital circuits. Belonging to the Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers family, this device is widely used in microprocessor-based designs and signal management systems.
1. Technical Specifications of SN74LS258BN
-
Manufacturer: ON Semiconductor
-
Part Number: SN74LS258BN
-
Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
Function: Quad 2-input multiplexer with 3-state outputs
-

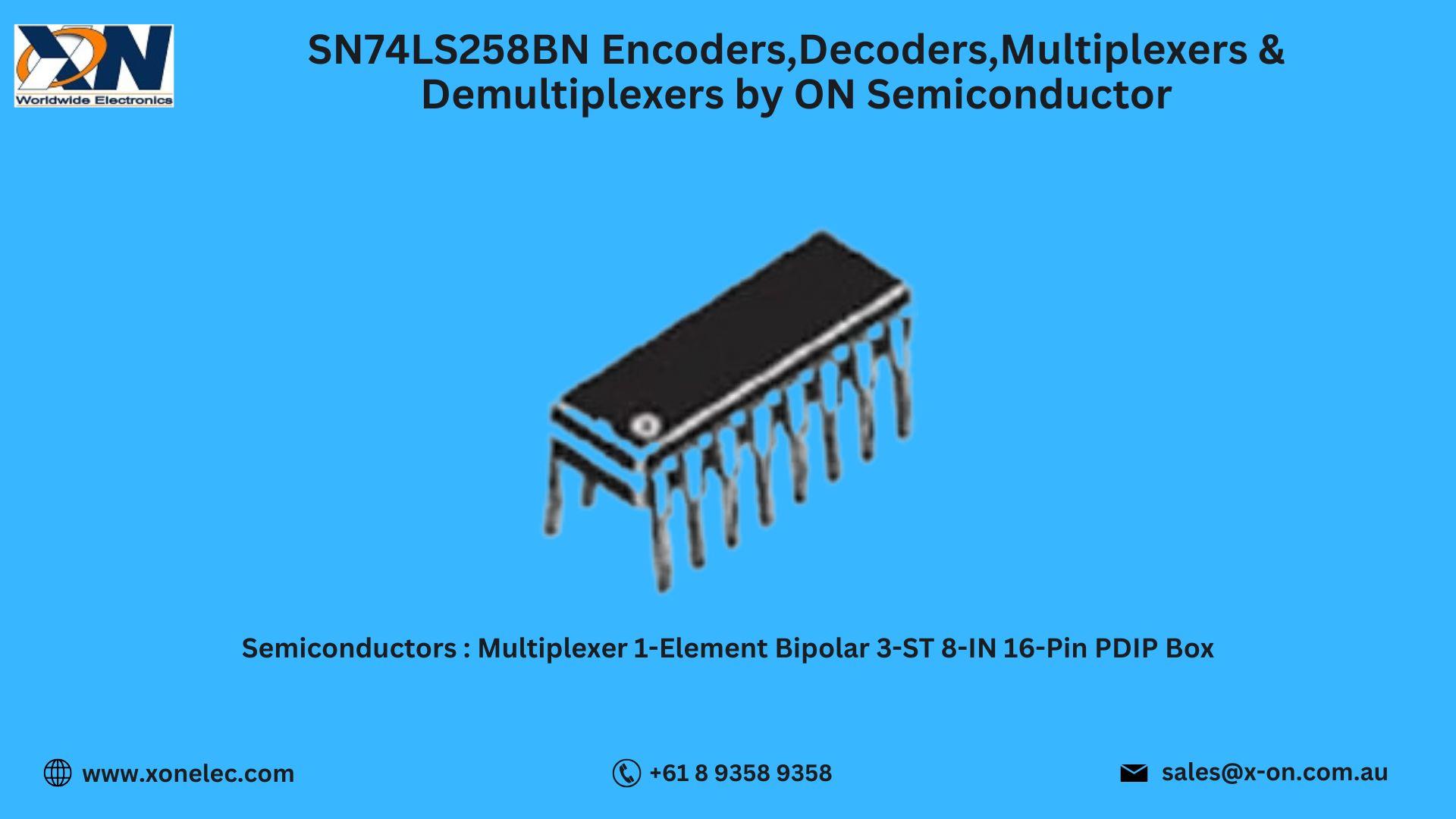

Package Type: DIP-16
-
Supply Voltage Range: 4.75V – 5.25V
-
Propagation Delay: ~20ns (typical)
-
Operating Temperature: 0°C to +70°C
2. Key Features of SN74LS258BN
-
Part of Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
Provides 4 independent 2-to-1 multiplexers
-
Tri-state outputs for bus-oriented designs
-
Standard TTL compatible inputs and outputs
-
Low power Schottky design for reduced energy usage
3. Applications of SN74LS258BN
-
Data selection and distribution in microprocessors
-
Signal multiplexing in embedded systems
-
Digital bus driving with tri-state control
-
Used in test and measurement equipment
-
Control systems requiring efficient data routing
4. Wiring and Connection Overview
-
Inputs: Two sets of inputs (A, B) for each of the four multiplexers
-
Select Input: Common select line for input choice
-
Output: Four 3-state outputs, active-low enable control
-
Direct compatibility with TTL logic systems
5. Use Case Example – Bus Control
Challenge: Engineers needed a way to handle multiple signals on a shared bus.
Solution: The SN74LS258BN allowed selection of inputs with tri-state capability.
Result: Reduced bus conflicts and simplified circuit design.
6. Download Datasheet for SN74LS258BN
[Download the SN74LS258BN Datasheet at XON Electronics]
7. Also available from other manufacturers
The SN74LS258BN Encoders, Decoders, Multiplexers & Demultiplexers is also manufactured by Texas Instruments, giving engineers flexibility in sourcing.
8. Why Buy from XON Electronics?
-
Large inventory of Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers
-
Genuine ON Semiconductor and other brand ICs
-
Competitive pricing with fast global delivery
-
Shipping available to USA, India, Australia, Europe & worldwide
9. FAQs – SN74LS258BN
Q1: What type of IC is the SN74LS258BN?
A: It is a quad 2-input multiplexer with 3-state outputs.
Q2: Can it be used for bus-oriented designs?
A: Yes, its tri-state outputs make it ideal for bus applications.
Q3: What is its package type?
A: It comes in DIP-16 packaging.
Q4: Is it TTL compatible?
A: Yes, both inputs and outputs are standard TTL compatible.
Q5: Where can I buy it?
A: You can Buy Online at XON with worldwide delivery.
Conclusion
The SN74LS258BN Encoders, Decoders, Multiplexers & Demultiplexers by ON Semiconductor provides reliable data selection and routing for digital applications. Being part of Semiconductors, Integrated Circuits - ICs, Logic ICs, Encoders, Decoders, Multiplexers & Demultiplexers, it ensures high-speed, low-power performance. Order now and Buy Online at XON.
