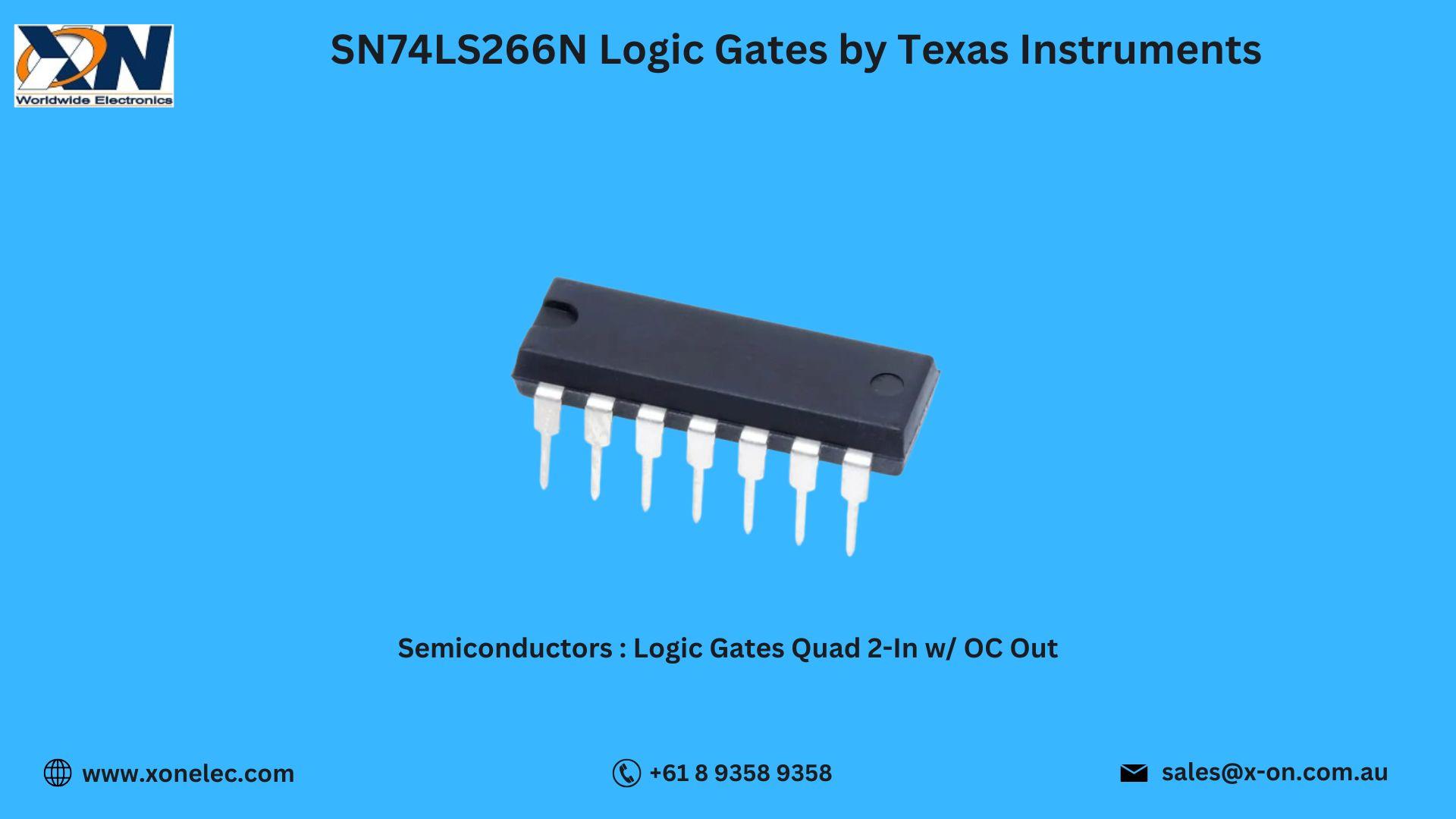

The Logic Gates SN74LS266N by Texas Instruments is a quad 2-input exclusive-NOR (XNOR) gate with open-collector outputs, designed for efficient digital logic operations. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates family, this IC is widely used in arithmetic circuits, parity checkers, and error detection systems.

1. Technical Specifications of SN74LS266N

• Manufacturer: Texas Instruments

• Part Number: SN74LS266N

• Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates

• Function: Quad 2-input XNOR gate with open-collector outputs

• Package Type: DIP-14

• Supply Voltage: 4.75V – 5.25V

• Propagation Delay: ~25ns (typical)

• Operating Temperature Range: 0°C to +70°C

2. Key Features of SN74LS266N

• Belongs to Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates

• Open-collector outputs for wired-AND connection

• Standard TTL compatibility

• Low power Schottky technology for efficient performance

• Ideal for high-speed digital systems

3. Applications of SN74LS266N

• Digital logic circuit design

• Error detection and correction systems

• Arithmetic parity checkers

• Signal processing in embedded systems

• General-purpose combinational logic

4. Wiring and Connection Overview

• Inputs: Each gate has 2 inputs

• Outputs: Open-collector outputs for direct wired-AND configurations

• Power Supply: +5V DC operation

• Logic Type: Exclusive-NOR operation (XNOR)

5. Use Case Example – Error Detection

Challenge: Engineers needed reliable parity checking in communication systems.
Solution: The SN74LS266N Logic Gates provided accurate XNOR logic for error detection.
Result: Enhanced reliability and reduced transmission errors.

6. Download Datasheet for SN74LS266N

[Download the SN74LS266N Datasheet at XON Electronics]

7. Why Buy from XON Electronics?

• Genuine Texas Instruments ICs

• Extensive stock of Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates

• Competitive pricing with worldwide shipping

• Delivery available to USA, India, Australia, Europe & more

8. FAQs – SN74LS266N

Q1: What type of logic function does SN74LS266N provide?
A: It provides quad 2-input exclusive-NOR (XNOR) logic.

Q2: What packaging does it come in?
A: DIP-14 packaging.

Q3: Is it TTL compatible?
A: Yes, inputs and outputs are standard TTL compatible.

Q4: Can the outputs be wired together?
A: Yes, open-collector outputs allow wired-AND functionality.

Q5: Where can I buy it?
A: You can Buy Online at XON with fast worldwide delivery.

Conclusion

The SN74LS266N Logic Gates by Texas Instruments is a reliable solution for error detection, parity checking, and high-speed digital logic designs. As part of Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates, it ensures efficient performance in modern circuits. Order today and Buy Online at XON.
