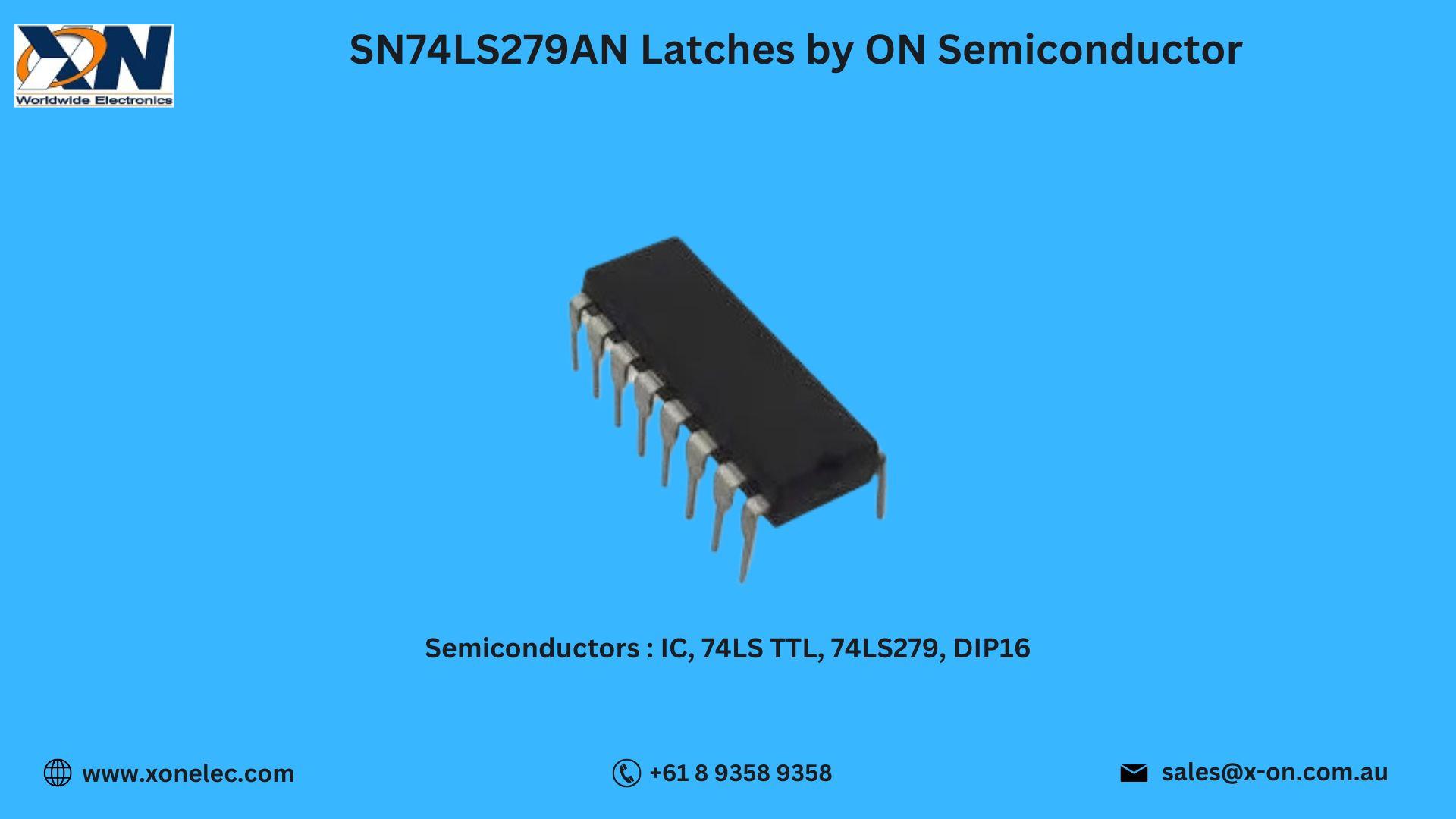

The Latches SN74LS279AN by ON Semiconductor are quad S-R latches designed for reliable storage and control of logic states. Belonging to the Semiconductors, Integrated Circuits - ICs, Logic ICs, Latches family, this IC is widely used in memory storage, data control, and synchronization systems where temporary state retention is critical.

1. Technical Specifications of SN74LS279AN

• Manufacturer: ON Semiconductor

• Part Number: SN74LS279AN

• Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Latches

• Function: Quad S-R latch with independent inputs and outputs

• Package Type: DIP-16

• Supply Voltage: 4.75V – 5.25V (standard TTL levels)

• Propagation Delay: ~15ns (typical)

• Operating Temperature Range: 0°C to +70°C

2. Key Features of SN74LS279AN

• Member of Semiconductors, Integrated Circuits - ICs, Logic ICs, Latches

• Provides four independent set-reset latches in one package

• High-speed, low-power Schottky technology

• Compatible with standard TTL logic levels

• DIP-16 packaging for ease of use in prototyping and production

3. Applications of SN74LS279AN

• Data storage and synchronization circuits

• Control logic for embedded systems

• Timing and sequencing applications

• Buffering and temporary data holding

• Industrial automation and digital electronics

4. Wiring and Connection Overview

• Inputs: Set (S) and Reset (R) for each latch

• Outputs: Independent Q outputs

• Power Supply: +5V DC

• Logic Type: Asynchronous storage elements

5. Use Case Example – Data Synchronization

Challenge: A system needed temporary data storage between two asynchronous processes.
Solution: The SN74LS279AN Latches offered stable state retention with minimal propagation delay.
Result: Improved synchronization and reliable operation.

6. Download Datasheet for SN74LS279AN

[Download the SN74LS279AN Datasheet at XON Electronics]

7. Also Available from Other Manufacturers

• Texas Instruments – Offering high-quality alternatives in the Semiconductors, Integrated Circuits - ICs, Logic ICs, Latches category.

8. Why Buy from XON Electronics?

• Wide range of Semiconductors, Integrated Circuits - ICs, Logic ICs, Latches

• Genuine ON Semiconductor components

• Competitive pricing and bulk availability

• Global delivery to USA, India, Australia, Europe & more

9. FAQs – SN74LS279AN

Q1: What type of latch does SN74LS279AN provide?
A: It provides quad set-reset (S-R) latches.

Q2: What is the package type?
A: DIP-16 for easy integration.

Q3: Is it TTL compatible?
A: Yes, designed for standard TTL logic levels.

Q4: Can it be used for synchronization tasks?
A: Yes, it is widely used in data storage and synchronization circuits.

Q5: Where can I purchase it?
A: You can Buy Online at XON with worldwide shipping.

Conclusion

The SN74LS279AN Latches by ON Semiconductor deliver reliable performance in data storage, synchronization, and control applications. Part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Latches family, they are essential components in modern digital circuits. Order today and Buy Online at XON.
