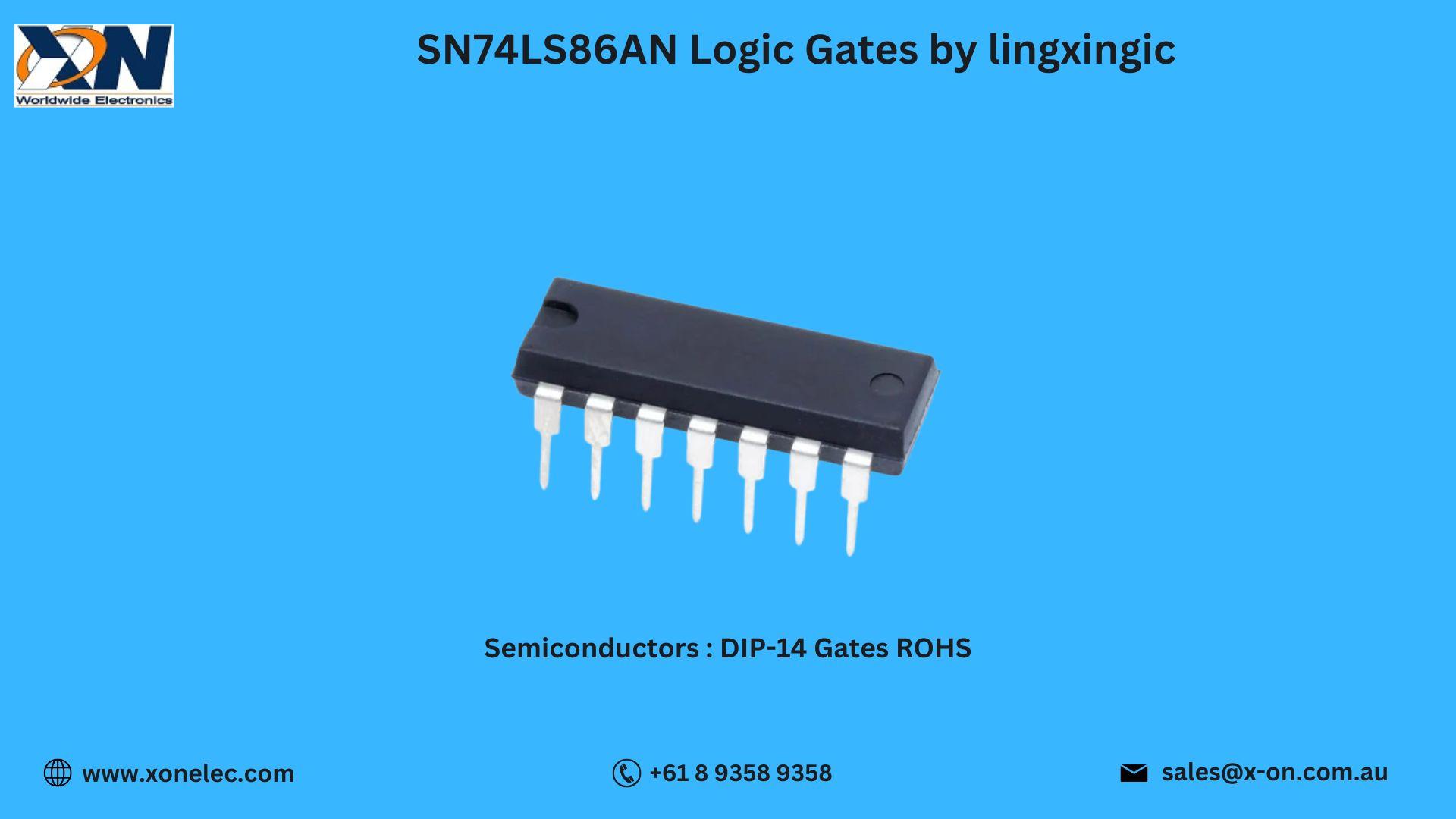

SN74LS86AN Logic Gates by lingxingic – Buy Online at XON
The Logic Gates SN74LS86AN by lingxingic are high-performance digital ICs designed for efficient logic processing in computing, control, and communication systems. Belonging to the category of Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates, they provide reliable performance in demanding applications.
1. Technical Specifications of SN74LS86AN
-
Manufacturer: lingxingic
-
Part Number: SN74LS86AN
-
Category: Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates
-
Logic Type: Quad 2-input Exclusive-OR (XOR) Gate
-
Voltage Supply Range: 4.75V to 5.25V
-
Package Type: DIP-14
-
Output Type: TTL-compatible
-
Applications: Digital electronics, computers, control systems
2. Key Features of SN74LS86AN
-
Implements XOR logic functions with precision
-
TTL output compatibility for easy integration
-
Low power consumption with high-speed operation
-
Wide application in digital electronics and computing systems
-
DIP package for simple PCB mounting
3. Applications of SN74LS86AN
-
Arithmetic and logic units (ALUs)
-
Digital computing and processing systems
-
Control systems in industrial electronics
-
Signal processing and data encoding
-
Embedded systems requiring XOR logic functions
4. Wiring and Connection Overview
-
Standard DIP-14 package for through-hole PCB assembly
-
Inputs: A, B for XOR logic processing
-
Output: Provides XOR logic result (A ? B)
-
Requires stable 5V DC supply for reliable operation
5. Use Case Example – Digital Circuit Design
Challenge: A manufacturer required XOR-based logic for error detection in communication devices.
Solution: The SN74LS86AN Logic Gates by lingxingic delivered reliable XOR functions with low power use.
Result: Enhanced communication reliability with reduced data errors.
6. Download Datasheet for SN74LS86AN
[Download the SN74LS86AN Datasheet at XON Electronics]
7. Also Available from Other Manufacturers
For alternatives to the SN74LS86AN Logic Gates by lingxingic, XON Electronics also offers reliable equivalents from Texas Instruments, ensuring design flexibility and performance options.
8. Why Buy from XON Electronics?
-
Wide range of Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates
-
100% authentic and certified products
-
Competitive global pricing
-
Fast shipping across USA, India, Australia, Europe, and more
9. FAQs – SN74LS86AN Logic Gates
Q1: What logic type does the SN74LS86AN implement?
A: It provides quad 2-input XOR logic functions.
Q2: Is it suitable for TTL circuits?
A: Yes, it is TTL-compatible, making it easy to integrate.
Q3: What is the package style?
A: It comes in a standard DIP-14 package.
Q4: Can it be used in ALUs?
A: Yes, it is widely used in arithmetic and logic units.
Q5: Where can I buy it?
A: You can Buy Online at XON with worldwide delivery.
Conclusion
The SN74LS86AN Logic Gates by lingxingic are reliable and efficient solutions for digital system design. As part of the Semiconductors, Integrated Circuits - ICs, Logic ICs, Logic Gates category, they deliver precision in logic processing. Get yours today and Buy Online at XON.
