SN74LVC2G14DCKR TI Inverters – Dual Schmitt-Trigger

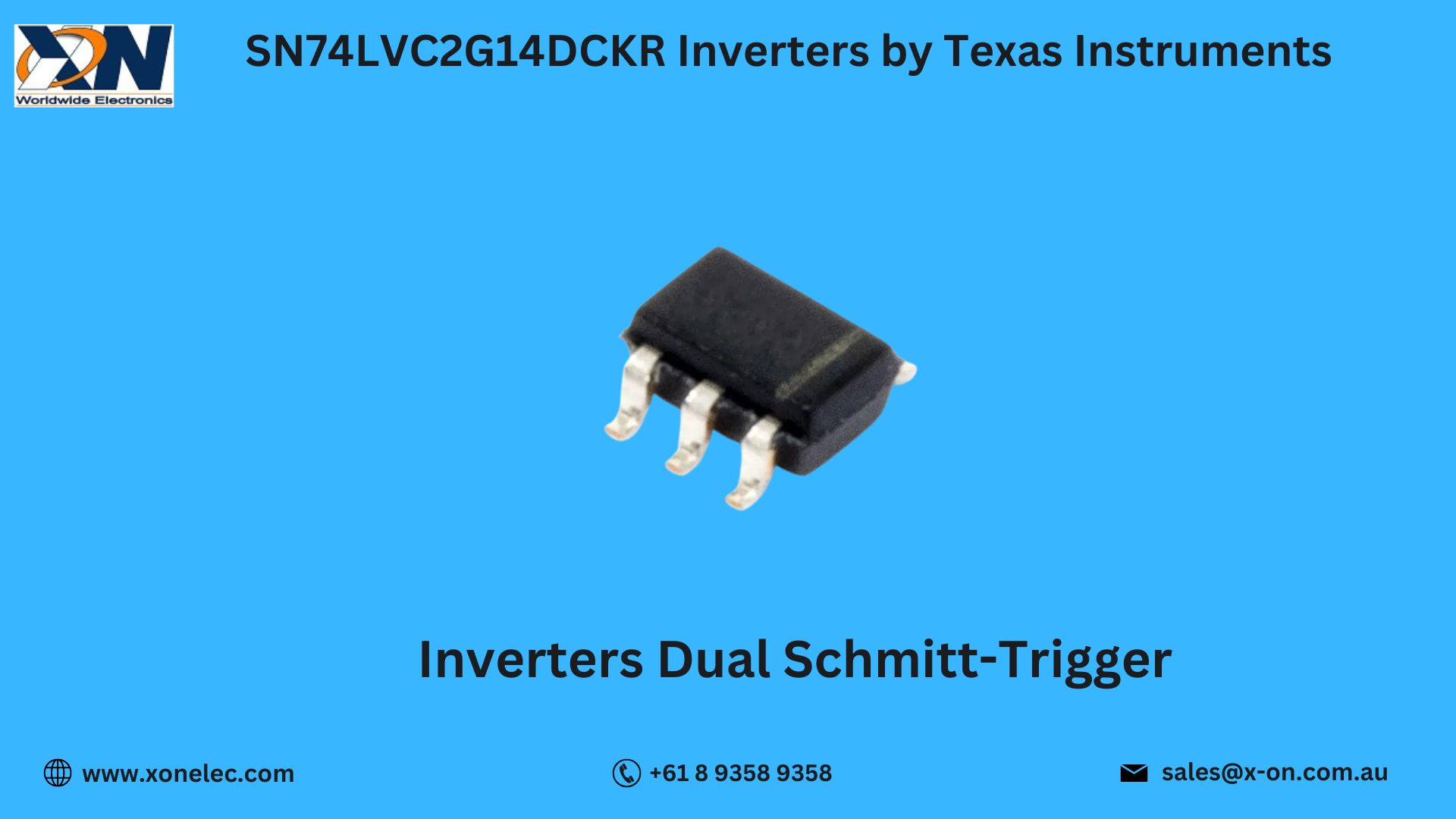

SN74LVC2G14DCKR Inverters by Texas Instruments – Dual Schmitt-Trigger Inverter for High-Speed Logic Applications

The Inverters SN74LVC2G14DCKR by Texas Instruments are high-speed CMOS logic devices featuring dual Schmitt-trigger inputs with standard push-pull outputs. Designed for space-constrained, low-voltage digital systems, these inverters offer enhanced noise immunity, fast switching performance, and compatibility with 1.65V to 5.5V supply ranges. Compact and reliable, the Inverters by Texas Instruments are commonly used in signal conditioning, waveform shaping, and logic control in industrial, automotive, and consumer applications.

In this blog, we’ll review the key specs, top features, use cases, and why Xon Electronics is your reliable global distributor.

Technical Specifications of SN74LVC2G14DCKR

Manufacturer: Texas Instruments
Part Number: SN74LVC2G14DCKR
Logic Function: Dual Schmitt-trigger inverter
Number of Channels: 2
Input Type: Schmitt-trigger
Output Type: Push-pull
Voltage Range: 1.65V to 5.5V
Max Propagation Delay: 4.6 ns at 3.3V
Package Type: SC70-6 (SOT-353)
Temperature Range: –40°C to +125°C
Category: Logic ICs, Inverters by Texas Instruments

With its tiny footprint and wide voltage support, this inverter is ideal for portable and embedded designs that demand high noise immunity and fast logic transitions.

Key Features of SN74LVC2G14DCKR Logic IC

Schmitt-Trigger Inputs – Ensures clean transitions on noisy or slow input signals
Wide Voltage Range (1.65V to 5.5V) – Supports both 3.3V and 5V logic systems
Low Power Consumption – Efficient CMOS technology for battery-driven designs
Tiny SC70-6 Package – Saves valuable PCB space
Supports Down Translation – Accepts higher-voltage inputs when powered at a lower voltage

The SN74LVC2G14DCKR Inverters by Texas Instruments offer the speed, noise margin, and form factor engineers need in modern digital systems.

Applications of Inverters by Texas Instruments

The Inverters by Texas Instruments are versatile and ideal for a wide range of digital and mixed-signal applications:

Signal Conditioning – Eliminates noise and reshapes slow input signals
Oscillator Circuits – Used in RC or crystal oscillator designs
Power-Down Isolation – Keeps signals defined when power is removed
Logic Level Conversion – Down-translate 5V logic to 3.3V-compatible levels
Portable Consumer Devices – Phones, wearables, and media players
Automotive and Industrial Electronics – Control units and diagnostics systems

Because of their fast switching and compact size, SN74LVC2G14DCKR Inverters by Texas Instruments are widely adopted across embedded systems and precision logic design.

PCB Assembly and Mounting Guidelines

Solder Paste Application: Apply solder paste to the SC70-6 footprint
Component Placement: Use a pick-and-place machine for accurate positioning
Reflow Process: Follow TI’s recommended thermal profile for soldering
Verification: Use AOI or manual inspection to ensure pin alignment and solder quality

The small package size makes these inverters ideal for designs where board space is at a premium.

Use Case Scenario: Noise-Free Logic Interface in Sensor Hub

Scenario: An embedded engineer was developing a sensor hub that needed clean transitions on slow-changing analog input signals.

Problem: The MCU was receiving noisy or undefined logic levels, resulting in data errors.

Solution: The SN74LVC2G14DCKR Inverters by Texas Instruments were added to convert noisy sensor output into clean digital logic levels using Schmitt-trigger functionality.

Result: Improved signal integrity, reduced MCU read errors, and compact layout integration.

This example shows why Inverters by Texas Instruments are critical in noise-sensitive and space-constrained designs.

Download Datasheet for SN74LVC2G14DCKR

Need detailed pinout, timing diagrams, or electrical characteristics?

[Download SN74LVC2G14DCKR Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Xon Electronics provides original Inverters by Texas Instruments, including the SN74LVC2G14DCKR, with:

100% Genuine Texas Instruments Products
Global Shipping – USA, India, Australia, Europe & more
OEM Discounts & Volume Availability
Application Support & Cross-Reference Services
Easy and Secure Online Shopping

Build better logic designs with proven TI quality—only at www.xonelec.com.

Conclusion

The SN74LVC2G14DCKR Inverters by Texas Instruments are compact, fast, and highly noise-tolerant logic devices that serve a wide variety of industrial, consumer, and embedded applications. Their Schmitt-trigger inputs, low power draw, and high-speed operation make them a reliable choice for designers working on next-gen electronics. Available now at Xon Electronics with global delivery to the USA, India, Australia, Europe, and other regions.
