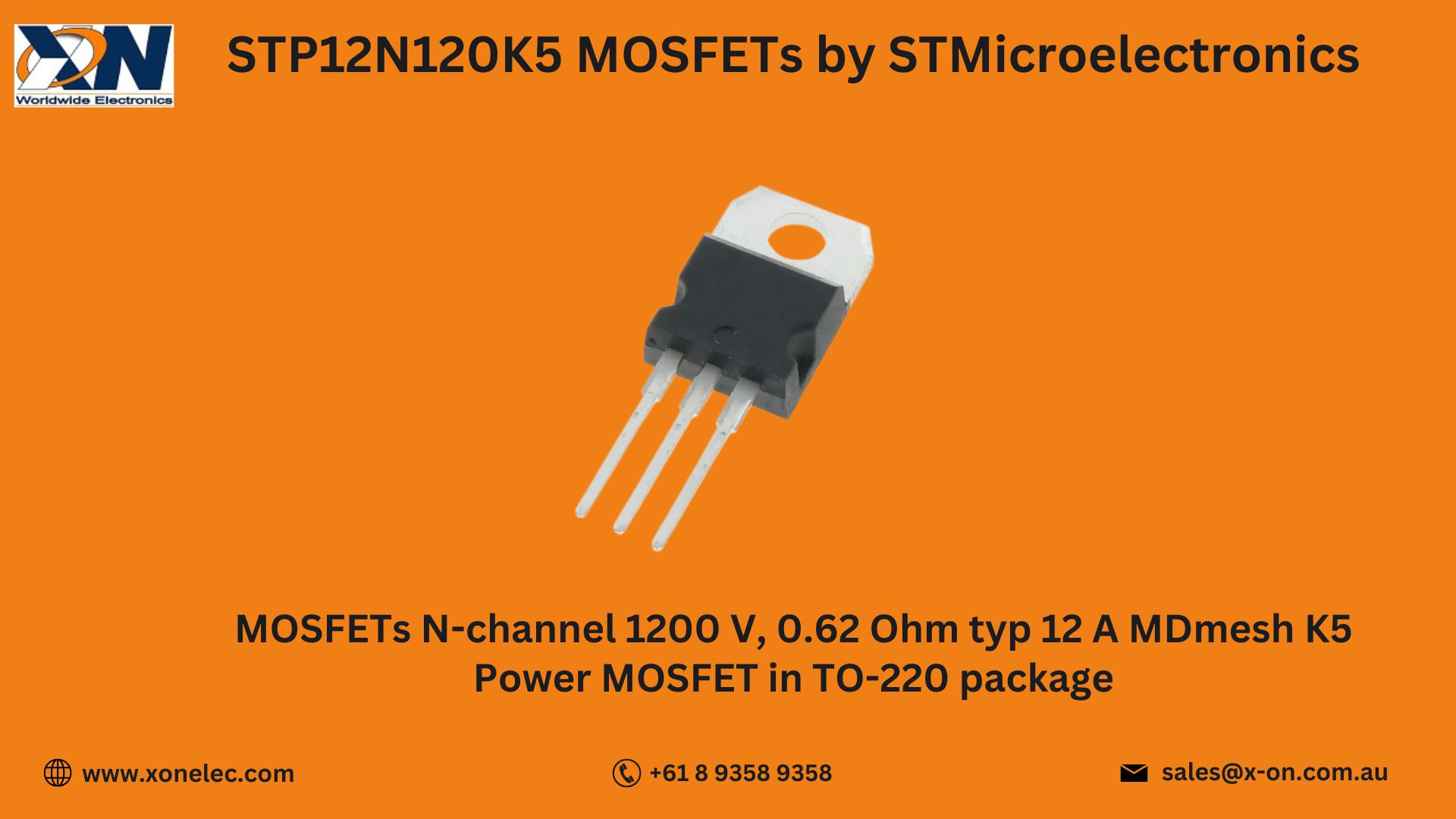

STP12N120K5 MOSFETs by STMicroelectronics – High Voltage, Low Loss
When high-voltage applications demand reliability and efficiency, MOSFETs STP12N120K5 by STMicroelectronics deliver outstanding performance. These N-channel power MOSFETs are part of the cutting-edge MDmesh™ K5 series, known for their low on-resistance and excellent switching performance. Designed specifically for high-voltage applications, they are a flagship in the category of Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by STMicroelectronics.
Whether you're developing industrial power supplies or energy-efficient lighting, the STP12N120K5 MOSFETs by STMicroelectronics provide optimal power handling with enhanced energy efficiency.
Technical Specifications
-
Part Number: STP12N120K5
-
Manufacturer: STMicroelectronics
-
Type: N-Channel MOSFET
-
Drain-Source Voltage (Vds): 1200V
-
Continuous Drain Current (Id): 9.3A
-
Rds(on): 0.6 Ohm max
-
Gate Charge (Qg): 72 nC
-
Package: TO-220
-
Technology: MDmesh™ K5
-
Mounting Type: Through Hole
-
RoHS Compliance: Yes
This model is an ideal representation of high-efficiency Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by STMicroelectronics, built for durability and long-term reliability.
Key Features
-
Ultra-low gate charge for efficient switching
-
Low Rds(on) for minimal conduction loss
-
1200V voltage rating for high-voltage designs
-
TO-220 package for ease of installation
-
Robust avalanche energy capability
-
Enhanced performance in ZVS and soft switching
For engineers looking to reduce switching losses and thermal dissipation, STP12N120K5 MOSFETs by STMicroelectronics offer a best-in-class solution.
Applications
-
Industrial SMPS and power converters
-
Energy-efficient lighting systems
-
Solar inverters and PFC stages
-
Electric vehicle chargers
-
Motor drive inverters
In all these applications, Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by STMicroelectronics provide the reliability and power density designers demand.
Use Case: High-Efficiency SMPS Design
A power electronics firm based in Australia used STP12N120K5 MOSFETs by STMicroelectronics in their 1.2kV switch-mode power supply design. The result was a more compact unit with reduced switching loss and improved thermal efficiency, ready for deployment across Europe and India.
Download Datasheet
[Download STP12N120K5 Datasheet]
Why Xonelec?
At Xonelec, we make it easy to source Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by STMicroelectronics globally:
- Ships to USA, India, Australia, Europe, and other countries
- 100% original and manufacturer-certified
- Datasheets and spec support available
- Competitive pricing on bulk orders
Conclusion
The STP12N120K5 MOSFETs by STMicroelectronics are engineered for robust power performance in demanding environments. With their excellent switching characteristics, high voltage tolerance, and reliable thermal management, they’re a key player in the lineup of Semiconductors, Discrete Semiconductors, Transistors, MOSFETs by STMicroelectronics.
FAQs – STP12N120K5 MOSFETs by STMicroelectronics
Q1. What voltage can the STP12N120K5 handle?
A: Up to 1200V drain-source voltage.
Q2. Can this be used in automotive designs?
A: Yes, especially in EV charging and inverter systems.
Q3. Does it support high-speed switching?
A: Yes, with low gate charge for fast and efficient switching.
Q4. What is the package type?
A: It comes in a TO-220 package.
Q5. Does Xonelec provide international shipping?
A: Yes, we ship to USA, India, Australia, Europe, and beyond.
