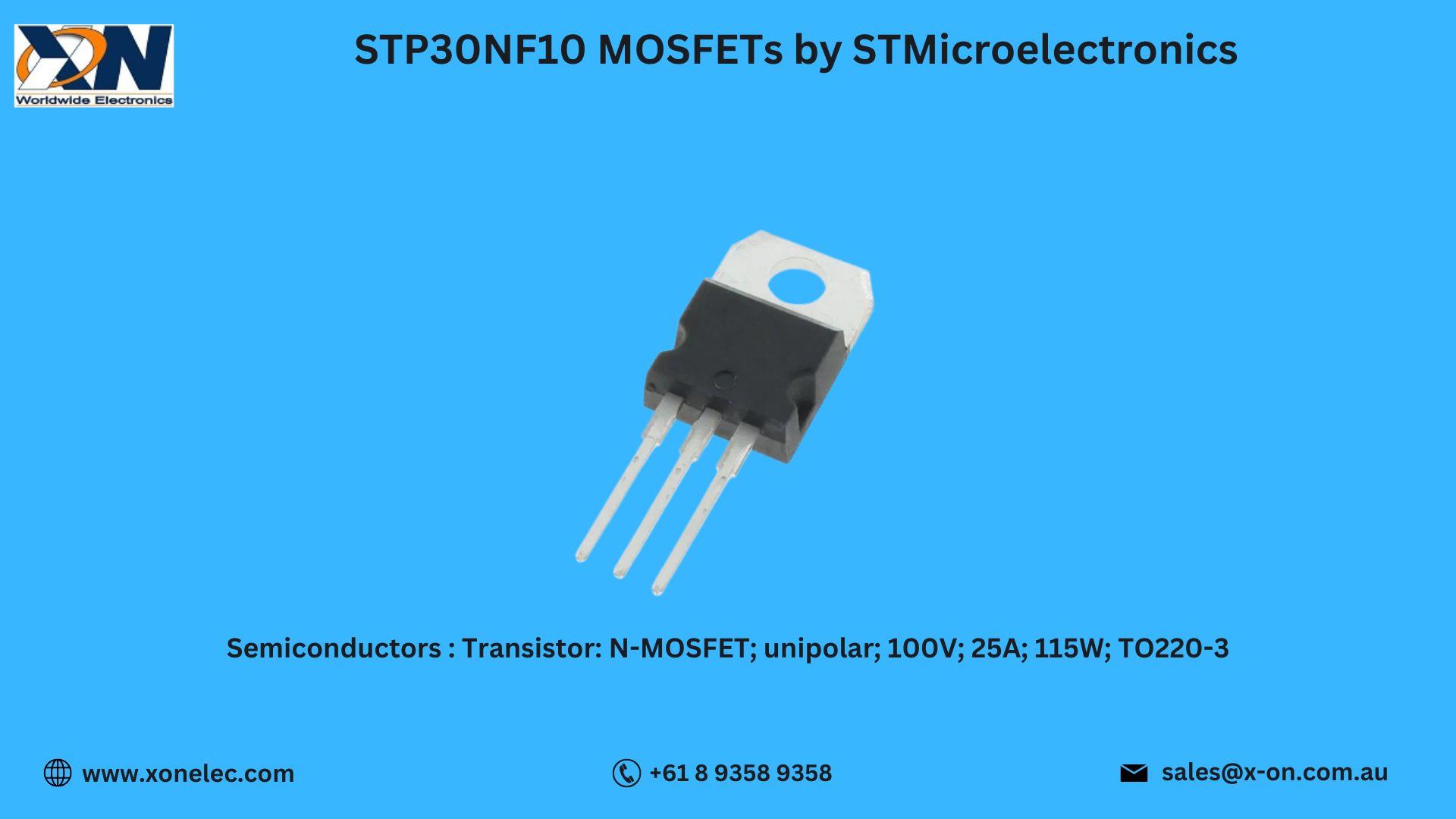

STP30NF10 MOSFETs by STMicroelectronics – Buy Online at XON
The MOSFETs STP30NF10 by STMicroelectronics are high-performance power transistors optimized for switching and amplification applications. Part of the Semiconductors, Discrete Semiconductors, Transistors, MOSFETs family, they are widely used in industrial automation, automotive systems, and consumer electronics for efficient energy control.
1. Technical Specifications of STP30NF10
-
Manufacturer: STMicroelectronics
-
Part Number: STP30NF10
-
Category: Semiconductors, Discrete Semiconductors, Transistors, MOSFETs
-
Drain-Source Voltage (Vds): 100V
-
Continuous Drain Current (Id): 30A
-
Rds(on): Low (optimized for reduced conduction loss)
-
Package: TO-220
-
Applications: High-current switching, power management, converters
2. Key Features of STP30NF10
-
High current capability up to 30A
-
Low on-resistance for reduced energy loss
-
Rugged TO-220 package for reliable thermal performance
-
Fast switching characteristics for power efficiency
-
Ideal for automotive and industrial control applications
3. Applications of STP30NF10
-
DC/DC converters and power supplies
-
Motor drive and control systems
-
Automotive ECU and load switching
-
UPS and inverters
-
Industrial electronics and automation
4. Wiring and Connection Overview
-
Drain (D): Connects to load or power output
-
Source (S): Ground or return path
-
Gate (G): Control signal input
-
Compatible with logic-level gate drives for flexible integration
5. Use Case Example – Automotive Power Switching
Challenge: An automotive designer needed a reliable MOSFET for load switching with high efficiency.
Solution: The STP30NF10 MOSFETs delivered high current handling with low Rds(on).
Result: Stable operation, improved energy savings, and reduced heat.
6. Download Datasheet for STP30NF10
[Download the STP30NF10 Datasheet at XON Electronics]
7. Why Buy from XON Electronics?
-
100% authentic Semiconductors, Discrete Semiconductors, Transistors, MOSFETs
-
Global delivery across USA, India, Australia, Europe & more
-
Competitive pricing with trusted sourcing
-
Widely used by engineers, industries, and OEMs
-
Easy ordering process – Buy Online at XON
8. Also Available from Other Manufacturers
9. FAQs – STP30NF10 MOSFETs
Q1: What is the maximum current supported by STP30NF10?
A: It supports up to 30A continuous current.
Q2: Which package type is available?
A: It comes in a rugged TO-220 package.
Q3: Can this MOSFET be used in motor control?
A: Yes, it is widely used in motor drivers and industrial control.
Q4: Is it suitable for automotive use?
A: Absolutely, it is designed for automotive-grade load switching.
Q5: Where can I purchase it globally?
A: Available at XON Electronics with worldwide delivery.
Conclusion
The STP30NF10 MOSFETs by STMicroelectronics stand out in the Semiconductors, Discrete Semiconductors, Transistors, MOSFETs category for their high efficiency, durability, and reliability. With strong current handling and low Rds(on), they are ideal for automotive, industrial, and power supply designs. Buy Online at XON today for global delivery.
