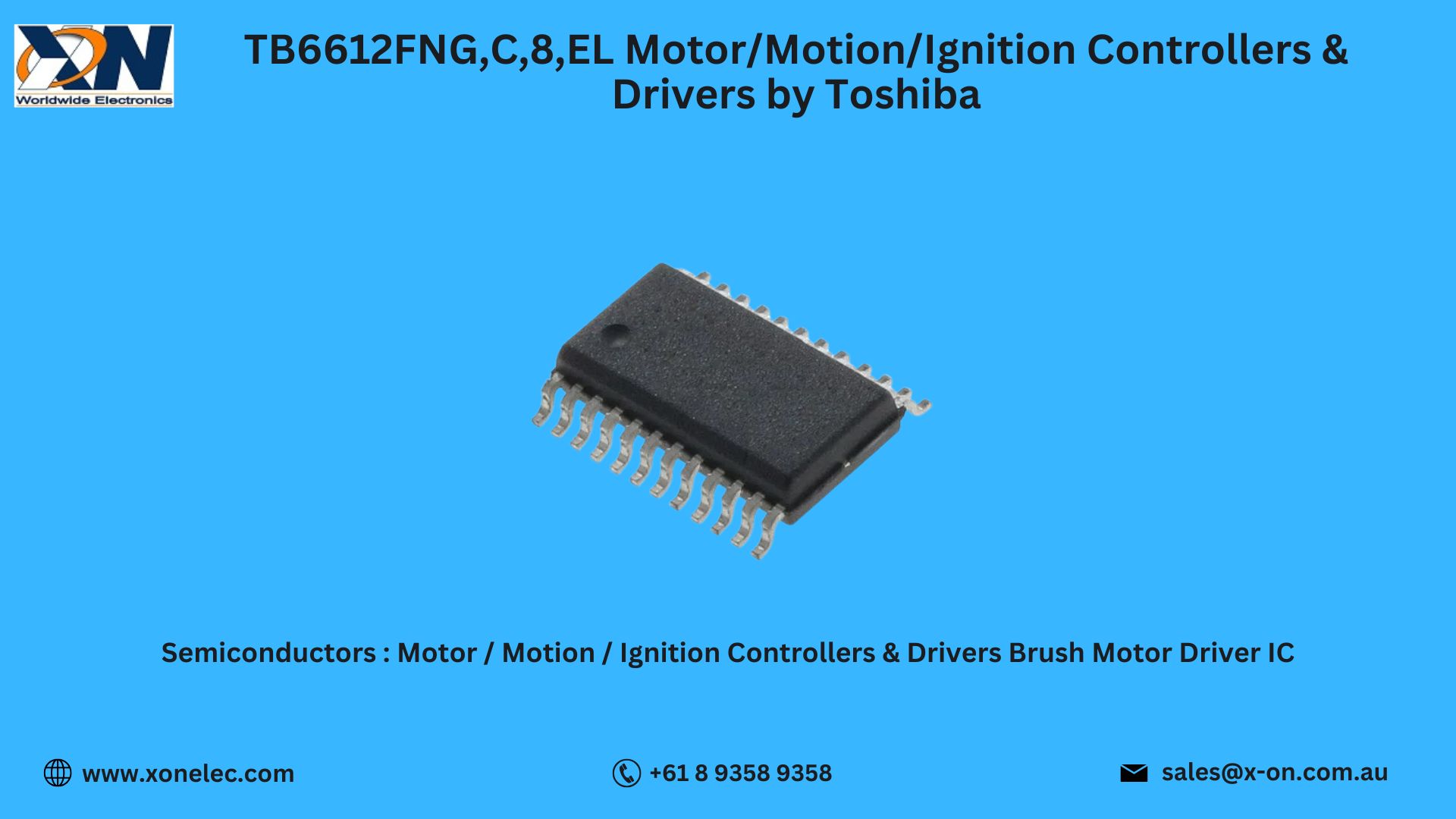

TB6612FNG,C,8,EL Motor/Motion/Ignition Controllers & Drivers by Toshiba – Buy Online at XON
The Motor/Motion/Ignition Controllers & Drivers TB6612FNG,C,8,EL by Toshiba are high-performance dual H-bridge motor drivers designed for precise motor control in robotics, automation, and embedded systems. Part of the Semiconductors, Integrated Circuits - ICs, Power Management ICs, Motor/Motion/Ignition Controllers & Drivers category, this device delivers efficient, reliable, and compact motor-driving solutions for a wide range of applications.
1. Technical Specifications of TB6612FNG,C,8,EL
-
Manufacturer: Toshiba
-
Part Number: TB6612FNG,C,8,EL
-
Type: Motor/Motion/Ignition Controllers & Drivers
-
Motor Channels: Dual H-bridge for two DC motors or one stepper motor
-
Operating Voltage: VM: 4.5V–13.5V, Vcc: 2.7V–5.5V
-
Output Current: 1.2A continuous per channel, 3.2A peak
-
Control Interface: PWM (Pulse Width Modulation)
-
Package: SSOP-24
-
Category: Semiconductors, Integrated Circuits - ICs, Power Management ICs, Motor/Motion/Ignition Controllers & Drivers
This IC is optimized for efficiency, minimizing power loss while providing strong torque control and smooth motor operation.
2. Key Features of TB6612FNG,C,8,EL
-
Dual H-bridge motor driver for DC and stepper motors
-
PWM control for precise speed and direction regulation
-
Low power consumption and high efficiency
-
Overcurrent and thermal shutdown protection
-
Compact SSOP-24 package for space-saving PCB designs
3. Applications of TB6612FNG,C,8,EL
-
Robotics and automation projects
-
Small electric vehicles and toys
-
Conveyor belt control systems
-
3D printers and CNC machines
-
Embedded systems requiring motor control
4. Wiring and Connection Overview
Typical wiring setup:
-
VM: Motor power supply (4.5V–13.5V)
-
Vcc: Logic voltage supply (2.7V–5.5V)
-
Inputs: PWM and direction control signals from MCU
-
Outputs: Connect to DC motor or stepper motor windings
-
Ground: Common GND for power and logic circuits
5. Use Case Scenario – Robotics Project
Scenario: A robotics team needed a reliable, compact motor driver to control two DC motors for a competition robot.
Problem: Their previous driver overheated and lacked smooth speed control.
Solution: The TB6612FNG,C,8,EL Motor/Motion/Ignition Controllers & Drivers delivered precise PWM control, efficient heat management, and reliable motor operation.
Result: Enhanced performance, longer operational time, and improved maneuverability.
6. Download Datasheet for TB6612FNG,C,8,EL
For detailed pinouts, timing diagrams, and electrical characteristics:
Download TB6612FNG,C,8,EL Datasheet from Xon Electronics
7. Also Available from Other Manufacturers
The TB6612FNG,C,8,EL Motor/Motion/Ignition Controllers & Drivers are also available from:
8. Why Buy from Xon Electronics?
-
100% Genuine Motor/Motion/Ignition Controllers & Drivers
-
Worldwide shipping – USA, India, Australia, Europe & more
-
Bulk discounts for OEMs and robotics teams
-
Technical support for product integration
-
Secure and reliable online ordering
9. FAQs – TB6612FNG,C,8,EL Motor/Motion/Ignition Controllers & Drivers
Q1: How many motors can it control?
A: Two DC motors or one stepper motor.
Q2: What is the maximum continuous output current?
A: 1.2A per channel (3.2A peak).
Q3: Can it work with 3.3V logic?
A: Yes, it supports 2.7V–5.5V logic levels.
Q4: Is it suitable for battery-powered applications?
A: Yes, its high efficiency makes it ideal for portable devices.
Q5: Where can I buy it globally?
A: At www.xonelec.com with worldwide delivery.
Conclusion
The TB6612FNG,C,8,EL Motor/Motion/Ignition Controllers & Drivers by Toshiba offer efficient, compact, and reliable motor control for robotics, automation, and embedded systems. With dual H-bridge architecture, PWM control, and integrated protection features, it’s a top choice for engineers and makers. Available now at Xon Electronics with global shipping to USA, India, Australia, Europe, and more.
