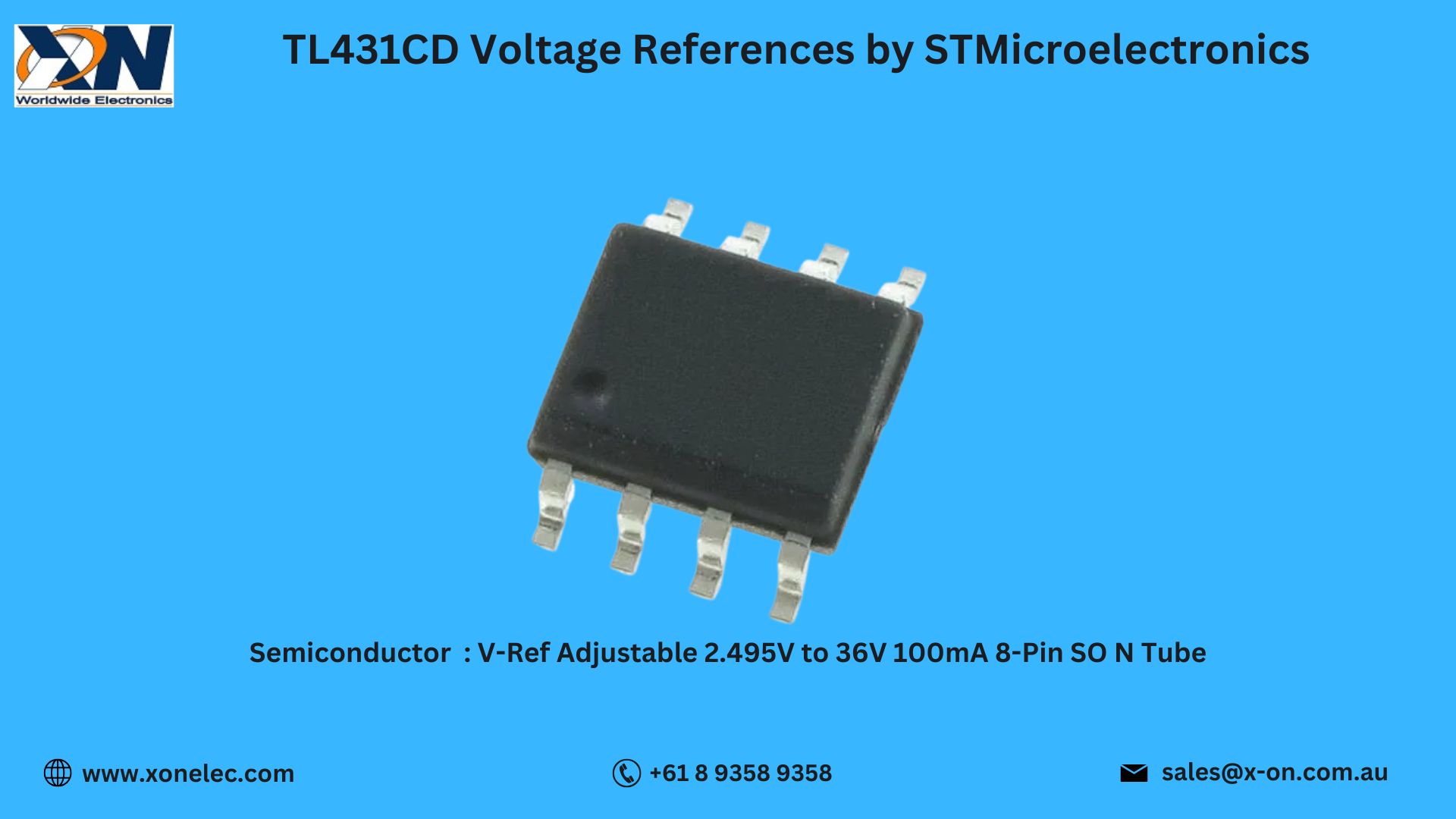

TL431CD Voltage References by STMicroelectronics
The TL431CD from STMicroelectronics is a precision, programmable shunt voltage reference designed for accurate voltage regulation in a wide range of electronic applications. As part of the semiconductors, integrated circuits – ICs, power management ICs, voltage references category, it offers excellent stability, flexibility, and ease of integration for engineers and designers.
With a typical reference voltage of 2.495V, the TL431CD voltage reference is perfect for power supplies, battery chargers, and instrumentation circuits requiring reliable performance over varying environmental conditions.
Technical Specifications of TL431CD
-
Manufacturer: STMicroelectronics
-
Part Number: TL431CD
-
Category: Semiconductors, Integrated Circuits – ICs, Power Management ICs, Voltage References
-
Reference Voltage: 2.495V (typical)
-
Voltage Tolerance: ±0.5% (A grade)
-
Output Voltage Range: 2.495V to 36V
-
Operating Current Range: 1mA to 100mA
-
Package Type: SOIC-8
-
Operating Temperature: -40°C to +85°C
Key Features of TL431CD
-
Programmable voltage reference for design flexibility
-
High accuracy with low temperature coefficient
-
Wide output voltage range up to 36V
-
Low dynamic impedance for stable operation
-
Compatible with industry-standard SOIC-8 packages
Applications of TL431CD
-
Linear and switching power supplies
-
Battery management systems
-
Industrial automation control systems
-
Precision measurement and monitoring instruments
-
Consumer electronics requiring regulated voltage
Wiring and Connection Overview
-
REF (Reference Pin): Adjusts the output voltage
-
K (Cathode): Ground or return connection
-
A (Anode): Supply connection for regulation control
Use Case Scenario: Voltage Stability in Industrial Systems
Problem: An industrial automation circuit needed highly accurate voltage regulation to ensure stable sensor operation.
Solution: The TL431CD voltage reference offered programmable output, tight tolerance, and excellent stability, even in variable temperature environments.
Result: Improved operational consistency and reduced system downtime.
