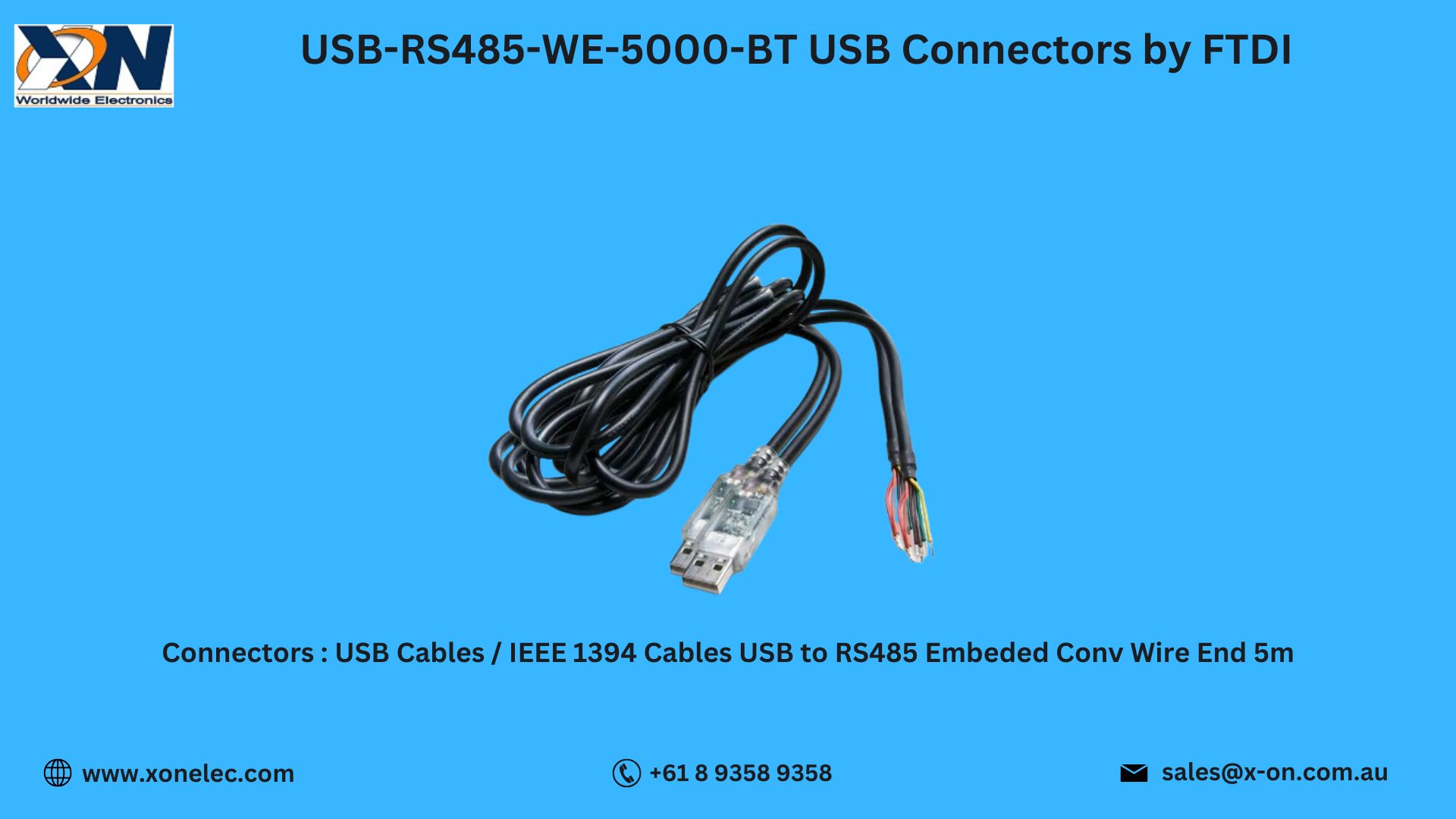

USB-RS485-WE-5000-BT USB Connectors by FTDI – Reliable RS485 to USB Interface Solution
The USB Connectors USB-RS485-WE-5000-BT by FTDI are professional-grade, USB to RS485 converter cables designed for robust and flexible serial communication. Featuring a 5-meter cable, built-in electronics, and easy USB interface, this cable simplifies RS485 integration into industrial control systems, instrumentation setups, and embedded environments.
In this blog, we’ll walk through the technical specifications, key features, application scenarios, wiring overview, use case examples, and how to download the datasheet or buy directly from Xon Electronics. Whether you're working on automation or data acquisition systems, this FTDI cable offers a powerful plug-and-play solution.
Technical Specifications of USB-RS485-WE-5000-BT
-
Manufacturer: FTDI (Future Technology Devices International)
-
Part Number: USB-RS485-WE-5000-BT
-
Type: USB to RS485 Converter Cable
-
Cable Length: 5 meters (approx. 16.4 feet)
-
Interface: USB 2.0 Full Speed
-
Connector A: USB Type-A Plug
-
Connector B: Wire-ended (Bare Tinned Leads)
-
Chipset: FT232R USB UART IC
-
Voltage Level: 5V Signal Level
-
Drivers: Windows, Mac OS, Linux (Available on FTDI website)
-
Category: Connectors, USB Connectors, Interface Modules
The cable contains the complete USB-RS485 interface circuitry within the USB plug and is pre-configured for quick implementation with no extra hardware.
Key Features of USB-RS485-WE-5000-BT
-
Plug-and-Play Functionality – Instantly usable on most operating systems with FTDI drivers
-
5-Meter Cable Length – Provides flexibility in extended industrial setups
-
Robust FTDI Chipset – Ensures high data integrity and signal reliability
-
Bare Wire Ends – Easy and versatile connection to terminals or PCBs
-
Compact and Durable Build – Industrial-grade USB interface for critical systems
These features make it one of the most trusted USB Connectors in professional data acquisition and automation systems.
Applications of USB-RS485-WE-5000-BT
The USB-RS485-WE-5000-BT USB Connectors are perfect for various applications such as:
-
Industrial Automation & PLC Interfaces
-
Sensor and Data Logger Integration
-
Modbus RS485 Communication
-
Embedded System Debugging
-
Robotics and Mechatronics
-
POS and Barcode Reader Communication
This device is ideal for engineers and developers needing reliable Connectors between USB and RS485 environments.
Wiring and Connection Overview
Typical wiring color reference for RS485 communication:
-
Orange – DATA A (Non-inverting)
-
Yellow – DATA B (Inverting)
-
Black – GND (Ground)
-
Brown – VCC (5V Power Output – Optional Use)
-
Red – Not Connected
-
Green – Not Connected
Just connect the DATA A & B lines to your RS485 bus and plug the USB end into your host device. Simple and reliable.
Use Case Scenario: Modbus-Based Automation Controller
Scenario: An automation engineer needed to connect a Modbus RS485 device to a Windows PC for real-time control and logging.
Problem: Other RS485 converters failed due to driver compatibility and poor signal quality.
Solution: The USB-RS485-WE-5000-BT USB Connector by FTDI offered out-of-the-box compatibility, stable transmission, and flexible cabling.
Result: Flawless communication, zero packet loss, and seamless integration across systems.
This real-world example proves why FTDI remains a leader in USB Connectors and industrial Connectors.
Download Datasheet for USB-RS485-WE-5000-BT
Want full electrical specs, pinouts, or compliance certifications?
[Download the USB-RS485-WE-5000-BT Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
Buy the USB-RS485-WE-5000-BT USB Connectors by FTDI from Xon Electronics and enjoy:
- 100% Genuine FTDI Interface Products
- Global Shipping to USA, India, Australia, Europe & more
- Bulk Discounts for OEMs & Engineers
- Technical Support for Integration & Configuration
- Secure and Easy Online Ordering
Trust Xon Electronics for high-performance Connectors and USB Connectors that deliver every time.
FAQs – USB-RS485-WE-5000-BT USB Connector
Q1. What is the length of this cable?
5 meters, ideal for extended device setups.
Q2. Does it require external power?
No, it draws power directly from the USB port.
Q3. Is the RS485 signal level 5V?
Yes, it operates at 5V RS485 signal level.
Q4. What operating systems does it support?
Supports Windows, macOS, and Linux via FTDI drivers.
Q5. Can I buy this globally?
Yes, available worldwide via www.xonelec.com, including USA, India, Australia, Europe, and more.
Conclusion
The USB-RS485-WE-5000-BT USB Connectors by FTDI offer a practical, powerful solution for engineers and integrators needing fast and stable RS485 communication over USB. With support for major OS platforms, reliable FTDI chipset, and convenient bare-wire ends, it’s a preferred choice across industrial and embedded domains.
Order now from Xon Electronics with global shipping across USA, India, Australia, Europe, and other countries.
