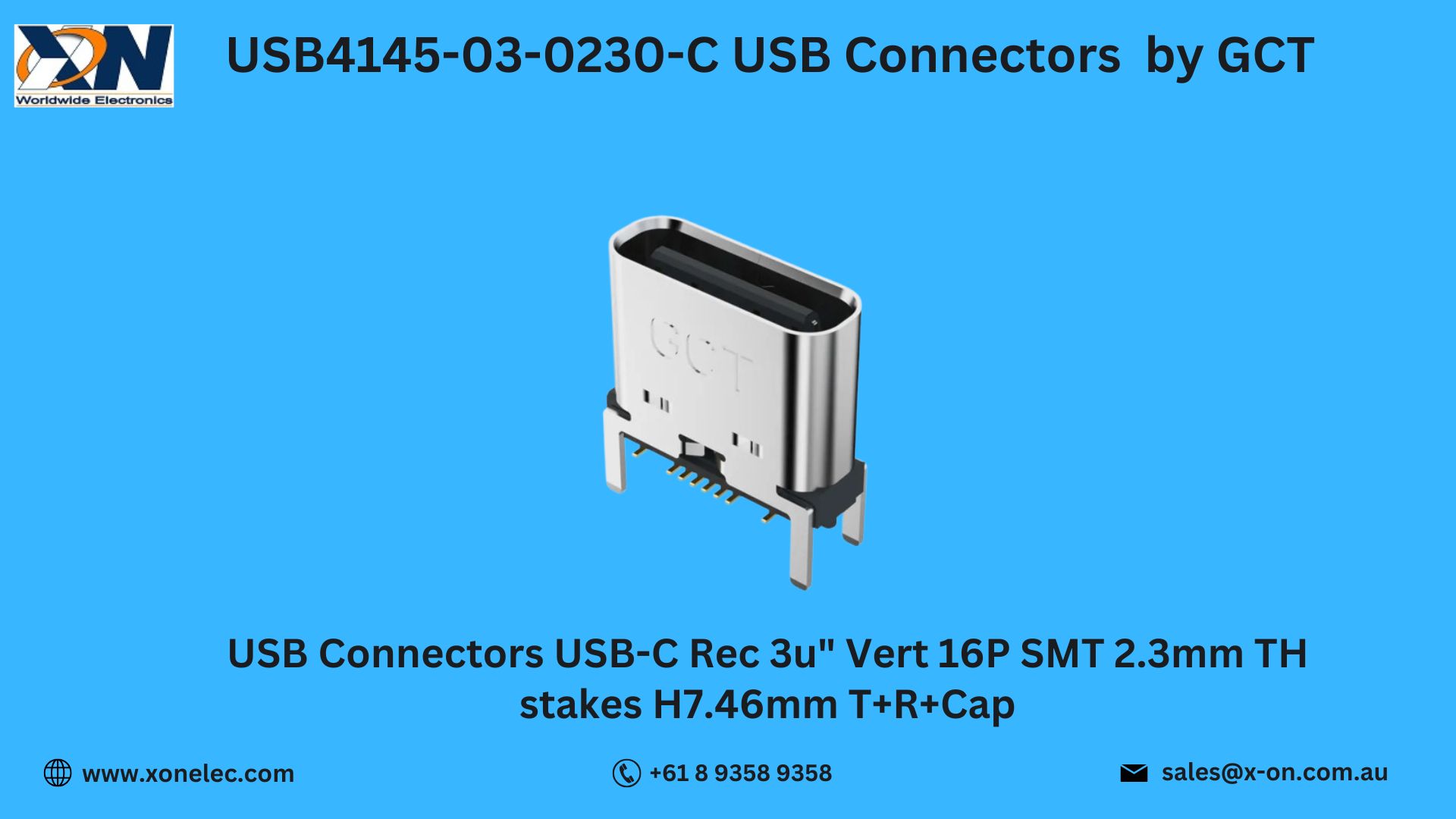

USB4145-03-0230-C USB Type-C Connectors by GCT

USB4145-03-0230-C USB Connectors by GCT – Compact, Reversible USB Type-C Solution

The USB Connectors USB4145-03-0230-C by GCT are compact, mid-mount USB Type-C connectors designed for high-speed, reliable connectivity in a wide range of modern electronic devices. Known for their reversible interface, high current capacity, and robust mechanical design, these connectors simplify USB-C integration without compromising on performance. Ideal for portable devices, embedded systems, and consumer electronics, the USB Connectors by GCT stand out for quality, innovation, and ease of integration.

In this blog, we’ll explore the technical specifications, key features, use cases, mounting configuration, and why Xon Electronics is your trusted global source.

Technical Specifications of USB4145-03-0230-C

Manufacturer: GCT
Part Number: USB4145-03-0230-C
Type: USB Type-C Connector
Mounting Type: Mid-Mount SMT
Orientation: Reversible plug interface
Connector Type: 24-pin USB Type-C
Rated Current: 5A max
Rated Voltage: 20V DC
Durability: 10,000 mating cycles
Operating Temperature: -40°C to +85°C
Shielding: Metal shell for EMI protection
Category: USB Connectors by GCT

Designed for compact devices requiring high-speed data and power delivery in a slim profile.

Key Features of USB4145-03-0230-C USB Connector

Reversible USB Type-C Design – Easy, user-friendly interface
5A/20V Power Capability – Supports USB Power Delivery (PD) applications
Mid-Mount Profile – Allows low-profile PCB integration
EMI Shielding – Metal shell provides signal integrity
Long Mating Life – Rated for 10,000 insertion/removal cycles

With these features, the USB4145-03-0230-C USB Connectors by GCT ensure durable and efficient USB-C connectivity for a variety of electronic systems.

Applications of USB4145-03-0230-C USB Connector

The USB4145-03-0230-C USB Connectors by GCT are ideal for:

Smartphones and Tablets
IoT and Smart Home Devices
Wearable Technology
Embedded PCBs and Dev Boards
USB-C Powered Industrial Tools

As USB-C becomes the universal standard, USB Connectors by GCT enable smooth transitions to modern interface design with compact and durable solutions.

Mounting and Connection Overview

Mounting steps for USB4145-03-0230-C:

Position mid-mount connector on PCB footprint
Reflow solder using standard surface-mount assembly
Ensure correct routing of USB 2.0, 3.1, or PD lines
Test for mechanical alignment and signal continuity

Thanks to its mid-mount design, the USB Connectors by GCT reduce component height while maintaining full functionality.

Use Case Scenario: Portable IoT Sensor Hub

Scenario: A product team needed a compact USB-C connector for a portable IoT sensor with charging and data sync features.

Problem: Standard connectors were too bulky and hard to align.

Solution: The USB4145-03-0230-C USB Connectors by GCT offered a slim mid-mount design with reversible orientation and strong current capability.

Result: A smaller product footprint, easier assembly, and seamless USB-C compatibility.

Download Datasheet for USB4145-03-0230-C

Looking for 3D models, mechanical drawings, or electrical specs?

[Download the USB4145-03-0230-C Datasheet from Xon Electronics]

Why Buy from Xon Electronics?

Xon Electronics offers original USB4145-03-0230-C USB Connectors by GCT with:

100% Genuine GCT Inventory
Global Shipping – USA, India, Australia, Europe & more
Stock for Prototyping and Volume Orders
Technical Support for Integration
Safe & Fast Checkout with Tracking

Shop now at www.xonelec.com and design with trusted USB Connectors by GCT.

Conclusion

The USB4145-03-0230-C USB Connectors by GCT provide a durable, compact, and reversible USB Type-C solution ideal for a wide variety of devices. With mid-mount convenience and high power capability, they meet modern electronic design demands while simplifying integration. Available now from Xon Electronics with global shipping to the USA, India, Australia, Europe, and other countries.
