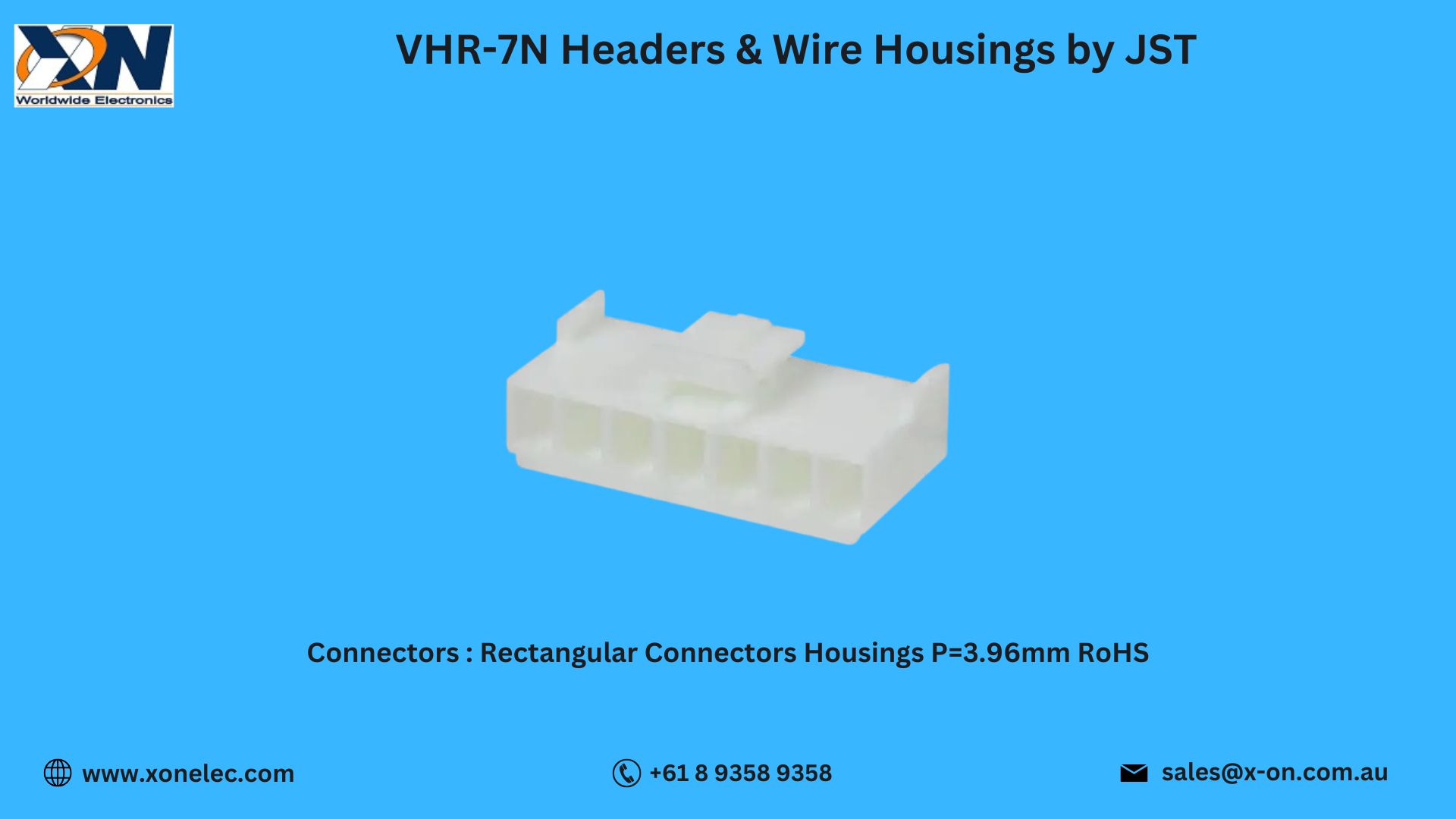

VHR-7N Headers & Wire Housings by JST – Secure & Compact Wire-to-Board Connectivity
The Headers & Wire Housings VHR-7N by JST are part of the trusted VH Series, designed for strong and reliable Connectors in high-current, wire-to-board applications. With a 7-circuit configuration and a 3.96 mm pitch, these Headers & Wire Housings offer a compact yet durable connection solution for power supplies, control units, and industrial electronics.
In this blog, we explore the technical specifications, features, applications, and mounting overview of the VHR-7N, one of the most dependable Connectors available for engineers working in demanding electrical environments.
Technical Specifications of VHR-7N
-
Manufacturer: JST (Japan Solderless Terminals)
-
Part Number: VHR-7N
-
Type: Headers & Wire Housings
-
Series: VH Series
-
Number of Positions: 7
-
Pitch: 3.96 mm
-
Mounting Type: Free Hanging (In-line)
-
Housing Material: UL94V-0 Rated Nylon
-
Current Rating: 10A AC/DC
-
Temperature Range: -25°C to +85°C
-
Locking Feature: Secure friction lock
-
Category: Connectors, Headers & Wire Housings
Ideal for applications requiring a secure and compact connection interface with high electrical performance.
Key Features of VHR-7N
-
High Current Capability – Rated at 10A per contact, ideal for power circuits
-
Secure Friction Lock – Prevents disconnection in high-vibration conditions
-
Compact 7-Position Design – Great for limited-space layouts
-
Flame-Retardant Housing – UL94V-0 certified for safety compliance
-
Easy Assembly – Compatible with JST’s VH Series crimp terminals and headers
These features make VHR-7N Headers & Wire Housings a reliable choice in the Connectors category, especially for high-current wiring needs.
Applications of VHR-7N
The VHR-7N Headers & Wire Housings are widely used in:
-
Power Supply Units
-
Consumer Electronics (TVs, Printers, Audio Systems)
-
Industrial Control Panels
-
HVAC Systems
-
LED Lighting Modules
-
Battery Management Systems
These Headers & Wire Housings support robust and long-lasting connections in a wide range of Connectors-based systems.
Wiring and Mounting Overview
Typical Installation Steps:
-
Step 1: Crimp VH terminals onto wire leads
-
Step 2: Insert terminals into the VHR-7N housing until locked
-
Step 3: Mate with a compatible JST VH Series header
-
Step 4: Ensure the friction lock engages for a secure connection
Proper mating and terminal insertion ensure long-lasting performance and vibration resistance for your Connectors.
Use Case Scenario: Multi-Output Power Supply Assembly
Scenario: A power electronics manufacturer needed a compact, high-current connection solution for a 7-output power supply unit.
Problem: Previous connectors lacked locking reliability and were too bulky for the available PCB space.
Solution: The VHR-7N Headers & Wire Housings by JST provided the ideal balance of size, current rating, and locking stability.
Result: Improved assembly process, enhanced mechanical retention, and better power delivery—making Headers & Wire Housings from JST the go-to choice.
