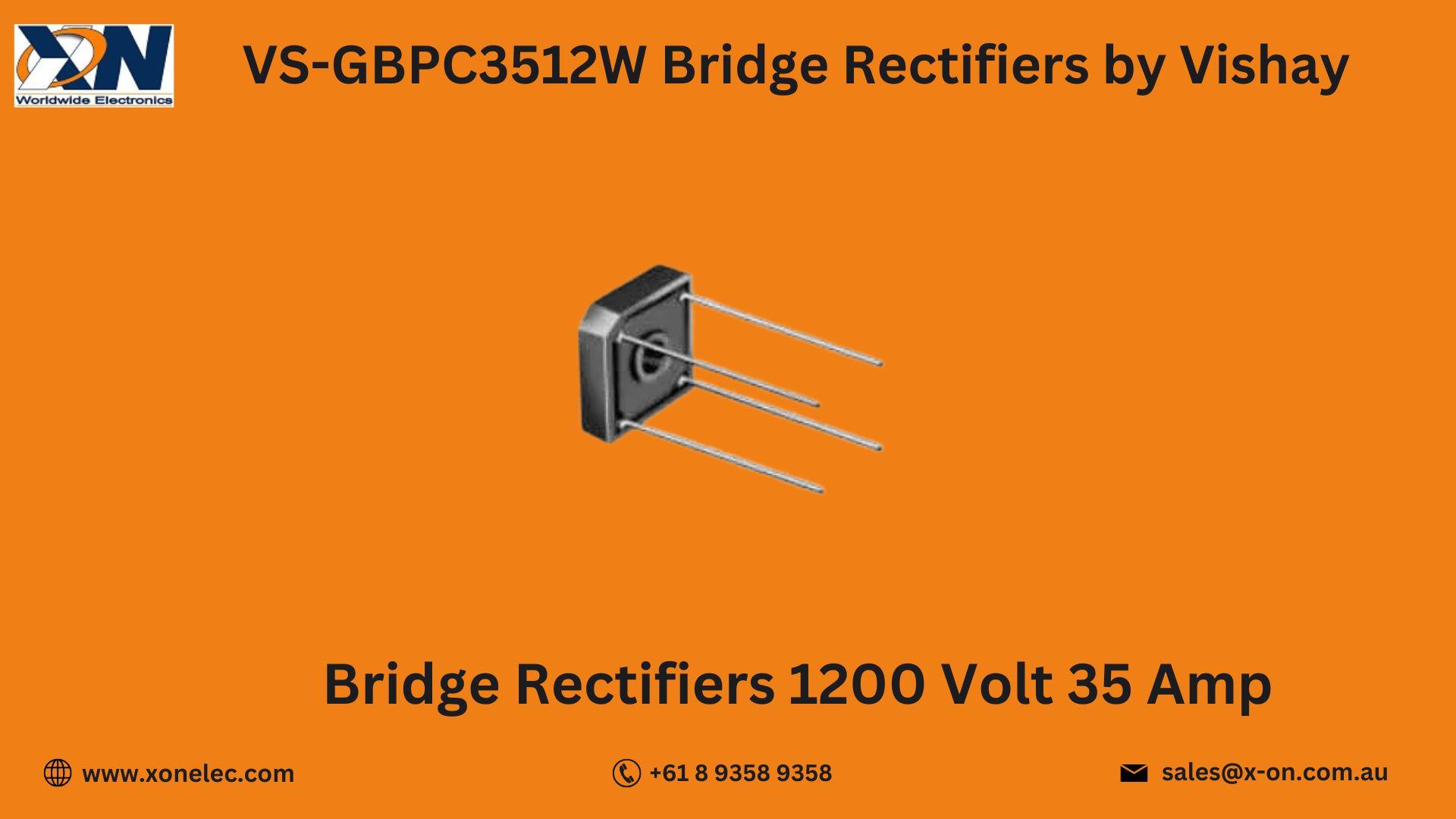

VS-GBPC3512W Bridge Rectifiers by Vishay – High Power Conversion Reliability

The Bridge Rectifiers VS-GBPC3512W by Vishay are robust Semiconductors engineered for high-efficiency AC to DC conversion in industrial and commercial applications. These Discrete Semiconductors provide reliable rectification with strong surge current capability, making them a trusted choice in power supplies, UPS systems, and motor drives. Designed for durability and performance, Vishay’s Diodes & Rectifiers portfolio includes some of the most widely adopted solutions in the industry.

In this blog, we’ll explore the technical specifications, key features, applications, wiring overview, and use case scenarios of the VS-GBPC3512W, along with datasheet details and ordering options from Xonelec.

Technical Specifications of VS-GBPC3512W

• Manufacturer: Vishay

• Part Number: VS-GBPC3512W

• Type: Bridge Rectifier

• Peak Reverse Voltage (Vrrm): 1200V

• Average Forward Current (If(av)): 35A

• Surge Current (Ifsm): 400A

• Mounting Style: Through-hole / chassis mount

• Package: Waffle-pack style, compact square case

• Operating Temperature: -55°C to +150°C

• Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Bridge Rectifiers by Vishay

• Compliance: RoHS, UL certified

These specifications ensure reliable high-current operation in a wide range of electronic systems.

Key Features of VS-GBPC3512W

• High Voltage Capability – Withstands up to 1200V reverse voltage

• Strong Current Handling – Supports 35A average current and 400A surge

• Low Thermal Resistance – Improves heat dissipation for longer life

• Compact Case Design – Easy integration in tight spaces

• Proven Reliability – Part of Vishay’s trusted Bridge Rectifiers series

These features establish the VS-GBPC3512W Bridge Rectifiers by Vishay as reliable Diodes & Rectifiers for high-power electronics.

Applications of VS-GBPC3512W

This bridge rectifier is widely used in applications requiring stable and efficient AC-DC conversion:

• Industrial and commercial power supplies

• UPS and backup systems

• Welding equipment

• Motor control and drives

• Renewable energy systems (solar, wind inverters)

• HVAC and lighting control systems

As one of Vishay’s high-performance Bridge Rectifiers, it ensures efficiency and durability in power electronics.

Wiring and Connection Overview

The VS-GBPC3512W offers simple wiring with standard polarity markings:

Typical Connection Setup:

• AC Input ? Connect to ~ terminals

• DC Output ? Positive (+) and Negative (-) terminals

• Mount securely for heat dissipation and stability

This standard layout makes it easy to integrate into Discrete Semiconductors circuits.

Use Case Scenario – Industrial UPS System

Scenario: A manufacturer required a reliable Bridge Rectifier for a high-capacity UPS.
Problem: Previous rectifiers could not handle surge currents, causing failures.
Solution: The VS-GBPC3512W Bridge Rectifiers by Vishay provided high surge tolerance, low thermal resistance, and superior reliability.
Result: Improved system uptime, reduced downtime, and enhanced overall efficiency.

Download Datasheet for VS-GBPC3512W

Download the VS-GBPC3512W Datasheet from Xonelec for complete technical specifications and performance details.

Why Buy from Xonelec?

When you choose the VS-GBPC3512W Bridge Rectifiers by Vishay, Xonelec guarantees:

• 100% Genuine Vishay Products
• Global Shipping – USA, India, Australia, Europe & more
• Competitive Bulk Pricing for OEMs and Distributors
• Expert Technical Support for Integration
• Safe and Secure Online Ordering

Order today at www.xonelec.com and get authentic Semiconductors and Diodes & Rectifiers from a trusted supplier.

Conclusion

The VS-GBPC3512W Bridge Rectifiers by Vishay are powerful, efficient, and durable Discrete Semiconductors built for high-voltage and high-current applications. With strong surge handling and thermal performance, these Diodes & Rectifiers are the ideal choice for industrial power systems. Available now at Xonelec with global shipping to USA, India, Australia, Europe, and other countries.

FAQs – VS-GBPC3512W Bridge Rectifiers

Q1. What is the maximum average forward current?
The VS-GBPC3512W supports 35A average current.

Q2. What is the peak reverse voltage rating?
It can handle up to 1200V reverse voltage.

Q3. What applications is this rectifier best suited for?
UPS, motor drives, industrial power supplies, welding, and renewable energy systems.

Q4. Does it support surge currents?
Yes, it can handle up to 400A surge current.

Q5. Can I purchase it globally?
Yes, it’s available at www.xonelec.com with delivery to USA, India, Australia, Europe, and other regions.
