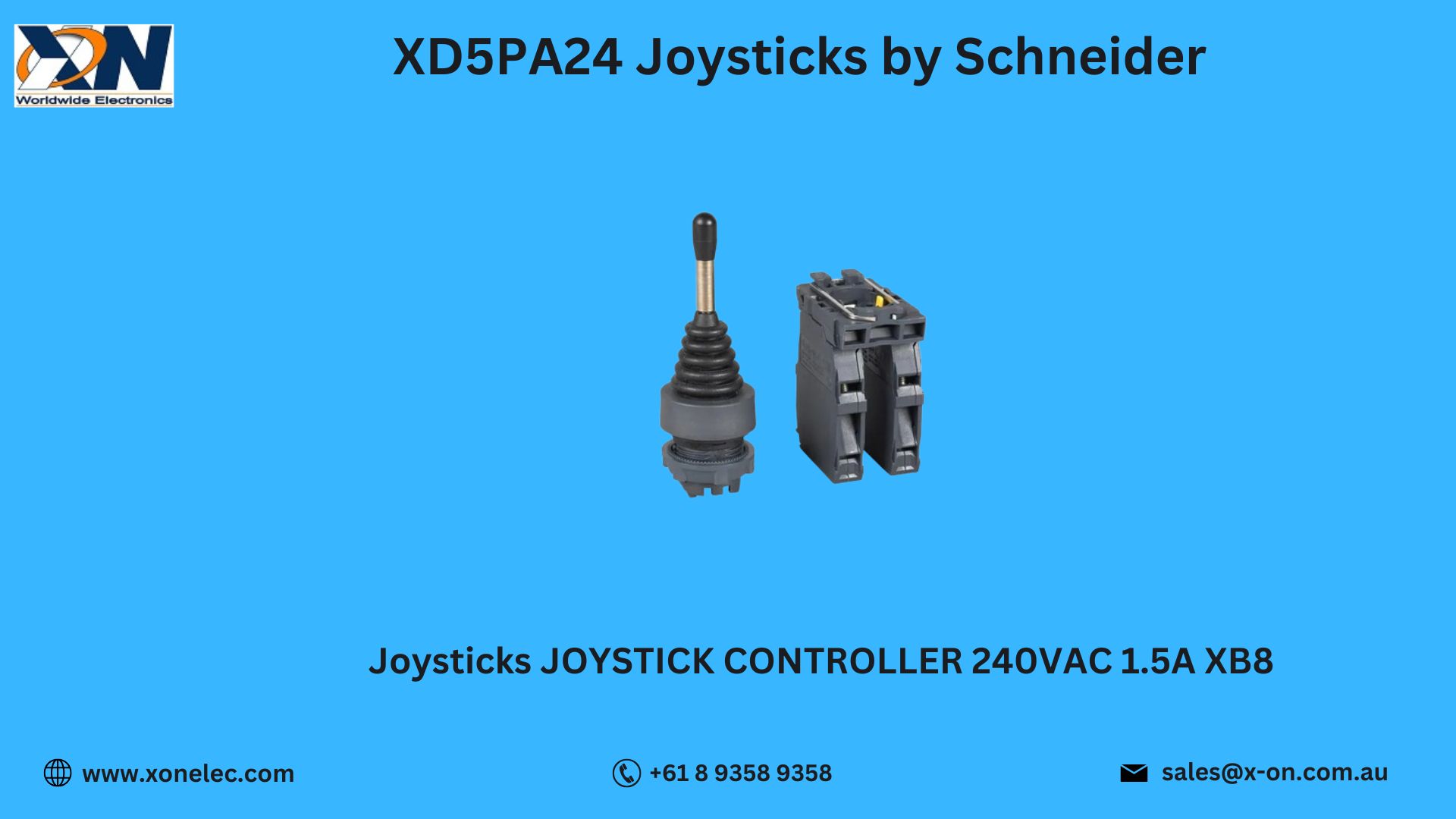

XD5PA24 Joysticks by Schneider – Reliable 2-Position Control for Industrial Panels
The Joysticks XD5PA24 by Schneider are high-performance 2-position joystick switches designed for dependable manual control in a wide range of industrial applications. Engineered for durability and intuitive operation, this joystick is ideal for use in machinery control panels, automation systems, and heavy-duty interfaces. In this blog, we’ll dive into the specifications, features, wiring guide, and real-world use case for the XD5PA24 Joysticks by Schneider, along with how to purchase from Xon Electronics.
Technical Specifications of XD5PA24
-
Manufacturer: Schneider Electric
-
Part Number: XD5PA24
-
Type: Industrial Joystick Switch
-
Positions: 2-position, maintained
-
Contact Configuration: 1 NO + 1 NC
-
Mounting Diameter: 22 mm
-
Handle Type: Short lever
-
Ingress Protection: IP65 (front)
-
Compliance: CE, RoHS
-
Application Category: Switches, Joysticks, Industrial Controls
This joystick provides reliable, tactile switching for directional control tasks across numerous industrial applications.
Key Features of XD5PA24
-
2-Position Maintained Action – Ideal for forward/reverse or up/down control
-
Robust IP65 Design – Dustproof and water-resistant for harsh environments
-
Compact 22mm Panel Mounting – Easily integrates into existing panels
-
Dual Contacts (1NO + 1NC) – Flexible for control and safety circuits
-
Short Lever Operation – Ergonomic design for smooth manual actuation
-
Schneider Build Quality – Trusted for industrial-grade durability and reliability
Thanks to these features, the XD5PA24 Joysticks by Schneider are a favorite in factory automation and control panel projects.
Applications of XD5PA24 Joysticks
The XD5PA24 Joysticks by Schneider are built for performance in control systems such as:
-
Conveyor System Operation
-
CNC and Milling Equipment
-
Robotic Arm Control
-
Packaging Machine Interfaces
-
Lift & Hoist Controllers
-
Panel Boards in Manufacturing Plants
Its simple 2-position control and rugged construction make it suitable for both standard and heavy-duty tasks.
Wiring and Connection Overview
Connecting the XD5PA24 joystick is straightforward:
Mounting: 22mm panel hole with locking nut
Contacts: 1 Normally Open (NO) + 1 Normally Closed (NC)
Connection: Screw terminals compatible with control circuits
Ingress Protection: Sealed front for reliable field use
The joystick offers quick installation and intuitive terminal markings for hassle-free wiring.
Use Case Scenario: Manual Direction Control for Industrial Conveyor
Scenario: A manufacturer needed a reliable joystick to manually control conveyor belt directions during maintenance and troubleshooting.
Challenge: Prior solutions failed due to dust ingress and poor tactile feedback.
Solution: The XD5PA24 Joysticks by Schneider with IP65 protection and smooth 2-position control replaced the legacy switches.
Outcome: Enhanced operator efficiency, reduced equipment downtime, and improved panel ergonomics.
This scenario illustrates the real-world value of choosing durable, reliable joystick switches like the XD5PA24 Joysticks by Schneider.
Download Datasheet for XD5PA24
Looking for in-depth technical details, wiring diagrams, or compliance data?
[Download the XD5PA24 Datasheet from Xon Electronics]
Why Buy from Xon Electronics?
When purchasing the XD5PA24 Joysticks by Schneider, Xon Electronics provides unmatched value:
- 100% Original Schneider Components
- Global Shipping – USA, India, Australia, Europe & beyond
- OEM & Bulk Pricing for Industrial Orders
- Expert Technical Assistance
- Safe, Fast, and Secure Ordering at www.xonelec.com
Conclusion
With its compact form, 2-position maintained action, and rugged design, the XD5PA24 Joysticks by Schneider are a reliable choice for industrial control applications. From robotics to conveyors, this joystick delivers consistent manual control under demanding conditions. Shop now at Xon Electronics for fast global delivery and trusted support.
