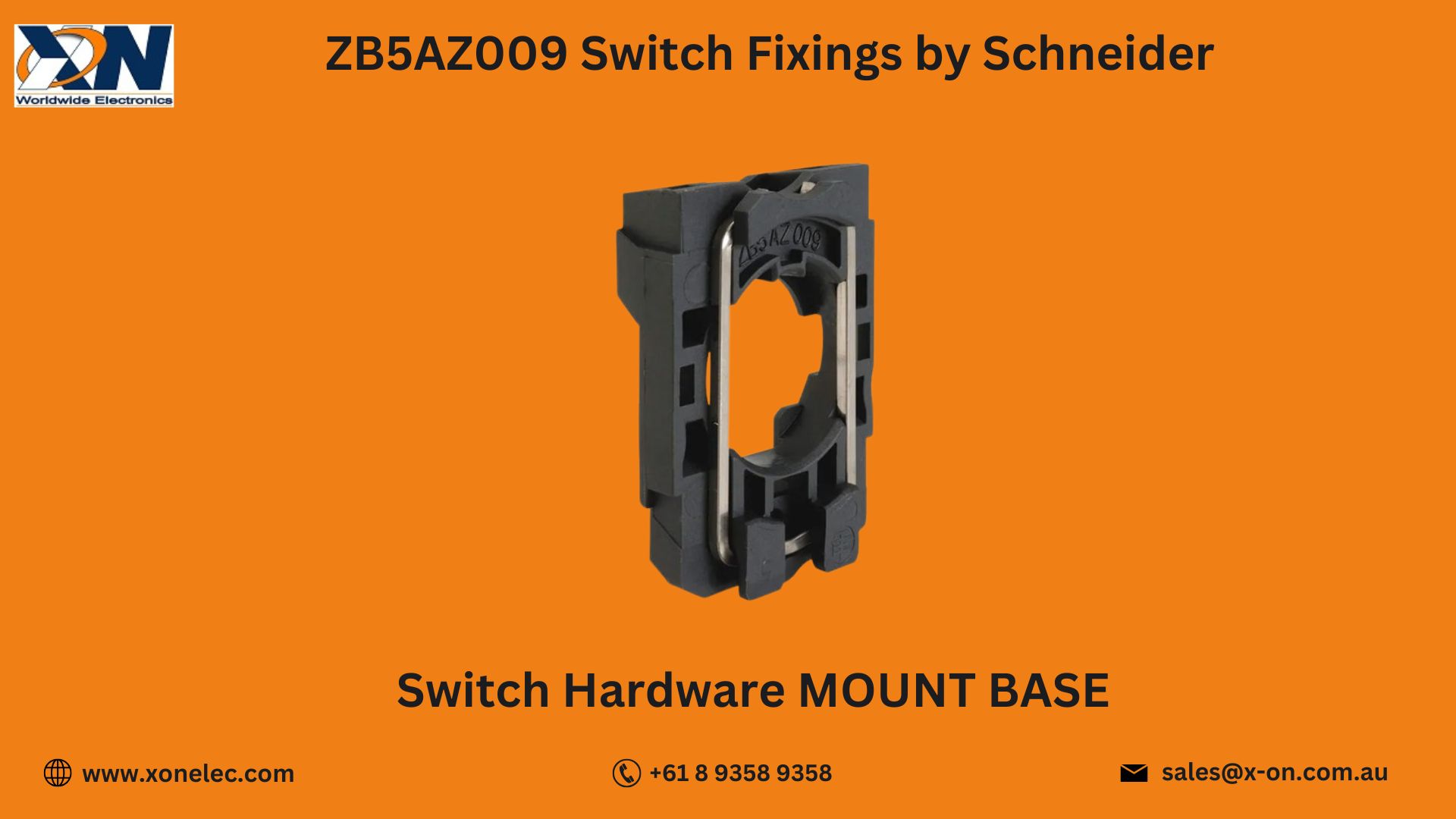

ZB5AZ009 Switch Fixings by Schneider – Reliable Mounting Solutions for Industrial Panels
The Switch Fixings ZB5AZ009 by Schneider are high-quality mounting accessories designed for securely fixing push buttons and selector switches in industrial control panels. Compatible with the popular XB5 series, these fixings ensure precise alignment, robust assembly, and long-lasting performance in demanding applications.
In this blog, we’ll cover the technical specifications, key features, typical applications, installation overview, datasheet access, and why buying from Xon Electronics is the smart choice. When it comes to dependable fastening in electrical control setups, Switch Fixings by Schneider deliver top-tier results.
Technical Specifications of ZB5AZ009
-
Manufacturer: Schneider Electric
-
Part Number: ZB5AZ009
-
Type: Switch Fixing Collar / Mounting Ring
-
Material: Plastic (Durable Thermoplastic)
-
Compatible Series: XB5 Series (Ø22 mm switches)
-
Mounting Diameter: 22 mm
-
Color: Black
-
Locking Mechanism: Threaded Nut with Grip Teeth
-
Operating Temperature Range: -40°C to +70°C
-
Category: Switch Accessories, Mounting Hardware, Fixings
This fixing accessory provides a firm grip around the mounting hole, preventing rotation and misalignment of the switch actuator.
Key Features of ZB5AZ009 Fixing Accessory
-
Secure Locking Mechanism – Prevents movement of actuators in high-vibration environments
-
Durable Thermoplastic Construction – Withstands thermal cycling and physical stress
-
Quick Installation – Easily tightens with hand or tool, no special equipment needed
-
Standard 22mm Compatibility – Works seamlessly with XB5 push buttons and selectors
-
Panel Stability – Ensures reliable long-term positioning of switch mechanisms
These benefits make the Switch Fixings by Schneider essential components for any high-reliability industrial control panel.
Applications of ZB5AZ009
The ZB5AZ009 Switch Fixings by Schneider are widely used in:
-
Electrical Control Panels
-
Industrial Automation Cabinets
-
Machine Operator Interfaces
-
Motor Control Centers (MCCs)
-
Manufacturing Equipment Consoles
-
Energy and Infrastructure Systems
Engineers rely on Switch Fixings by Schneider for dependable mounting of switches in high-vibration and mission-critical environments.
Mounting and Installation Overview
Installation Steps:
-
Insert the switch actuator through a 22mm panel cutout
-
Position the ZB5AZ009 fixing collar behind the panel
-
Tighten the collar to lock the actuator in place
-
Ensure proper alignment before final tightening
The design ensures fast assembly with consistent mounting torque and reliable hold over time.
Use Case Scenario: Assembly Line Operator Panel
Scenario: An automotive manufacturer needed a reliable mounting solution for push buttons in high-vibration assembly line environments.
Problem: Standard plastic collars were loosening over time, causing control issues.
Solution: The ZB5AZ009 Switch Fixings by Schneider provided a secure, anti-rotation grip and robust construction.
Result: Enhanced stability, reduced maintenance calls, and consistent actuator positioning in all panels.
Download Datasheet for c
Need detailed dimensions, materials, or compliance specs?
Download ZB5AZ009 Datasheet from Xon Electronics
(Insert product link when available)
Why Buy from Xon Electronics?
Xon Electronics stocks a full range of Schneider switch components, including the ZB5AZ009 Switch Fixings by Schneider, with:
- 100% Original Schneider Electric Parts
- Global Shipping – USA, India, Australia, Europe & More
- Bulk Availability for OEMs and Contractors
- Expert Support for Electrical Design & Integration
- Secure, Fast Online Orders with Worldwide Fulfillment
Visit www.xonelec.com to order quality components trusted by industry leaders.
Conclusion
The ZB5AZ009 Switch Fixings by Schneider offer a dependable, cost-effective way to secure 22mm switches in industrial environments. Whether you’re designing new panels or upgrading existing ones, this accessory ensures your actuators stay firmly in place. Available now at Xon Electronics with international delivery to the USA, India, Australia, Europe, and other regions.
FAQs – ZB5AZ009 Switch Fixings
Q1. What is the ZB5AZ009 used for?
It is used to securely fix 22mm XB5 series switches into panel cutouts.
Q2. Is it compatible with non-Schneider switches?
It’s designed specifically for Schneider’s XB5 series, but may fit others with 22mm cutouts.
Q3. Can it withstand industrial temperatures?
Yes, it operates between -40°C and +70°C.
Q4. How do I install it?
Position it behind the panel and tighten to secure the switch actuator.
Q5. Where can I purchase it globally?
You can buy it from www.xonelec.com with shipping to USA, India, Australia, Europe, and more.
