Part No.3659-20 SF
Manufacturer: 3M
Category: Flat Cables

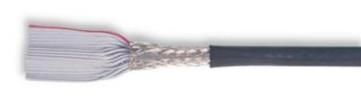

Description: ROUND-TO-FLAT CABLE, 20 CONDUCTOR, 100FT 28AWG
Datasheet: 3659-20 SF Datasheet (PDF)
This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges



Price (USD)
1: USD 346.7503 ea
Line Total: USD 346.75
Availability - 0
MOQ: 1  Multiples: 1
Pack Size: 1
