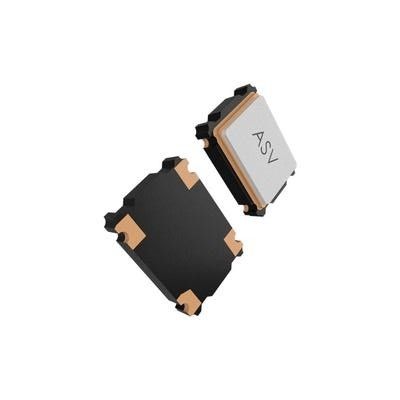

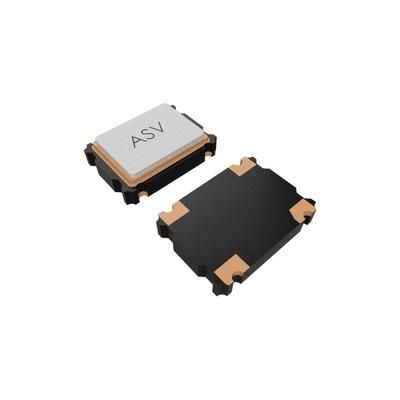

ASV-25.000MHZ-ECS-50-T ABRACON

3.3Vdc HCMOS SMD Crystal Clock Oscillator Pb RoHS/RoHS II compliant ASV SERIES ESD Sensitive 7.0 x 5.08 x 1.8 mm Moisture Sensitivity Level (MSL) This product is Hermetically Sealed and not Moisture Sensitive - MSL = N/A: Not Applicable FEATURES: APPLICATIONS: HCMOS, 3.3Vdc, 2.5Vdc, & 1.8Vdc options Clock signaling for Processors, PC Motherboards & Graphic Cards Suitable for RoHS reflow Seam sealed package assures high reliability High output drive capability (up to 50pF) STANDARD SPECIFICATIONS: Parameters Minimum Typical Maximum Units Notes Frequency Range 0.312 200 MHz Operating Temperature -10 +70 C See options Storage Temperature -55 +125 C Overall Frequency Stability -100 +100 ppm See options Supply Voltage (Vdd) +2.97 3.3 +3.63 V See options 2.0 10.0 0.312 ~ 14.9 MHz 3.6 15.0 15.0 ~ 29.9 MHz 5.6 20.0 30.0 ~ 39.9 MHz 40.0 ~ 49.9 MHz 7.2 25.0 50.0 ~ 59.9 MHz Supply Current (Idd) mA 13.3 30.0 60.0 ~ 79.9MHz 19.0 35.0 80.0 ~ 99.9 MHz 20.2 45.0 100.0 ~ 125.0MHz 23.7 50.0 125.1 ~ 165 MHz 27.2 65.0 Symmetry 1/2Vdd 40 50 60 % See options 3.0 5.0 0.312 ~ 14.9 MHz 2.8 4.0 15.0 ~ 29.9 MHz 2.6 4.0 30.0 ~ 39.9 MHz 4.0 40.0 ~ 49.9 MHz 2.4 4.0 50.0 ~ 59.9 MHz Rise and Fall Time (Tr/Tf) ns 2.2 60.0 ~ 79.9MHz 2.2 4.0 80.0 ~ 99.9 MHz 2.0 4.0 100.0 ~ 125.0MHz 1.8 4.0 125.1 ~ 165 MHz 1.5 4.0 Output Load See options 15 pF V OH 0.9 x Vdd V Output Voltage V OL 0.4 V Visit www.abracon.com for Terms & Conditions of Sale Revised: 09.02.14 ABRACON IS ABRACON IS 30332 Esperanza, Rancho Santa Margarita, California 92688 ISO9001:2008 CECERRTIFIED TIFIED tel 949-546-8000 fax 949-546-8001 www.abracon.com3.3Vdc HCMOS SMD Crystal Clock Oscillator Pb RoHS/RoHS II compliant ASV SERIES ESD Sensitive 7.0 x 5.08 x 1.8 mm (Continued) Parameters Minimum Typical Maximum Units Notes 0.312 ~ 14.9 MHz 0.4 4.0 15.0 ~ 29.9 MHz 0.4 4.0 30.0 ~ 39.9 MHz 2.0 4.0 40.0 ~ 49.9 MHz 1.5 4.0 50.0 ~ 59.9 MHz Start-up Time ms 2.9 5.0 60.0 ~ 79.9MHz 1.5 5.0 80.0 ~ 99.9 MHz 1.3 5.0 100.0 ~ 125.0MHz 1.8 5.0 125.1 ~ 165 MHz 2.7 5.0 1 (VIH0.7*Vdd) or Open: Oscillation Tri-state function 0 (VIL<0.3*Vdd) : Hi Z 2.5 0.312 ~ 14.9 MHz 3.2 15.0 ~ 29.9 MHz 3.2 30.0 ~ 39.9 MHz 3.2 40.0 ~ 49.9 MHz Period Jitter One Sigma (RMS): 3.2 ps 50.0 ~ 59.9 MHz 3.2 60.0 ~ 79.9MHz 3.0 80.0 ~ 99.9 MHz 2.9 100.0 ~ 125.0MHz 2.9 125.1 ~ 165 MHz Aging at 25C (first year) -5 +5 ppm Disable Current 10 uA Enable Time 3.5 5 ms Disable Time 100 ns Visit www.abracon.com for Terms & Conditions of Sale Revised: 09.02.14 ABRACON IS ABRACON IS 30332 Esperanza, Rancho Santa Margarita, California 92688 ISO9001:2008 CECERRTIFIED TIFIED tel 949-546-8000 fax 949-546-8001 www.abracon.com
