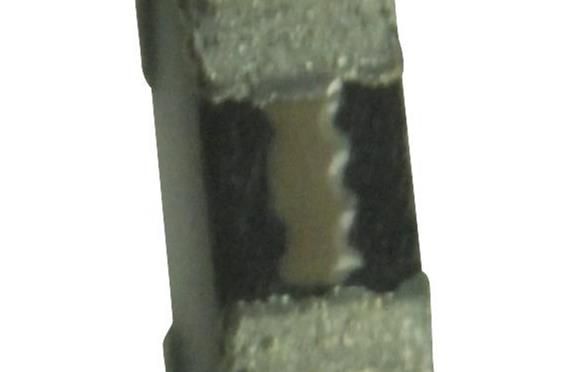

ATFC-0402-2N5B ABRACON

THIN FILM CHIP INDUCTORS RoHS/RoHS II Compliant ATFC-0402 Pb 0.6 x 0.3 x 0.23m m 1.00 x 0.50 x 0.32mm FEATURES: APPLICATIONS: Cell phones and GPS Photolithographic single layer ceramic chip VCO, TCXO Circuit and RF Transceiver Module High SRF, excellent Q, superior temperature stability Wireless LAN, Bluetooth Module, Communication Appliances Tight tolerance 0.1nH available Self resonant frequency controlled within 10% Stable inductance in high frequency circuit Highly stable design for critical needs STANDARD SPECIFICATIONS: PARAMETERS ABRACON P/N: ATFC-0402 -45C to +85C Operating temperature: +253C, 80% RH max Storage temperature: Part Number Tolerance SRF Min R Max I Max DC DC ATFC-0402- L(nH) Q, Min 500MHz (GHz) ( ) (mA) Inductance Code ATFC-0402-0N2 0.2 B, C, S 13 14 0.10 800 ATFC-0402-0N3 0.3 B, C, S 13 14 0.10 800 ATFC-0402-0N4 0.4 B, C, S 13 14 0.10 800 ATFC-0402-0N5 0.5 B, C, S 13 14 0.15 700 ATFC-0402-0N6 0.6 B, C, S 13 14 0.15 700 ATFC-0402-0N8 0.8 B, C, S 13 14 0.15 700 ATFC-0402-0N9 0.9 B, C, S 13 14 0.15 700 ATFC-0402-1N0 1.0 B, C, S 13 12 0.15 700 ATFC-0402-1N1 1.1 B, C, S 13 12 0.15 700 ATFC-0402-1N2 1.2 B, C, S 13 12 0.15 700 ATFC-0402-1N3 1.3 B, C, S 13 10 0.25 700 ATFC-0402-1N4 1.4 B, C, S 13 10 0.25 700 ATFC-0402-1N5 1.5 B, C, S 13 10 0.25 700 ATFC-0402-1N6 1.6 B, C, S 13 10 0.25 560 ATFC-0402-1N7 1.7 B, C, S 13 10 0.25 560 ATFC-0402-1N8 1.8 B, C, S 13 10 0.25 560 ATFC-0402-1N9 1.9 B, C, S 13 8 0.35 560 ATFC-0402-2N0 2.0 B, C, S 13 8 0.35 560 ATFC-0402-2N1 2.1 B, C, S 13 8 0.35 440 ATFC-0402-2N2 2.2 B, C, S 13 8 0.35 440 ATFC-0402-2N3 2.3 B, C, S 13 8 0.35 440 ATFC-0402-2N4 2.4 B, C, S 13 8 0.35 440 ATFC-0402-2N5 2.5 B, C, S 13 8 0.35 440 ATFC-0402-2N6 2.6 B, C, S 13 8 0.35 440 ATFC-0402-2N7 2.7 B, C, S 13 8 0.35 440 ATFC-0402-2N8 2.8 B, C, S 13 6 0.45 380 ATFC-0402-2N9 2.9 B, C, S 13 6 0.45 380 ATFC-0402-3N0 3.0 B, C, S 13 6 0.45 380 ATFC-0402-3N1 3.1 B, C, S 13 6 0.45 380 ATFC-0402-3N2 3.2 B, C, S 13 6 0.45 380 ATFC-0402-3N3 3.3 B, C, S 13 6 0.45 380 ATFC-0402-3N4 3.4 B, C, S 13 6 0.55 380 ATFC-0402-3N5 3.5 B, C, S 13 6 0.55 380 ATFC-0402-3N6 3.6 B, C, S 13 6 0.55 380 ATFC-0402-3N7 3.7 B, C, S 13 6 0.55 340 ATFC-0402-3N8 3.8 B, C, S 13 6 0.55 340 ATFC-0402-3N9 3.9 B, C, S 13 6 0.55 340 ATFC-0402-4N3 4.3 B, C, S 13 6 0.65 320 ATFC-0402-4N7 4.7 B, C, S 13 6 0.65 320 ATFC-0402-5N4 5.4 B, C, S 13 6 0.85 280 ATFC-0402-5N6 5.6 B, C, S 13 6 0.85 280 ATFC-0402-5N9 5.9 B, C, S 13 6 0.85 280 ATFC-0402-6N5 6.5 B, C, S 13 6 1.05 260 ATFC-0402-6N8 6.8 B, C, S 13 6 1.05 260 Visit www.abracon.com for Terms & Conditions of Sale Revised: 06.17.13 ABRACON IS ABRACON IS ISO 9001 / QS 9000 ISO 9001 /2008 30332 Esperanza, Rancho Santa Margarita, California 92688 CECERRTIFIED TIFIED tel 949-546-8000 fax 949-546-8001 www.abracon.comTHIN FILM CHIP INDUCTORS RoHS/RoHS II Compliant ATFC-0402 Pb 0.6 x 0.3 x 0.23m m 0.60 x 0.30 x 0.23mm Key Electrical Specifications (Cond) Part Number Tolerance SRF Min RDC Max IDC Max ATFC-0402- L(nH) Q, Min 500MHz (GHz) ( ) (mA) Inductance Code ATFC-0402-7N2 7.2 B, C, S 13 6 1.05 260 ATFC-0402-8N0 8.0 B, C, S 13 5.5 1.25 220 ATFC-0402-8N1 8.1 B, C, S 13 5.5 1.25 220 ATFC-0402-8N2 8.2 B, C, S 13 5.5 1.25 220 ATFC-0402-9N1 9.1 B, C, S 13 5.5 1.25 220 ATFC-0402-10N 10.0 F, G, H, J 13 4.5 1.35 200 ATFC-0402-10N8 10.8 F, G, H, J 13 4.5 1.35 200 ATFC-0402-12N 12.0 F, G, H, J 13 3.7 1.55 180 ATFC-0402-13N8 13.8 F, G, H, J 13 3.7 1.75 180 ATFC-0402-15N 15.0 F, G, H, J 13 3.3 1.75 130 ATFC-0402-17N 17.0 F, G, H, J 13 3.1 1.95 100 ATFC-0402-18N 18.0 F, G, H, J 13 3.1 2.15 100 ATFC-0402-20N8 20.8 F, G, H, J 13 2.8 2.55 90 ATFC-0402-22N 22.0 F, G, H, J 13 2.8 2.65 90 ATFC-0402-27N 27.0 F, G, H, J 13 2.5 3.25 75 ATFC-0402-33N 33.0 J 13 2.5 4.50 75 Test Conditions and Equipments Inductance (L) a. Test equipment: Agilent4287A+Agilent16196C b. Test frequency: 500MHz PART IDENTIFICATION: ATFC- 0402- - Packaging Inductance Tolerance Inductance Code T: Tape and Reel B: 0.1nH Please refer to the (10kpcs reel) table above C: 0.2nH S: 0.3nH F: 1% G: 2% H: 3% J: 5% OUTLINE DIMENSIONS: Recommended Land Pattern A D B C A B C A B C D 0.50 0.45 0.600.2 1.00.05 0.50.05 0.320.05 0.200.10 Dimension: mm Visit www.abracon.com for Terms & Conditions of Sale Revised: 06.17.13 ABRACON IS ABRACON IS ISO 9001 / QS 9000 ISO 9001 /2008 30332 Esperanza, Rancho Santa Margarita, California 92688 CECERRTIFIED TIFIED tel 949-546-8000 fax 949-546-8001 www.abracon.com
