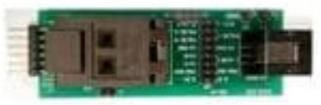

Socket Boards for Evaluating 1-Wire Devices Evaluates: DS9120 General Description Features The DS9120 family of socket boards are RJ11-to-socket S Fully Compliant with DS9481R USB-to-1-Wire boards that provide the hardware connectivity necessary Adapter M to evaluate and operate 1-Wire products in an easy-to- S Convenient On-Board Test Points use PC environment. Additionally, the socket boards can S Jumper Disconnect/Connect Functionality be readily used with the DS9481R USB-to1-Wire adapter S Meets RJ11 1-Wire Interface Standard to create a 1-Wire PC programmer for 1-Wire EEPROM and one-time programmable (OTP)/EPROM devices. S Include Connections for Various OTP EPROM Programming Socket Board Contents List Socket Board (Included with Each Order) (Shown with DS9120P) QTY DESCRIPTION 1-Wire socket board 1 Maxim DS9120* RJ11 cable assembly 1 I.O. Interconnect 1 Instruction sheet *See the Ordering Information table for package type/part number options. Support Resources 1) DS9120 Family of 1-Wire Socket Boards: www.maximintegrated.com/DS9120 2) DS9481R USB-to-1-Wire/iButton Adapter: www.maximintegrated.com/DS9481R 3) 1-Wire Technical Support: Socket Boards for Evaluating 1-Wire Devices Evaluates: DS9120 Selector Guide MAXIM ORDERING SOCKET MANUFACTURER/PART DESCRIPTION PART NUMBER NUMBER DS9120+ Mill-Max 801-93-036-10-012000 TO-92 Socket with RJ11 Connector DS9120P+ QSYQ TSOC-6-2 Dual TSOC and TO-92 Sockets with RJ11 Connector DS9120Q+ Plastronics 06QN10T23030-H TDFN and TO-92 Sockets with RJ11 Connector Maxim Integrated 2
