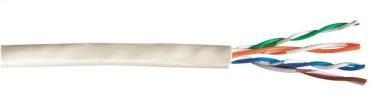

GenSPEED Category 5e Cables Datacom GenSPEED 5000 Category 5e Cable Standards-Compliant Extended Frequency Features and Benefits Engineered to provide stable and continuous performance Performance guaranteed to 200 MHz TRU-Mark print legend contains footage markings from 1000 to 0 CONSTRUCTION Third-party verified for guaranteed Color Code Conductors performance Pair 1: Blue-White/Blue 24 AWG solid bare annealed copper Made in U.S.A. Pair 2: Orange-White/Orange Insulation Pair 3: Green-White/Green Non-Plenum: Polyolefin Applications Pair 4: Brown-White/Brown Plenum: Fluoropolymer/Dual-Layer IEEE 802.3: 1000 BASE-T, 100 BASE-TX, Polyolefin Jacket 10 BASE-T, PoE, PoE+ Rip Cord Non-Plenum: Flame-Retardant PVC CDDI, Token Ring, ATM Applied longitudinally under jacket Plenum: Low-Smoke, Flame-Retardant Broadband and Baseband Analog Video PVC Standard Compliances ANSI/TIA 568-C.2 NEC/CEC Type CMR (UL 1666) PHYSICAL DATA for Non-Plenum CMR (Non-Plenum) CMP (Plenum) NEC/CEC Type CMP (NFPA 262) for Plenum Nominal Cable Diameter (in) 0.195 0.180 UL 444 Nominal Cable Weight (lbs/1000 ft) 19 21 RoHS Compliant Directive 2011/65/EU Minimum Bend Radius (in) 1.0 1.0 ANSI/TIA 862 (Building Automation) Maximum Pulling Force (lbs) 25 25 ICEA S-90-661 Temperature Rating (C) ISO/IEC 11801 Ed. 2.0 (Class D) Installation: 0 to +60 0 to +60 Operation: -20 to +75 -20 to +75 PART NUMBERS Standard packaging: 1000 Pull-Pac Il TIA 568-C.2 Pull-Pac Il Spool-Pac Spool CMR CMP CMR CMP CMR CMP Jacket Color (Non-Plenum) (Plenum) (Non-Plenum) (Plenum) (Non-Plenum) (Plenum) Blue 5133299E 5131278E 5133374E 5131431E 5133300E 5131282E White 5133255E 5131361E 5133342E 5131450E 5133250E 5131365E Yellow 5133289E 5131379E 5133448E 5131546E 5131648E Gray 5133200E 5131418E 5133329E 5131456E 5133204E 5131475E Red 5133274E 5131477E 5133427E 5131553E 5131383E Orange 5133383E 5131422E 5133667E Green 5133512E 5131547E 5133693E 5131575E 5133649E 5131649E Black 5133696E 5131683E 5131689E Pink 5133290E 5131380E 5133447E 5131478E Purple 5133445E 5131730E Note: Bulk reels are available as a special request with a maximum allowable length of 3000 feet per reel. Minimum run and lead time may apply. Data subject to change without notice. Non-stock items may be subject to minimum order quantities. 43X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for carol manufacturer: Other Similar products are found below : 01364.35T.01 C1321.41.01 C2015A.12.04 C4066A.38.10 01104.99.01 01343.35T.01 02728-85-01 5133290E 2133016 16065.41.01 5131431E 09814.99.01 E2206S.41.86 E1524S.41.03 E2534S.41.03 C2016A.12.03 C2064A.12.02 C0570A.41.10 C1343A.41.10 C1357.41.90 C2405A.41.10 C1352A.41.10 C2536A.38.10 C1361.38.90 E2204S.41.02 E3612S.41.03 E1032S.25.10 02604.41T.05 02605.41T.05 02608.41T.05 02632.35T.05 02634.41T.05 02601.41T.05 01360.35T.01 01342.35T.01 C-8002-12 01380.35T.01 01774.35T.01 5133274E C2040A.21.03 C2104A.12.06 C1302.41.01 E2032S.41.10 E2242S.41.86 E1502S.25.03 E2004S.18.10 02601.35T.05 02602.35T.05 02635.35T.05 06200.61.06L
