452106 Elesa & Ganter

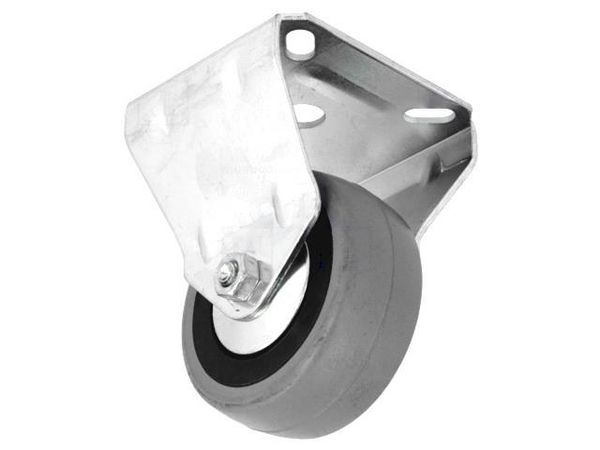

RE.C7 Vulcanised rubber wheels for the general public technical informations Covering Grey anti-trace vulcanised rubber. Centre Polyamide-based technopolymer (PA). Resistant to solvents, oils and other chemicals. Bore Directly made into the centre. Axle set Calibrated zinc-plated steel precision tube. The tube serves as a spacer, is tightened to the bracket with screw and nut to a un predetermined torque value. The wheel bore rotates onto the tube freely. Standard executions- PBL: brakeless wheel with zinc-plated steel fixed bracket. - SBL: brakeless wheel with zinc-plated steel turning plate and bracket. - SBF: wheel with brake and zinc-plated steel turning plate with bracket. - CBL: brakeless wheel with zinc-plated steel turning plate and bracket with assembly stem. - CBF: wheel with brake with zinc-plated steel turning plate and bracket with assembly stem. - FBL: brakeless wheel with zinc-plated steel turning plate with bracket and assembly pass thorugh hole. - FBF: wheel with brake and zinc-plated steel turning plate and bracket, assembly pass through hole. Fixed plate bracket Electrolytically zinc-plated steel plate bracket. Turning plate bracket The presence of two ball turns and the direct contact between the plate and the ball race ring with built-in pin ensure excellent manoeuvrability and very limited clearance. Front-actuated brake Brake that locks the wheel rotation. The optimised dimensions and the retractible pedal ensure minimal space occupied and maximum actuation ease. Applications Wheels for the general public, excellent smoothness and elasticity features. Environmental conditions The wheel RE.C7 is suitable for use in humid environments and in the presence of medium-aggressive chemical environments use in environments with the presence of organic, chlorinated solvents, hydrocarbons and mineral oils is not recommended.
