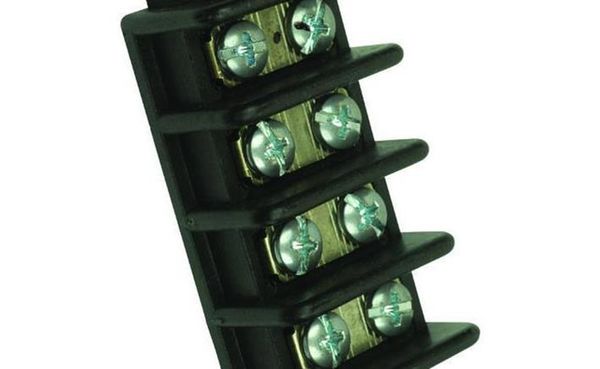

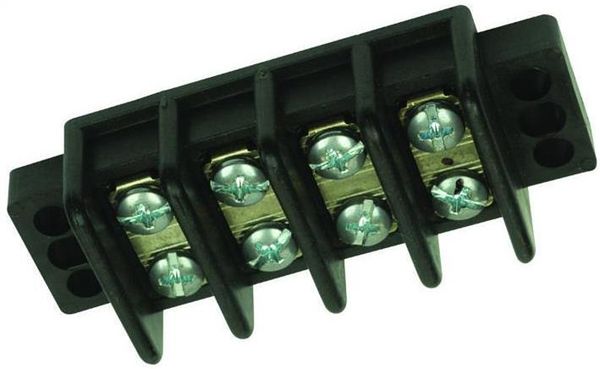

Wire Termination Terminal Strips Heavy-duty, corrosion-resistant screws, surface plates and optional hardware Accessory hardware provides a variety of termination options Available cover helps prevent contact with live terminals Rugged polyester thermoplastic base (UL Rated 94V-0) Operating temperature rated from 130C (260F) to -40C (-40F) UL Recognized (E62622) and CSA Certified (LR15364) No. of Poles Center Spacing Wire Range (AWG Cu) Recommended Torque Terminal Screw Size Cat. No. 89-200 Series, 30A/600V UL/CSA (Max. electrical rating 30A/250V when used with optional quick connects) 2 89-202 3 89-203 4 89-204 8-32 Philslot 6 .562 in. (14.28mm) 22 10 16 in. - lb. 89-206 Zinc-Plated Steel 8 89-208 10 89-210 12 89-212 89-300 Series, 300V/30A UL/CSA (Max. electrical rating 15A/125V when used with optional quick connects) 2 89-302 4 89-304 6 89-306 6-32 Philslot .375 in. (9.52mm) 22 14 9 in. - lb. Zinc-Plated Steel 8 89-308 10 89-310 12 89-312 89-400 Series, 30A/300V UL/CSA 2 89-402 4 89-404 6 89-406 6-32 Philslot .437 in. (11.10mm) 22 12 9 in. - lb. Zinc-Plated Steel 8 89-408 10 89-410 12 89-412 Standard Black Shorting Block No. of Poles Center Spacing Wire Range (AWG Cu) Recommended Torque Terminal Screw Size Cat. No. Cat. No. 89-500 Series, 60A/600V UL/CSA (Max. electrical rating 60A/600V achieved only when used with 6 AWG copper wire crimped to ring terminal) 4 89-504 89-505 6 89-506 89-507 10-32 Slotted .625 in. (15.88mm) 22 6 20 in. - lb. Nickle-Plated Brass 8 89-508 89-509 12 89-512 89-513 A-17 1-800-435-0705 for Customer Service www.idealindustries.com Terminal StripsTerminal Strips Accessories Jumpers Covers Helps prevent contact with Provides easy connection Flat 12-Circuit live terminals of multiple circuits For Use with For Use with 89-200 89-300 89-400 89-500 No. of Circuits Clear Clear Clear Clear Cat. No. Cat. No. Cat. No. Cat. No. Flat Slip-on 2 89-233 89-334 89-434 Over Barrier 3 89-234 Slip-on 4 89-235 89-335 89-435 89-514 6 89-236 89-336 89-436 89-516 For Use with 8 89-237 89-337 89-437 89-518 Flat Over Barrier Terminal Center Slip-on 12-Circuit 10 89-238 89-338 89-438 Strip Spacing Flat Slip-on Cat. No. Series (Inches) Quantity Cat. No. Cat. No. 12 89-239 89-339 89-439 89-520 10 89-229 89-224 89-200 .562 100 89-230 Quick Connects 10 89-323 89-324 Flat - None 89-300 .375 Allows fast, flexible 100 89-330 circuit changes Flat - Flat 10 89-423 89-424 89-400 .437 100 89-430 For Use with 89-500 .625 2 89-525 Terminal Strip Tab Size Flat -None Flat - Flat Quantity Series (Inches) Cat. No. Cat. No. 89-300 .187 x .020 10 89-314 89-317 89-200 & 89-400 .250 x .031 10 89-414 89-417 Barrier Strips Recessed screws and tubular contacts provide added safety and help prevent short circuits Tubular contacts connect stripped, un-terminated solid or stranded wire directly to each contact Integrated wire protectors prevent twisting and breakage of stranded wire during connection Modular 12-circuit design can be cut into smaller sections, or stacked end-to-end Rugged nylon construction, UL 94V2 Operating temperature rated to 105C (221F) Cat. No. Electrical Ratings Wire Range (AWG) No. of Circuits Torque in.- lb. Model No. 20A/300V UL 22 - 12 12 3.5 PA8DS 89-608 10A/400V CSA 20 - 18 30A/300V UL 22 - 10 12 4.4 PA10DS 89-610 20A/400V CSA 18 - 14 35A/300V UL/CUL 22 - 10 12 7.0 PA12DS 89-612 50A/300V UL/CUL 20 - 8 12 12.0 PA14DS 89-614 A-18 www.idealindustries.com 1-800-435-0705 for Customer Service
