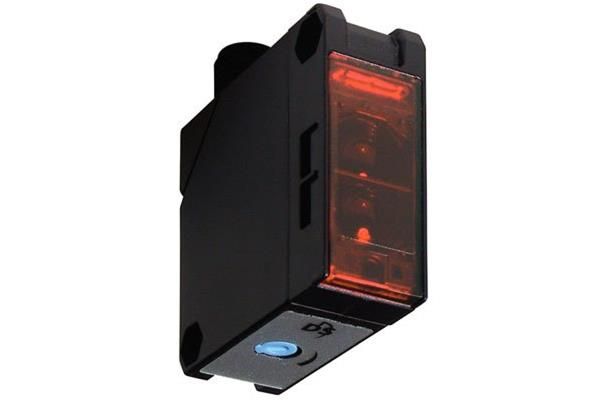

50 x 50 mm COMPACT SENSORS
Background and foreground suppression models
Free voltage versions with relay output
10-30 Vdc version with transistor output
Standard cable or M12 connection
S6 SERIES
The S6 series, thanks to the excellent detection performances and the variety of
power supply and connection possibilities, offers the most complete universal
sensor range in the compact 50x50 mm housing.
The operating distance can be set to the optimal value in each model: 2 m diffuse
proximity, 25 or 50 cm background suppression, 5 m polarised retroreflex, 1 m
retroreflex versions for transparent objects and 20 m through beam.
Proximity models with 5 to 20 cm foreground suppression and 12 to 110 cm
background suppression are available.
The free voltage versions have a relay output and cable connection. The versions
with 10-30 Vdc power supply present cable connection and NPN/PNP output or
M12 connector, with either PNP output with dark/light configuration and PNP
double NO-NC output complying to the EN 60947-5-2 standard.
UNIVERSAL COMPACT SENSORSTECHNICAL DATA DETECTION DIAGRAMS
Power supply: ............................................... 10 ... 30 Vdc (d.c. vers.), reverse polarity
Grey R18% White R90%
protection
15 ... 264 Vac (free voltage vers.)
Consumption: ............................................... 30 mA max. (d.c. vers.)
40 mA max. (free voltage vers.)
Light emission: ............................................. infrared LED 880 nm
red LED 660 nm (B3, T1, M10 vers.)
S6-x-C90-x
Diffuse proximity operating distance: ........ 1 ... 90 cm (C90 vers.)
5 ... 200 cm (C200 vers.)
White R90%
Grey R18%
Background suppression op. distance: ..... 10 ... 50 cm (M50 vers.)
3 ... 25 cm (M25 vers.), 10 cm (M10 vers.)
Foreground suppression op. distance: ...... 5 ... 20 cm (Backgr. suppr.: 12 ... 110 cm)
Retroreflex operating distance: .................. 0.1 ... 6 m (on R2)
Polarised retroreflex operating distance: .. 0.1 ... 5 m (on R2)
S6-x-C200-x
Retroreflex transparents op. distance: ...... 0.1 ... 1 m (on R2)
Through beam operating distance: ............ 0 ... 20 m
Grey R18%
White R90%
Setting: .......................................................... sensitivity trimmer (G vers. excluded)
distance adj. screw (M25, M50, N20 vers.)
Indicators: ..................................................... red OUTPUT LED
green STABILITY LED (M, N vers.)
red POWER LED (G5 vers.)
Output type: .................................................. NPN/PNP configurable (d.c. vers.)
S6-x-M10-x
PNP (S6T vers.)
PNP NO-NC (S6R vers.)
Grey R18%
White R90%
relay SPDT 250V/3A (free voltage vers.)
Saturation tension: .......................................1.5 V max. (d.c. vers.)
Output current: ............................................. 100 mA max., short-circuit protection
3 A max. resistive load (free voltage vers.)
Response time: .............................................1 ms max. (d.c. vers.), 2 ms max. (F vers.)
S6-x-M25-x
30 ms max. (free voltage vers.)
Switching frequency: ................................... 500 Hz max., 250 Hz max.(F/G vers. in d.c.)
Grey R18% White R90%
16 Hz max. (free voltage vers.)
Operating mode: ...........................................dark/light configurable
Auxiliary functions: ...................................... test + and test - inputs (G vers. in d.c.)
Connection: ...................................................4-pole M12 connector (S6T/S6R vers.)
2 m 6 mm cable (S6 vers.)
Electrical protection: ....................................class 1 (free voltage vers.)
S6-x-M50-x
class 2 (d.c. vers.)
Mechanical protection: ................................ IP65
Housing material: ......................................... ABS
Lens material: ............................................... PMMA plastic
Weight: .......................................................... 40 g max. (connector vers.) detection area
160 g max. (cable vers.)
Operating temperature: ................................-25 ... +55C
foreground suppr.
Storage temperature: ................................... -25 ... +70C
S6-x-N20-x
Reference standard: ..................................... EN 60947-5-2
Certifications: ............................................... ( d.c.vers.)
The detection diagrams indicate the typical
The operating distances indicate the detection distance with excess gain 2. operating distance with excess gain 1.
UNI EN ISO9001 UNI EN ISO14000
background suppr.
