X-On Electronics has gained recognition as a prominent supplier of BAS 70-02L E6327 Schottky Diodes & Rectifiers across the USA, India, Europe, Australia, and various other global locations. BAS 70-02L E6327 Schottky Diodes & Rectifiers are a product manufactured by Infineon. We provide cost-effective solutions for Schottky Diodes & Rectifiers, ensuring timely deliveries around the world.

BAS 70-02L E6327 Infineon

Name: BAS 70-02L E6327
Brand: Infineon
SKU: BAS7002LE6327_Infineon
Availability: InStock
Rating: 5 (11 reviews)

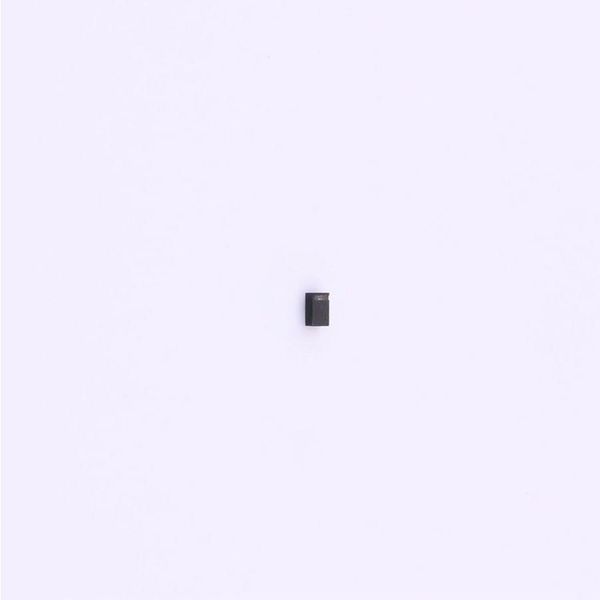

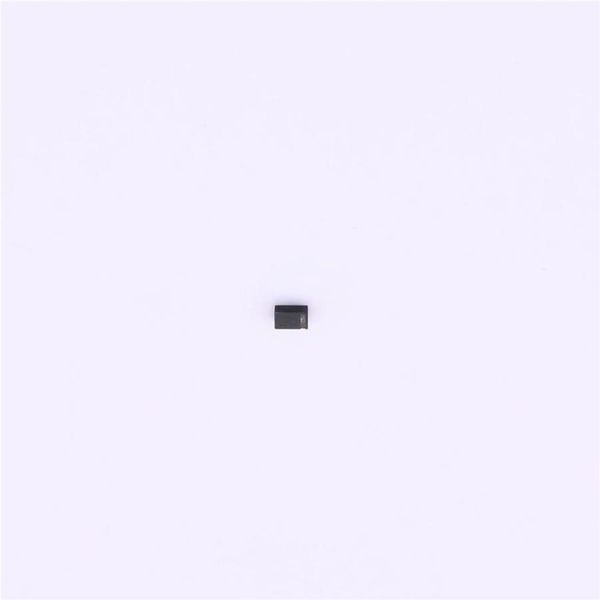

BAS 70-02L E6327 electronic component of Infineon

BAS 70-02L E6327 Schottky Diodes & Rectifiers

Images are for reference only
See Product Specifications

Part No.	BAS 70-02L E6327
Manufacturer:	Infineon
Category:	Schottky Diodes & Rectifiers
Description:	Schottky Diodes & Rectifiers Silicon Schottky Didode
Datasheet:	BAS 70-02L E6327 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 0.3375 ea
Line Total: USD 0.34

Availability - 23540
Ship by Wed. 07 May to Fri. 09 May

MOQ: 1 Multiples: 1
Pack Size: 1

BAS 70-02L E6327 More Buying Options & Price Grid(s)

Please wait...

Availability Price Buy Price Quantity

23540

Ship by Wed. 07 May to Fri. 09 May

MOQ : 1
Multiples : 1

1 : USD 0.3375
10 : USD 0.2025
100 : USD 0.1308
500 : USD 0.1001
1000 : USD 0.0946
2500 : USD 0.088
15000 : USD 0.0847

Specifications

Manufacturer

Infineon Infineon

Product Category

Schottky Diodes & Rectifiers Schottky Diodes & Rectifiers

RoHS - XON

Y Y

Product

Schottky Diodes Schottky Diodes

Mounting Style

Smd/Smt Smd/Smt

Package / Case

TSLP TSLP

Configuration

Single Single

Technology

Si Si

If - Forward Current

70 mA 70 mA

Vrrm - Repetitive Reverse Voltage

70 V 70 V

Vf - Forward Voltage

880 mV 880 mV

Ifsm - Forward Surge Current

100 mA 100 mA

Ir - Reverse Current

0.1 uA 0.1 uA

Pd - Power Dissipation

250 mW 250 mW

Minimum Operating Temperature

- 55 C - 55 C

Maximum Operating Temperature

+ 125 C + 125 C

Series

Bas70 - 02L Bas70 - 02L

Packaging

Reel Reel

Operating Temperature Range

+ 150 C + 150 C

Brand

Infineon Technologies Infineon Technologies

Forward Continuous Current

0.07 A 0.07 A

Max Surge Current

0.1 A 0.1 A

Forward Voltage Drop

1 v @ 0.015 a 1 v @ 0.015 a

Maximum Reverse Leakage Current

0.1 uA @ 50 v 0.1 uA @ 50 v

Peak Reverse Voltage

70 V 70 V

Factory Pack Quantity :

15000 15000

Height

0.45 mm 0.45 mm

Length

1 mm 1 mm

Width

0.6 mm 0.6 mm

Cnhts

8541100000 8541100000

Hts Code

8541100060 8541100060

Mxhts

85411001 85411001

Product Type

Schottky Diodes & Rectifiers Schottky Diodes & Rectifiers

Subcategory

Diodes & Rectifiers Diodes & Rectifiers

Taric

8541100000 8541100000
