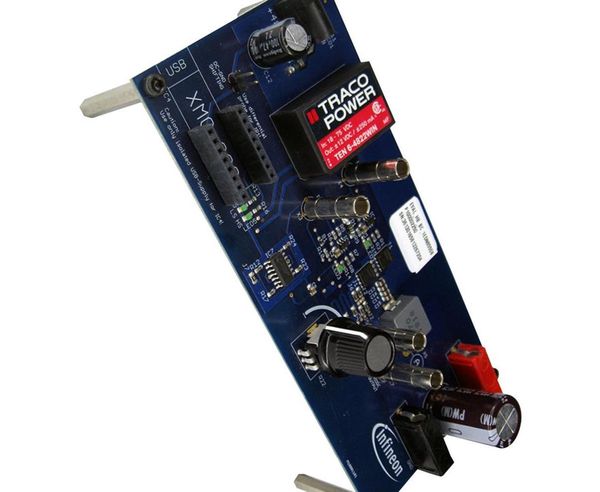

EVALHBBC1EDN8550BTOBO1 Infineon

EiceDRIVER 1EDNx550 Single-channel high-side and low-side gate driver with high-CMR TDI inputs Description EiceDRIVER 1EDNx550 is part of the TDI family of single-channel high- side and low-side gate driver ICs. The TDI family has a fully differential input circuitry. The truly differential inputs (TDI) provide excellent common-mode robustness (CMR) and eliminates the risk of false triggering. The small package footprints enable versatile layout in both low-side and high-side driving. SOT23-6 TSNP-6 Product features Topologies Very large common-mode input voltage 4-pin Kelvin-source MOSFETs in boost PFCs range (CMR static) up to 200 V, configurable Low-side driving with high PCB parasitic inductance with common mode resistors High-side driving in switched tank converters Separate low impedance source (4 A) and High and low-side driving in half and full-bridges sink (8 A) outputs Driving SJ and SiC MOSFETs, GaN HEMTs 45 ns propagation delay (-7/+10 ns accuracy) Switches requiring negative drive voltage Four UVLO options: 4 V, 8 V, 12 V and 15 V Applications SOT23-6 or TSNP-6 small packages Fully qualified according to JEDEC for Server, telecom and industrial SMPS industrial grade applications DC-DC converters and bricks Power tools, motor control Table 1 Product portfolio 1) 1) Part number Package UVLO ON/OFF Output current Max. CMR static Max. CMR dynamic 1EDN7550U PG-TSNP-6 4.2 V / 3.9 V 1EDN7550B 1EDN8550B 8.0 V / 7.0 V -8 A / +4 A 200 V 400 V PG- SOT23-6 1EDN6550B 12.2 V / 11.5 V 1EDN9550B 14.9 V / 14.4 V Driving Kelvin source MOSFET Driving medium voltage half-bridge V BUS EiceDRIVER Dboot VDD Rboot 1EDNx550 SGND D Rin-HS 4-pin EiceDRIVER IN- OUT SNK VDD R gOFF HS Controller MOSFET 1EDNx550 OUT SRC ZVDD Controller GND SGND G R RgON HS in+HS RIN- D S IN+ GND VDD IN- OUT SNK RgOFF PWM 1 Cboot SGND GND OUT SRC DVRin G RgON Vphase PWM Out IN+ VDD EiceDRIVER RIN+ PWM2 RVDD CVDD 1EDNx550 LS vLS D Rin-LS SS GND IN- OUT SNK S RgOFF LS SGND GND OUT SRC PGND RgON LS G Rin+LS S IN+ VDD CVDD PGND Figure 1 EiceDRIVER 1EDNx550 driving Kelvin-source MOSFET and half-bridge power stages 1 CMR static and dynamic for the application depends on input resistors. Please see Chapter 6.1 Datasheet Please read the Important Notice and Warnings at the end of this document Rev.2.3 www.infineon.com 2021-11-12 EiceDRIVER 1EDNx550 Single-channel high-side and low-side gate driver with high-CMR TDI inputs Table of contents Table of contents Description .1 Table of contents . 2 1 Pin configuration and description . 3 2 Block diagram 4 3 Functional description 5 3.1 Truly differential input (TDI) 5 3.1.1 Common-mode input range 6 3.2 Driver outputs .6 3.3 Supply voltage and undervoltage lockout (UVLO) . 7 4 Electrical characteristics and parameters 8 4.1 Absolute maximum ratings . 8 4.2 Thermal characteristics 9 4.3 Operating range 10 4.4 Electrical characteristics 10 4.5 Timing diagram 13 5 Typical characteristics . 14 6 Application and implementation . 17 6.1 Input resistor dimensioning . 17 6.2 Half-bridge driving . 17 6.3 Switches with Kelvin-source connection (4-pin packages) 18 6.4 Applications with significant parasitic PCB-inductances 19 6.5 Switches with bipolar gate drive . 20 7 Layout guidelines . 21 8 Package information 23 8.1 Device numbers and markings . 23 8.2 PG-SOT23-6 package 23 8.3 PG-TSNP-6 package .26 9 List of abbreviations . 28 References 29 Revision history . 30 Disclaimer 31 Datasheet 2 Rev.2.3 2021-11-12
