L-2060ED Kingbright

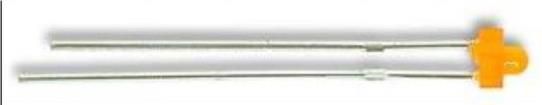

1.8mm SOLID STATE LAMP Part Number: L-2060ED Orange Features Description z 1.8mm diameter small size LED lamp. The Orange source color devices are made with Gallium z Reliable and rugged. Arsenide Phosphide on Gallium Phosphide Orange Light z Versatile mounting on P.C. board or panel. Emitting Diode. z RoHS compliant. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is 0.25(0.01 ) unless otherwise noted. 3. Lead spacing is measured where the leads emerge from the package. 4. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice. SPEC NO: DSAB6743 REV NO: V.6 DATE: APR/12/2010 PAGE: 1 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.F.Lv ERP: 1101009374 Selection Guide Iv (mcd) 2 Viewing 10mA Angle 1 Part No. Dice Lens Type Min. Typ. 2 1/2 L-2060ED Orange (GaAsP/GaP) ORANGE DIFFUSED 8 15 70 Notes: 1. 1/2 is the angle from optical centerline where the luminous intensity is 1/2 of the optical peak value. 2. Luminous intensity/ luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25C Symbol Parameter Device Typ. Max. Units Test Conditions peak Peak Wavelength Orange 627 nm IF=20mA D 1 Dominant Wavelength Orange 625 nm IF=20mA 1/2 Spectral Line Half-width Orange 45 nm IF=20mA C Capacitance Orange 15 pF VF=0V f=1MHz VF 2 Forward Voltage Orange 2 2.5 V IF=20mA IR Reverse Current Orange 10 uA VR = 5V Notes: 1.Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25C Parameter Orange Units Power dissipation 75 mW DC Forward Current 30 mA Peak Forward Current 1 160 mA Reverse Voltage 5 V Operating/Storage Temperature -40C To +85C Lead Solder Temperature 2 260C For 3 Seconds Lead Solder Temperature 3 260C For 5 Seconds Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. 2mm below package base. 3. 5mm below package base. SPEC NO: DSAB6743 REV NO: V.6 DATE: APR/12/2010 PAGE: 2 OF 6 APPROVED: WYNEC CHECKED: Allen Liu DRAWN: Y.F.Lv ERP: 1101009374
