L-474SGT Kingbright

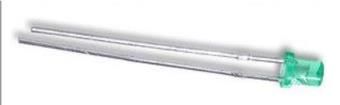

T-1 (3mm) CYLINDRICAL LED LAMP P/N: L-474SGT SUPER BRIGHT GREEN Features Description WIDE VIEWING ANGLE. The Super Bright Green source color devices are made LOW POWER CONSUMPTION. with Gallium Phosphide Green Light Emitting Diode. RELIABLE AND RUGGED. LONG LIFE - SOLID STATE RELIABILITY. RoHS COMPLIANT. Package Dimensions Notes: 1. All dimensions are in millimeters (inches). 2. Tolerance is 0.25(0.01 ) unless otherwise noted. 3. Lead spacing is measured where the leads emerge from the package. 4. Specifications are subject to change without notice. SPEC NO: DSAB6244 REV NO: V.4 DATE: APR/14/2006 PAGE: 1 OF 3 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: Z.K.ZHANGSelection Guide Iv (mcd) 2 V i e w i n g 20mA Angle 1 Part No. Dice Lens Type Min. Typ. 21/2 L-474SGT SUPER BRIGHT GREEN (GaP) GREEN TRANSPARENT 10 25 130 Notes: 1. 1/2 is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value. 2.Luminous Intensity / Luminous Flux: +/-15%. Electrical / Optical Characteristics at TA=25C Symbol Parameter Device Typ. Max. Units Test Conditions Peak Wavelength Super Bright Green 565 nm IF=20mA peak D 1 Dominant Wavelength Super Bright Green 568 nm IF=20mA 1/2 Spectral Line Half-width Super Bright Green 30 nm IF=20mA C Capacitance Super Bright Green 15 pF VF=0V f=1MHz VF 2 Forward Voltage Super Bright Green 2.2 2.5 V IF=20mA IR Reverse Current Super Bright Green 10 uA VR = 5V Notes: 1. Wavelength: +/-1nm. 2. Forward Voltage: +/-0.1V. Absolute Maximum Ratings at TA=25C Parameter Super Bright Green Units Power dissipation 105 mW DC Forward Current 25 mA Peak Forward Current 1 140 mA Reverse Voltage 5 V Operating/Storage Temperature -40C To +85C Lead Solder Temperature 2 260C For 3 Seconds Lead Solder Temperature 3 260C For 5 Seconds Notes: 1. 1/10 Duty Cycle, 0.1ms Pulse Width. 2. 2mm below package base. 3. 5mm below package base. SPEC NO: DSAB6244 REV NO: V.4 DATE: APR/14/2006 PAGE: 2 OF 3 APPROVED: J. Lu CHECKED: Allen Liu DRAWN: Z.K.ZHANG
