CBL-USB2-2824-100 L-Com

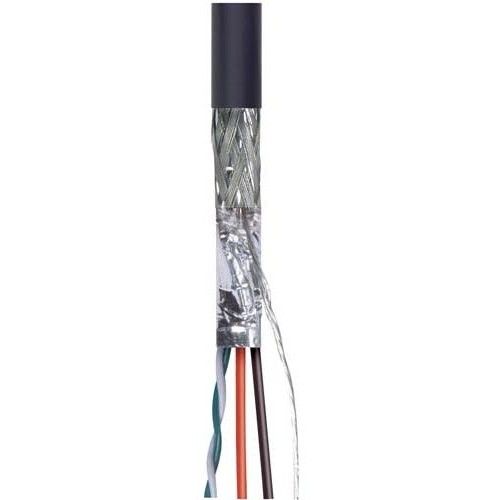

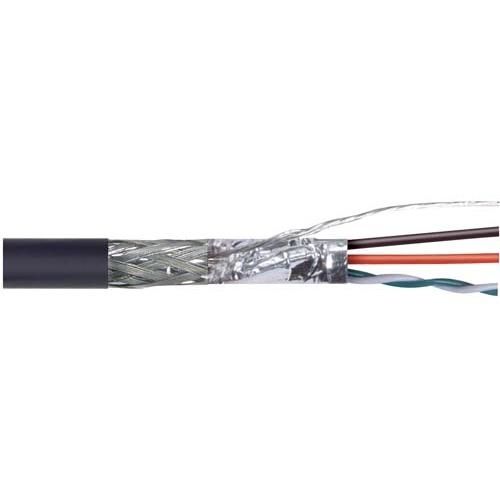

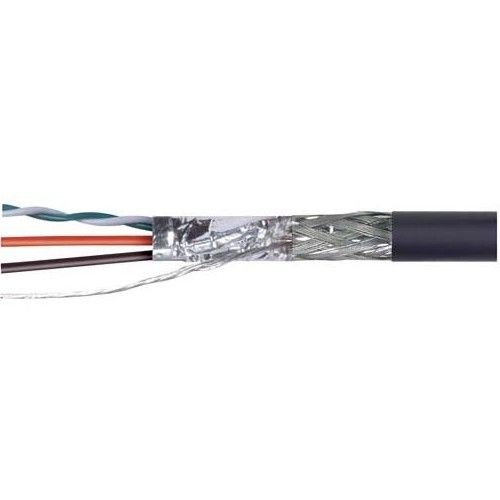

MODEL NO. LENGTH L-com Specification/Procedure CBL-USB2-2824-100 100 FEET CBL-USB2-2824 CBL-USB2-2824-500 500 FEET Revision:C CBL-USB2-2824-1000 1000 FEET Revision Date:04/15/15 Revised By: S.Li USB BULK CABLE SPECIFICATION CROSS-SECTIONAL VIEW COLOR CODE: Twisted Pair Jacket 1. White 1 2 2. Light Green Braided Shield 3. Black Conductor 4. Red 3 4 Drain Wire Al/Mylar Shield Twisted Pair Conductors CONDUCTOR SIZE, IN 28AWG 7X .005 7X .127 24AWG 7X .008 7X .2 MM CONDUCTORS MATERIAL TINNED COPPER STRANDED TINNED COPPER STRANDED MATERIAL POLYOLEFIN SR-PVC INSULATION DIAMETER, IN MM .030 .003 .76 .08 .043 .003 1.10 .08 MATERIAL PVC JACKET DIAMETER, IN MM .177 .006 4.5 0.15 COLOR BLACK MATERIAL ALUMINUM MYLAR FOIL SHIELD COVERAGE 125% MATERIAL TINNED COPPER BRAID COVERAGE 65% CONDUCTOR SIZE, IN 28AWG 7X .005 7X .127 MM DRAIN WIRE MATERIAL TINNED COPPER STRANDED L-COM AWM 2725 60C 30V VW-1 USB CABLE REV. 2.0 28AWG/1P 24AWG/2C Exxxxx MARKING C COLOR WHITE ELECTRICAL PROPERTIES VOLTAGE RATING 30V TEMPERATURE RATING 60 C 28AWG: 237 OHMS/KM AT 20C MAX CONDUCTOR RESISTANCE 24AWG: 93 OHMS/KM AT 20C MAX CABLE TO BE RoHS COMPLIANT CBL-USB2-2824.SLDDRW Initial Release: 04/04/11 Rev. C: ECN7908 By: DFP Page 1 of 1X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for L-Com manufacturer: Other Similar products are found below : AVG2-KVM DVIHDMF TSP4088C5 CAUALB-3M CA-RSPNMA002 HG913Y-NF CSMNB15MF-15 CSMNB15MM-10 TRD815RA2BLK-5 TRD815RA2BL-5 WJ670300 CSM9MF-2.5 CA3A-90DA-1M CA3A-90LA-05M CA3A-90LMICB-03M CA3A- 90RMICB-03M U3A00003-03M CTLF3VGAMM-20 HDCAMM-3 U3A00013-105M TSP8048C5S-10PK CSMT15MM-25 CSPL25MM- 50 CSPL9MF-10 CSPL9MF-5 CSPL25MF-5 TRD855HFB-1M TRD855HFB-4M TRD855HFB-5M AL-IPEPS NB201611-10F-1 NB121005-10F TRD855SRA6DBL-1M TRD855SRA7DBL-10M U2A00016-3M U2A00017-03M PR175SCDLCQ24 U3A00089-2M TRA5261S-1F TRA6261-1F TRA6261-25F HG2415U-PRO-5PK USBBFT DGB25F CAUBLKAB-1M CASATAL-18 CIB24-6M CA3A- 90LMICB-1M U2A00001-5M U3A00008-1M
