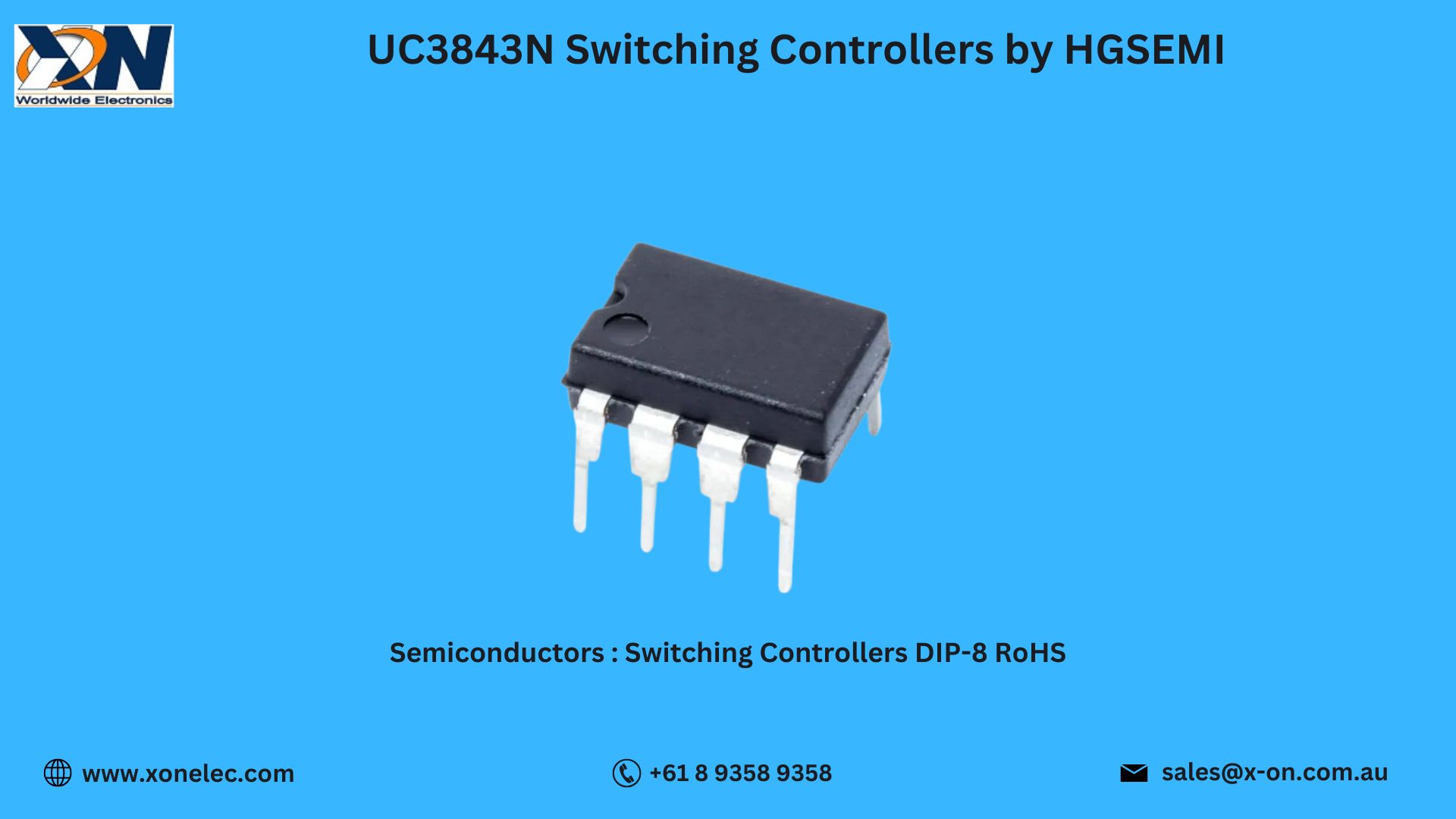

UC3843N Switching Controllers by HGSEMI – High-Speed PWM for Power-Efficient Systems
The Switching Controllers UC3843N by HGSEMI are high-performance current-mode PWM controllers designed to deliver fast and precise voltage regulation. These controllers are perfect for a wide range of power management IC applications, including switch-mode power supplies (SMPS), DC-DC converters, and more.
With a compact DIP-8 package and superior efficiency, the UC3843N stands out among Switching Controllers used in industrial, telecom, and consumer power systems.
Technical Specifications of UC3843N
-
Manufacturer: HGSEMI
-
Part Number: UC3843N
-
Function: Current-Mode PWM Switching Controller
-
Input Voltage Range: 7.6V – 30V
-
Start-Up Current: <1 mA
-
Output Type: Totem-Pole
-
Oscillator Frequency: Up to 500kHz
-
Package: DIP-8
-
Category: Semiconductors, Integrated Circuits - ICs, Power Management ICs, Voltage Regulators & Voltage Controllers, Switching Controllers
The UC3843N is designed for efficient and accurate control in compact designs.
Key Features of UC3843N Switching Controllers
-
Fast current-mode PWM control with enhanced loop response
-
Low start-up and operating current for energy savings
-
Trimmed internal 5V reference (±1%)
-
Totem-pole output stage for fast switching
-
Undervoltage lockout (UVLO) with hysteresis
With its robust feature set, the UC3843N Switching Controllers enable high-performance voltage regulation in demanding environments.
Applications of UC3843N
A dependable solution in the realm of Power Management ICs and Voltage Regulators & Voltage Controllers.
Wiring and Connection Overview
Pin Configuration (DIP-8):
-
Pin 1: Compensation
-
Pin 2: Voltage Feedback
-
Pin 3: Current Sense
-
Pin 4: RT/CT (Timing)
-
Pin 5: Ground
-
Pin 6: Output
-
Pin 7: VCC
-
Pin 8: Reference (VREF)
This IC is easy to implement in standard SMPS topologies with minimal external components.
Use Case Scenario: Industrial Automation Power Supply
Challenge: A manufacturer of automation equipment needed a reliable switching controller for a compact and efficient 24V power supply.
Solution: The UC3843N Switching Controllers from HGSEMI delivered consistent PWM control, reduced heat, and helped meet strict efficiency standards.
Result: Improved system uptime and reduced power losses — all using one robust switching controller.
