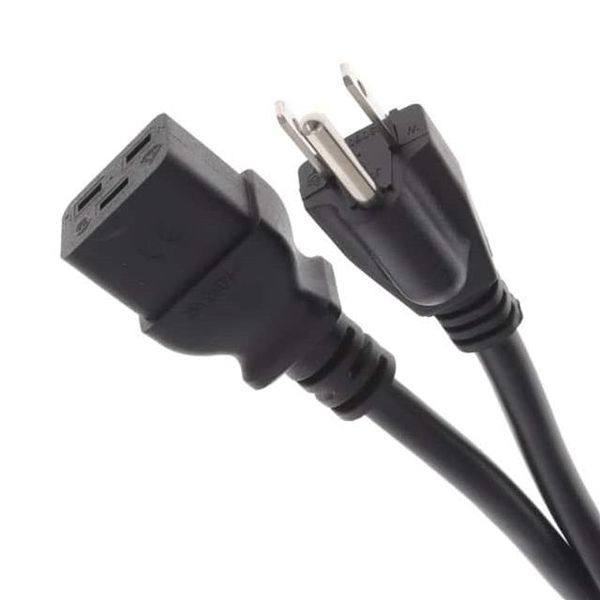

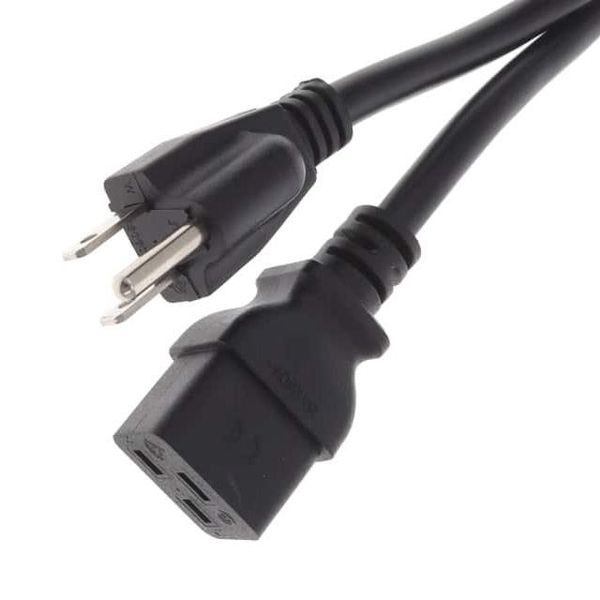

Nextreme Performance Series NRC400-T0-00-PC1 MFG Part Number: 385901-001 Nextreme NRC400 Performance Chiller Features Applications Precise Temperature Control Analytical Imaging The Nextreme NRC400 is a next generation benchtop recirculating chiller Compact Form Factor Industrial Laser Systems using solid-state thermoelectric technology for precise temperature Reliable Solid-State Operation Semiconductor Test & Measurement control of analytical and industrial equipment. It offers high heat pumping Intuitive GUI Laboratory Testing capacity for its size, improved temperature stability and lower noise Low Noise Operation Bath Cooling operation than previous models. Utilizing custom thermoelectric coolers with premium thermoelectric materials, it delivers a higher coefficient of performance (COP). The NRC400 is a semi-closed system with a large reservoir tank requiring less refilling. It is equipped with a high-quality pump offering high MTBF with low pulsation to accommodate highly sensitive imaging and test instruments. Users can easily control temperature setpoints and alarm settings via the LCD touchscreen display. Custom configurations are available, however, MOQ applies. Power cord is not supplied with the unit and must be ordered separately. 1 COOLING POWER OPERATING POINTS 100% Water (20C Ambient Air) 100% Water (30C Ambient Air) Cooling Power (Qc) = 400 Watts Cooling Power (Qc) = 266 Watts Fluid Setpoint = 20 C Fluid Setpoint = 20 C Fluid T 1.0 L/min = 5.8 C Fluid T 1.0 L/min = 3.8 C 70/30 Water-Glycol (20C Ambient Air) 70/30 Water-Glycol (30C Ambient Air) Cooling Power (Qc) = 388 Watts Cooling Power (Qc) = 258 Watts Fluid Setpoint = 20 C Fluid Setpoint = 20 C Fluid T 1.0 L/min = 5.9 C Fluid T 1.0 L/min = 3.9 CNextreme Performance Series NRC400-T0-00-PC1 MFG Part Number: 385901-001 NRC400-T0-00-PC1 Cooling Capacity 1 L/min Fluid Flow 800 100% Water (20C Ambient Air) 700 70/30 Water-Glycol (20C Ambient Air) 600 100% Water 500 (30C Ambient Air) 70/30 Water-Glycol 400 (30C Ambient Air) 300 100% Water (40C Ambient Air) 200 70/30 Water-Glycol (40C Ambient Air) 100 0 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 Fluid Temperature Setpoint (C) NRC400-T0-00-PC1 T (Inlet-Outlet) Fluid Temperature Max System Cooling at 20C Ambient Air 1 L/min Fluid Flow 12.0 10.0 100% Water =997.2 kg/m 8.0 Cp=4180.1 J/kgK 70/30 Water-Glycol 6.0 =1048 kg/m Cp=3776.5 J/kgK 4.0 2.0 0.0 0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 40.0 Fluid Temperature Setpoint (C) NRC400-T0-00-PC1 - Chiller Pump Curves 1.4 1.2 1.0 100% Water 0.8 T = 25C 70/30 Water-Glycol 0.6 T = 25C 0.4 0.2 0.0 0.0 1.0 2.0 3.0 4.0 5.0 6.0 Flow Rate (L/min) Pressure Delivered (bar) T (Inlet-Outlet) Fluid Temperature (C) Cooling Capacity (Watts)
