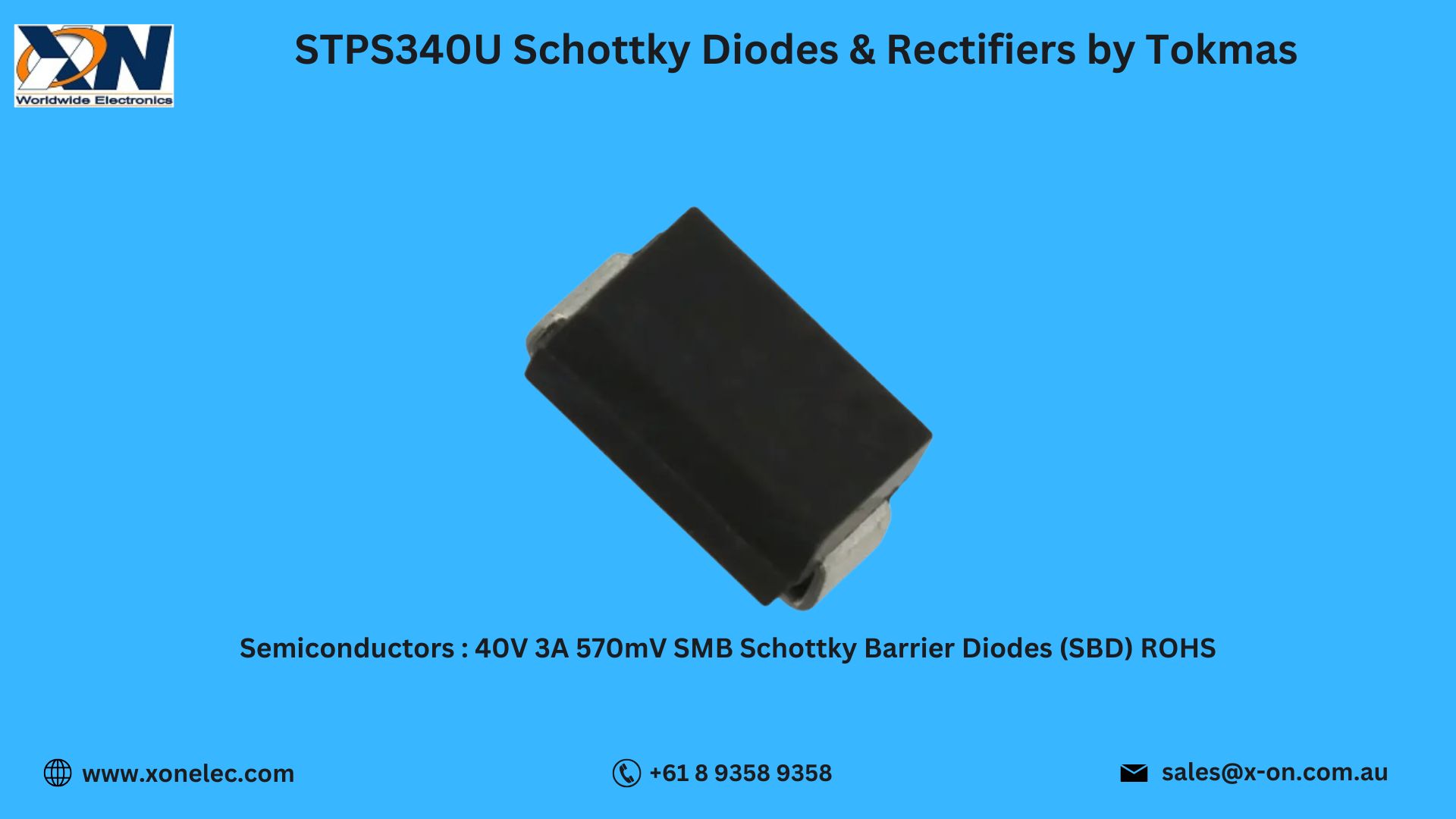

STPS340U Schottky Diodes by Tokmas – Buy Online at XON

STPS340U Schottky Diodes & Rectifiers by Tokmas – Buy Online at XON

The Schottky Diodes & Rectifiers STPS340U by Tokmas are high-efficiency components designed for fast switching applications with low forward voltage drop. These diodes belong to Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers and are widely used in power management, consumer electronics, and automotive solutions.

1. Technical Specifications of STPS340U

• Manufacturer: Tokmas

• Part Number: STPS340U

• Category: Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers

• Forward Current (IF): 3A

• Repetitive Peak Reverse Voltage (VRRM): 40V

• Forward Voltage Drop (VF): Low for reduced losses

• Package Type: SMA (Surface Mount)

• Operating Temperature Range: -55°C to +150°C

2. Key Features of STPS340U

• Ultra-fast recovery time

• Low forward voltage drop for energy efficiency

• High surge current capability

• Compact SMA package for space-saving designs

• Reliable thermal stability

3. Applications of STPS340U

• DC/DC converters

• Switched-Mode Power Supplies (SMPS)

• Automotive electronic systems

• Reverse polarity protection

• Consumer electronic devices

4. Wiring and Connection Overview

• Configuration: Standard anode and cathode terminals in SMA package

• Mounting Style: Surface-mount technology (SMT)

• Integration: Suitable for high-frequency power supply circuits

• Thermal Consideration: Proper PCB heat dissipation recommended

5. Use Case Example – Automotive Power Systems

Challenge: Automotive engineers needed efficient rectification with low heat generation.
Solution: Integration of the STPS340U Schottky Diodes & Rectifiers improved system efficiency.
Result: Reduced power losses and improved durability under high-load conditions.

6. Download Datasheet for STPS340U

[Download the STPS340U Datasheet at XON Electronics]

7. Also Available from Other Manufacturers

• STMicroelectronics – A leading manufacturer offering high-performance Schottky Diodes & Rectifiers for reliable and efficient electronic designs.

8. Why Buy from XON Electronics?

• 100% authentic Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers

• Worldwide delivery – USA, India, Australia, Europe & more

• Competitive prices for bulk and single orders

• Easy and secure ordering process

• Trusted supplier for engineers and manufacturers globally

9. FAQs – STPS340U Schottky Diodes & Rectifiers

Q1: What is the maximum forward current rating?
A: 3A continuous forward current.

Q2: Can it be used in SMPS applications?
A: Yes, it is well-suited for SMPS and DC/DC converters.

Q3: What package type is used?
A: Compact SMA surface-mount package.

Q4: Does it have low power loss?
A: Yes, thanks to its low forward voltage drop.

Q5: Where can I buy it?
A: Available worldwide at www.xonelec.com with fast shipping.

Conclusion

The STPS340U Schottky Diodes & Rectifiers by Tokmas provide efficient performance, low power loss, and robust reliability, making them ideal for modern electronics. As part of Semiconductors, Discrete Semiconductors, Diodes & Rectifiers, Schottky Diodes & Rectifiers, these components are a top choice for power and automotive systems. Buy now from XON for fast global delivery.
