MC24005A6W-FPTLW-V2 Midas

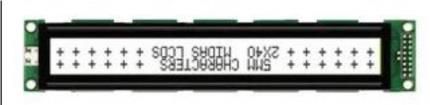

Electra House, 32 Southtown Road Telephone +44 (0)1493 602602 Great Yarmouth, Norfolk Fax +44 (0)1493 665111 NR31 0DU, England Email:sales midasdisplays.com www.midasdisplays.com M C24005A6W-FPTLW-V 2 2 x 40 5mm Character Height LCD Module Specification Version: 1 Date: 31 /10/2016 Revision Display Features Operating Temp. Range -20C ~ +70C Viewing Direction 6 OClock STN FSTN Transflective Backlight LED White Controller SPLC780D Characters 2 x 40 Box Quantity Weight / Display Voltage 5V 15 pcs 100 grams Module Size 182.00 x 33.50 x 14.00 mm Character Height 5mm Display Construction Chip on Board * - For full design functionality, please use this specification in conjunction with the SPLC780D specification. (Provided Separately) Optional Variants Display Accessories Physical Fonts Voltage Part Number Description Aspects LCD interconnect board, can be driven from either a MCCMDB-16DIL PC or a single board computer with a USB output. English/Japanese N/A N/A 16 Way, Dual in-line to MCCBL1A16DILP Dual In-line connector -16DILS-150 Cable. Mechanical Specifications Module Size 182.00 x 33.50 x 14.00 ( With Backlight) W x H x D mm Viewing Area 152.50 x 16.50 W x H mm Hole-to-Hole 175.00 x 26.50 W x H mm Character Size 3.20 x 5.55 W x H mm Character Pitch 0.50 x 0.40 W x H mm Dot Size 0.60 x 0.65 W x H mm Dot Pitch 0.05 x 0.05 W x H mm MC24005A6W-FPTLW-V2 2 x 40 5mm Character Height LCD Module Specification Version: 1 Date: 31/10/2016 Revision
