531128 Mitutoyo

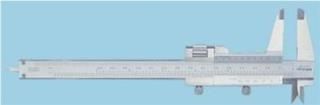

Vernier Caliper SERIES 531 with Thumb Clamp 531-101 FEATURES The slider moves only when the spring loaded thumb clamp is Dimensions Unit: mm L depressed. Can measure OD, ID, depth, and steps. Range L a b c d 0 - 150mm 229 40 21.5 17 16 0 - 200mm 288 50 25 20.5 16 0 - 300mm 403 64 27.5 22 20 SPECIFICATIONS Metric Range lower scale Range upper scale Order No. Vernier reading (lower scale) Vernier reading (upper scale) Accuracy Remarks 0 - 150mm 531-101 0.05mm 0.05mm With depth bar 531-140 0.02mm 0.03mm With depth bar 0 - 200mm 531-102 0.05mm 0.05mm With depth bar 531-141 0.02mm 0.03mm With depth bar 0 - 300mm 531-103 0.05mm 0.08mm With depth bar 531-142 0.02mm 0.04mm With depth bar Inch Range lower scale Range upper scale Order No. Vernier reading (lower scale) Vernier reading (upper scale) Accuracy Remarks 0 - 6 0 - 6 531-113 .001 1/128 .0015 With depth bar 0 - 8 0 - 8 531-114 .001 1/128 .0015 With depth bar Metric/Inch Range lower scale Range upper scale Order No. Vernier reading (lower scale) Vernier reading (upper scale) Accuracy Remarks 0 - 150mm 0 - 6 531-107 0.05mm 1/128 0.05mm With depth bar 531-122* 0.05mm 1/128 0.05mm With depth bar 531-128 0.02mm .001 0.03mm With depth bar 0 - 200mm 0 - 8 531-108 0.05mm 1/128 0.05mm With depth bar 531-129 0.02mm .001 0.03mm With depth bar 0 - 300mm 0 - 12 531-109 0.05mm 1/128 0.08mm With depth bar 531-112 0.02mm .001 0.04mm With depth bar *mm/inch conversion table is labeled on the underside of slider. 44 CALIPERS b a c dX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for mitutoyo manufacturer: Other Similar products are found below : 2109S-10 530-104 103-129 500-171-30 7010SN 148-104 530-118 293-832 959150 2046SB 543-391B 500-184-30 102-301 575-123 148- 201 500-196-30 2046S 7301
