1N752A NTE

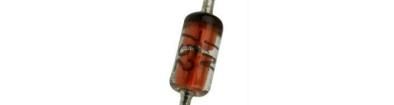

NTE5000A thru NTE5060A 1 Zener Diode, / Watt 2 5% Tolerance Features: Zener Voltage 2.4 to 200V DO35 Package Maximum Ratings: Operating Junction Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +200C opr Storage Temperature Range, T . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65 to +200C stg DC Power Dissipation, P . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW D Derate Above 75C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.0mW/C Forward Voltage (I = 200mA), V . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1V F F Electrical Characteristics: (T = +25C, unless otherwise specified) C Typical Maximum Dynamic Nominal Zener Maximum Impedance Temperature Zener Voltage Test Leakage Coefficient Z V I Current Current NTE Type zk (Note 2) z zt Z I 0.25mA (I ) Number (Note 1) (I ) zt zt zk I V zt R R vz Volts mA Ohms Ohms %/C A Volts NTE5000A 2.4 20 30 1200 0.085 100 1.0 NTE5001A 2.5 20 30 1250 0.085 100 1.0 NTE5002A 2.7 20 30 1300 0.080 75 1.0 NTE5003A 2.8 20 30 1400 0.080 75 1.0 NTE5004A 3.0 20 29 1600 0.075 50 1.0 NTE5005A 3.3 20 28 1600 0.070 25 1.0 NTE5006A 3.6 20 24 1700 0.065 15 1.0 NTE5007A 3.9 20 23 1900 0.060 10 1.0 NTE5008A 4.3 20 22 2000 0.055 5 1.0 NTE5009A 4.7 20 19 1900 0.030 5 2.0 NTE5010A 5.1 20 17 1600 0.030 5 2.0 NTE5011A 5.6 20 11 1600 +0.038 5 3.0Electrical Characteristics (Contd): (T = +25C, unless otherwise specified) C Maximum Dynamic Typical Nominal Zener Maximum Temperature Impedance Zener Voltage Test Leakage Coefficient Z NTE Type V I Current zk (Note 2) Current z zt Z I 0.25mA (I ) Number (Note 1) (I ) zt zt I V zk zt R R vz Volts mA Ohms Ohms %/C A Volts NTE5012A 6.0 20 7 1600 +0.038 5 3.5 NTE5013A 6.2 20 7 1000 0.045 5 4.0 NTE5014A 6.8 20 5 750 0.050 3 5.0 NTE5015A 7.5 20 6 500 0.058 3 6.0 NTE5016A 8.2 20 8 500 0.062 3 6.5 NTE5017A 8.7 20 8 600 0.065 3 6.5 NTE5018A 9.1 20 10 600 0.068 3 7.0 NTE5019A 10 20 17 600 0.075 3 8.0 NTE5020A 11 20 22 600 0.076 2 8.4 NTE5021A 12 20 30 600 0.077 1 9.1 NTE5022A 13 9.5 13 600 0.079 0.5 9.9 NTE5023A 14 9.0 15 600 0.082 0.1 10 NTE5024A 15 8.5 16 600 0.082 0.1 11 NTE5025A 16 7.8 17 600 0.083 0.1 12 NTE5026A 17 7.4 19 600 0.084 0.1 13 NTE5027A 18 7.0 21 600 0.085 0.1 14 NTE5028A 19 6.6 23 600 0.086 0.1 14 NTE5029A 20 6.2 25 600 0.086 0.1 15 NTE5030A 22 5.6 29 600 0.087 0.1 17 NTE5031A 24 5.2 33 600 0.088 0.1 18 NTE5032A 25 5.0 35 600 0.089 0.1 19 NTE5033A 27 4.6 41 600 0.090 0.1 21 NTE5034A 28 4.5 44 600 0.091 0.1 21 NTE5035A 30 4.2 49 600 0.091 0.1 23 NTE5036A 33 3.8 58 700 0.092 0.1 25 NTE5037A 36 3.4 70 700 0.093 0.1 27 NTE5038A 39 3.2 80 800 0.094 0.1 30 NTE5039A 43 3.0 93 900 0.095 0.1 33 NTE5040A 47 2.7 105 1000 0.095 0.1 36
