TP10 nVent

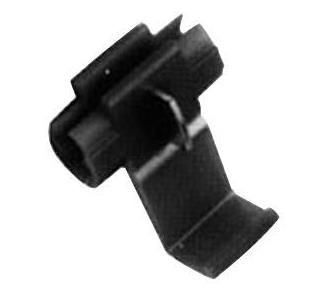

TOC DISCONNECTSDISCONNECTS PREVIOUS NEXT SECTION SECTION 1 2 3 4 5 6 7 8 9 10 11 12 I Go To Section 3 - DISCONNECTS MALE & FEMALE DISCONNECTS Non-Insulated .......................................................... 52 Vinyl Insulated .......................................................... 54 PC Insulated ............................................................ 57 NYLON COUPLAR SETS ........................................................ 58 PIGGYBACK DISCONNECTS.................................................... 59 KNIFE DISCONNECTS .......................................................... 60 FEMALE FLAG DISCONNECTS ................................................ 61 MALE BULLETS AND FEMALE RECEPTACLES Vinyl Insulated .......................................................... 62 Nylon Insulated ........................................................ 64 OPEN BARREL MALE & FEMALE DISCONNECTS .................................................... 65 SPECIALTY CONNECTORS Double Male and Female .............................................. 66 Quick Tap Splices ...................................................... 66 INSULATING SLEEVES.......................................................... 67 51 HOFFMAN PRODUCTS hoffmanproducts.com 1-800-645-2014TOC BACK DISCONNECTS Disconnects W Non-Insulated Female Disconnects Material: Tin Plated Brass Temperature: 300F F Maximum Electrical Rating: 22-16: 10 Amps Barrel ID (d1): .067 Wire Stop L 16-14: 15 Amps Barrel ID (d1): .091 12-10: 24 Amps Barrel ID (d1): .134 T B d1 D T= Material Thickness HOFFMAN WIRE DIMENSIONS (INCHES) TAPE DIE FOR HAND PART NO. SIZE TAB MOUNTED TAPE TOOL W F L B D T UL REEL QTY MOUNT DF2216T110A5 22-16 .110 x .020 0.126 0.256 0.535 0.189 0.106 0.012 N 1000 3Q2216 YHM228 DF2216T110A8 22-16 .110 x .032 0.126 0.256 0.535 0.189 0.106 0.012 N 1000 3Q2216 YHM228 DF2216T187A5 22-16 .187 x .020 0.199 0.248 0.543 0.189 0.106 0.014 N 1000 3Q2216 YHM228 DF2216T187A5/J 22-16 .187 x .020 0.197 0.236 0.560 0.195 0.106 0.014 Y 1000 3Q2216 YHT2210 DF2216T187A8 22-16 .187 x .032 0.199 0.248 0.543 0.189 0.106 0.014 N 1000 3Q2216 YHM228 DF2216T187A8/J 22-16 .187 x .032 0.197 0.236 0.560 0.195 0.106 0.014 Y 1000 3Q2216 YHT2210 DF2216T250A 22-16 .250 x .032 0.260 0.287 0.598 0.189 0.106 0.016 N 1000 3Q2216 YHM228 DF2216T250A/J 22-16 .250 x .032 0.260 0.307 0.630 0.195 0.106 0.016 Y 1000 3Q2216 YHT2210 DF1614T187A5 16-14 .187 x .020 0.200 0.248 0.543 0.189 0.130 0.014 N 1000 3Q1614 YHM228 DF1614T187A5/J 16-14 .187 x .020 0.197 0.236 0.560 0.195 0.130 0.014 Y 1000 3Q1614 YHT2210 DF1614t187A8 16-14 .187 x .032 0.199 0.252 0.543 0.189 0.130 0.014 N 1000 3Q1614 YHM228 DF1614T250A 16-14 .250 x .032 0.260 0.287 0.598 0.189 0.130 0.016 N 1000 3Q1614 YHM228 DF1614T250A/J 16-14 .250 x .032 0.260 0.307 0.630 0.195 0.130 0.016 Y 1000 3Q1614 YHT2210 DF1210T250A 12-10 .250 x .032 0.260 0.287 0.638 0.228 0.177 0.016 N 500 3Q1210 YHM228 DF1210T250A/J 12-10 .250 x .032 0.260 0.307 0.670 0.135 0.177 0.016 Y 500 3Q1210 YHT2210 BACK 52 HOFFMAN PRODUCTS hoffmanproducts.com 1-800-645-2014
