BT138-600 NXP

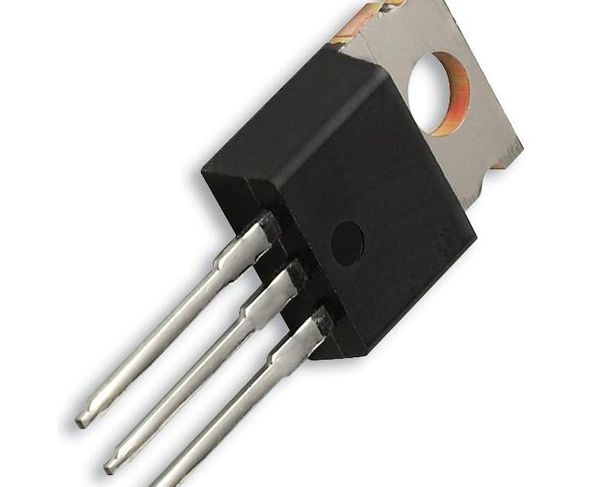

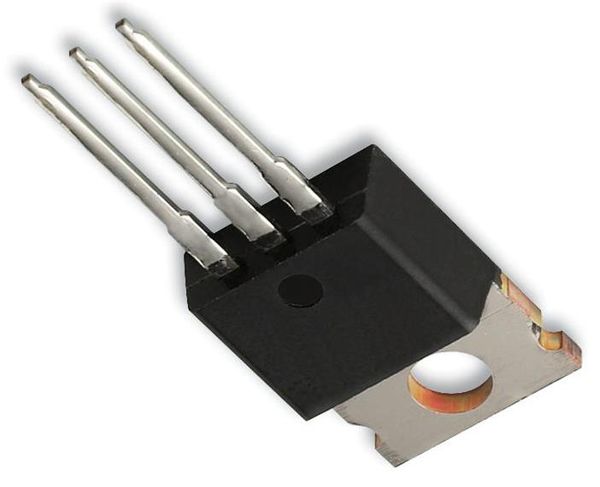

BT138-600 4Q Triac 29 August 2013 Product data sheet 1. General description Planar passivated four quadrant triac in a SOT78 (TO-220AB) plastic package intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include motor control, industrial and domestic lighting, heating and static switching. 2. Features and benefits High blocking voltage capability Less sensitive gate for improved noise immunity Planar passivated for voltage ruggedness and reliability Triggering in all four quadrants 3. Applications General purpose motor control General purpose switching 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit V repetitive peak off- - - 600 V DRM state voltage I non-repetitive peak on- full sine wave T = 25 C - - 95 A TSM j(init) state current t = 20 ms Fig. 4 Fig. 5 p T junction temperature - - 125 C j I RMS on-state current full sine wave T 99 C Fig. 1 - - 12 A T(RMS) mb Fig. 2 Fig. 3 Static characteristics I gate trigger current V = 12 V I = 0.1 A T2+ G+ - 5 35 mA GT D T T = 25 C Fig. 7 j V = 12 V I = 0.1 A T2+ G- - 8 35 mA D T T = 25 C Fig. 7 j V = 12 V I = 0.1 A T2- G- - 10 35 mA D T T = 25 C Fig. 7 j Scan or click this QR code to view the latest information for this product TO-220ABNXP Semiconductors BT138-600 4Q Triac Symbol Parameter Conditions Min Typ Max Unit V = 12 V I = 0.1 A T2- G+ - 22 70 mA D T T = 25 C Fig. 7 j Dynamic characteristics dV /dt rate of rise of off-state V = 402 V T = 125 C (V = 67% 100 250 - V/s D DM j DM voltage of V ) exponential waveform gate DRM open circuit 5. Pinning information Table 2. Pinning information Pin Symbol Description Simplified outline Graphic symbol 1 T1 main terminal 1 mb T2 T1 G 2 T2 main terminal 2 sym051 3 G gate mb T2 mounting base main terminal 2 1 2 3 TO-220AB (SOT78) 6. Ordering information Table 3. Ordering information Type number Package Name Description Version BT138-600 TO-220AB plastic single-ended package heatsink mounted 1 mounting SOT78 hole 3-lead TO-220AB BT138-600/DG TO-220AB plastic single-ended package heatsink mounted 1 mounting SOT78 hole 3-lead TO-220AB BT138-600 All information provided in this document is subject to legal disclaimers. NXP N.V. 2013. All rights reserved Product data sheet 29 August 2013 2 / 13
