X-On Electronics has gained recognition as a prominent supplier of V22-11D-24Y-S Control Switches across the USA, India, Europe, Australia, and various other global locations. V22-11D-24Y-S Control Switches are a product manufactured by Onpow. We provide cost-effective solutions for Control Switches, ensuring timely deliveries around the world.

V22-11D-24Y-S Onpow

Name: V22-11D-24Y-S
Brand: Onpow
SKU: V2211D24YS_Onpow
Availability: OutOfStock
Rating: 5 (11 reviews)

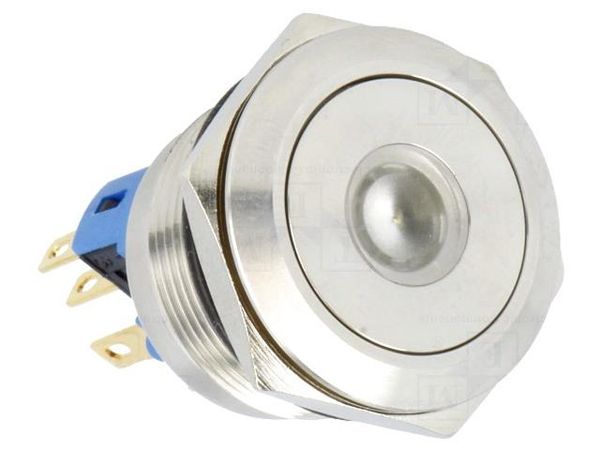

V22-11D-24Y-S electronic component of Onpow

Images are for reference only
See Product Specifications

Part No.	V22-11D-24Y-S
Manufacturer:	Onpow
Category:	Control Switches
Description:	Vandal Resistant Switches
Datasheet:	V22-11D-24Y-S Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 15.7892 ea
Line Total: USD 15.79

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

V22-11D-24Y-S More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Fri. 09 May to Tue. 13 May MOQ : 1 Multiples : 1	1 : USD 15.7892 2 : USD 11.9027 5 : USD 11.2498

Specifications

Manufacturer Onpow Onpow
Product Category Control Switches Control Switches
IP Rating IP65 IP65
Category Control Switches Control Switches
Leads for soldering for soldering
Number Of Positions 2 2
Contact Material silver alloy silver alloy
Max. Contact Resistance : 50mÎ© : 50mÎ©
Switching Method ON - (ON) ON - (ON)
Electrical Life 50000 cycles 50000 cycles
Body Material stainless steel stainless steel
Mechanical Durability 1000000 cycles 1000000 cycles
Test Voltage 2 kV 2 kV
Type Of Switch vandal resistant vandal resistant
Body Colour silver silver
Backlight Colour yellow yellow
Button Shape flat flat
Contacts Configuration SPST - NO + SPST - NC SPST - NO + SPST - NC
Illumination point, LED 24V AC/DC point, LED 24V AC/DC
Operating Force 5.5N 5.5N
Mounting Hole Diameter Ã˜22 mm Ã˜22 mm
Ring Shape rounded rounded
Dc Contacts Rating @R 5A / 24V DC 5A / 24V DC
Ac Contacts Rating @R 3A / 220V AC 3A / 220V AC
Stable Positions Number 1 1
Operating Temperature - 20 To 55Â C - 20 To 55Â C

We are delighted to provide the V22-11D-24Y-S from our Control Switches category, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the V22-11D-24Y-S and other electronic components in the Control Switches category and beyond.
