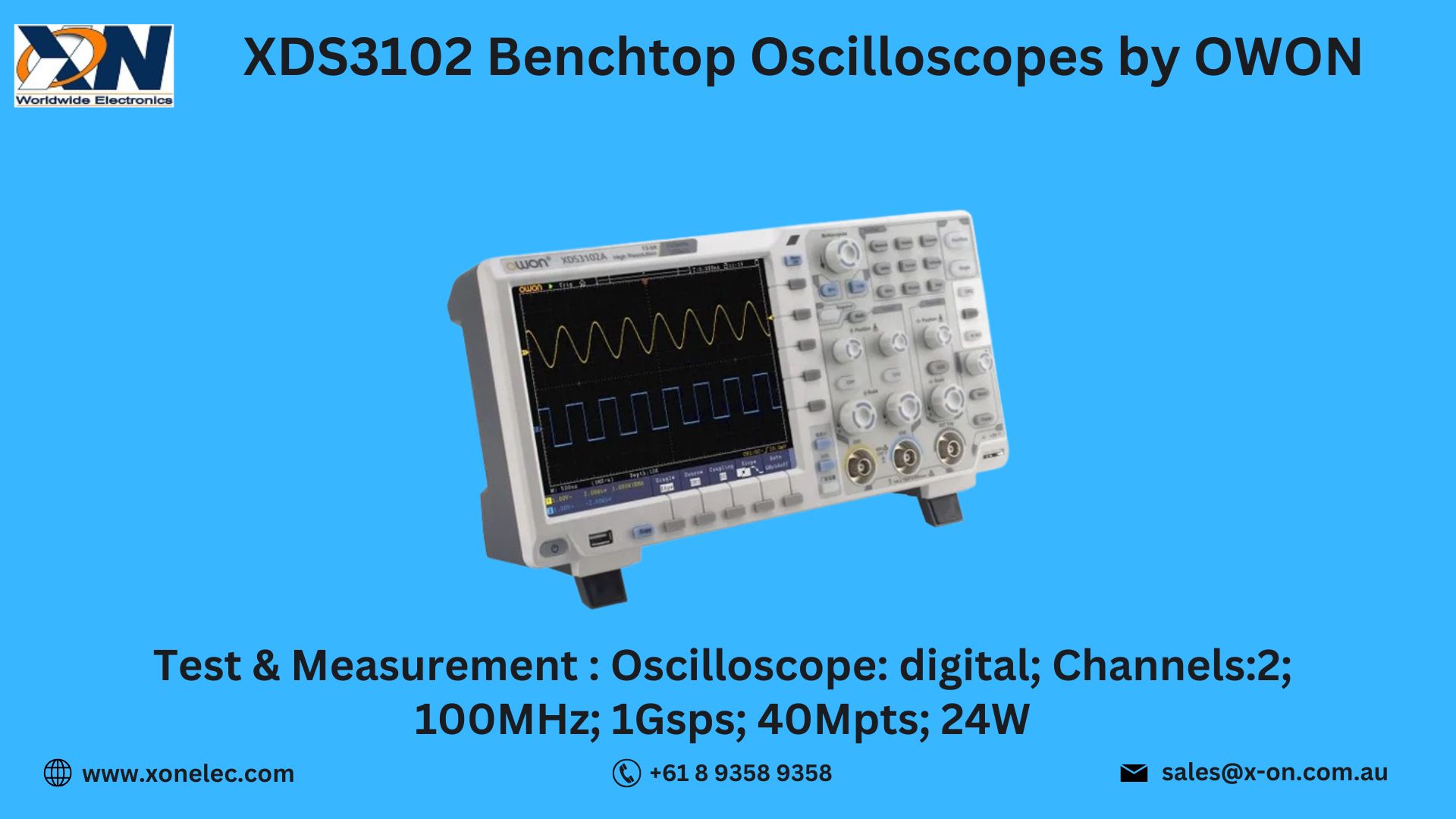

XDS3102 Benchtop Oscilloscopes by OWON – High-Performance Digital Test & Measurement Tool

The Benchtop Oscilloscopes XDS3102 by OWON deliver high accuracy, advanced triggering, and exceptional waveform capture for modern electronics diagnostics. Designed for engineers, technicians, and researchers, this 2-channel, 100 MHz digital oscilloscope combines portability with professional-grade performance. As part of OWON’s powerful Test & Measurement suite, it provides an ideal balance of speed, resolution, and usability—perfect for labs, repair stations, and classrooms.

In this blog, we’ll cover its key specifications, core features, use cases, connectivity setup, and how to download the datasheet or order from Xon Electronics. Whether you’re testing embedded systems, analyzing signals, or debugging PCBs, this scope is a must-have in your Benchtop Oscilloscopes collection.

Technical Specifications of XDS3102

• Manufacturer: OWON

• Part Number: XDS3102

• Type: Benchtop Oscilloscope

• Bandwidth: 100 MHz

• Channels: 2

• Sample Rate: 1 GSa/s (real-time)

• Display: 8-inch color LCD (800x600 resolution)

• Memory Depth: 40Mpts

• Connectivity: USB, LAN, VGA output

• Trigger Modes: Edge, Pulse, Video, Slope, Alternate

• Category: Test & Measurement, Oscilloscopes, Benchtop Oscilloscopes

This model is engineered to support deep waveform capture, quick data analysis, and stable signal acquisition across applications.

Key Features of XDS3102 Benchtop Oscilloscope

• 100 MHz Bandwidth, 1 GSa/s Rate – Supports accurate signal visualization for various frequencies

• 8” High-Resolution Display – Intuitive interface with vivid waveform clarity

• 40Mpts Memory Depth – Captures longer data streams with precision

• Multiple Interfaces (USB, LAN) – Enables PC connectivity, data transfer, and remote control

• Advanced Triggering & Math Functions – Ideal for signal diagnostics and embedded debugging

These features make the XDS3102 a powerful addition to any Test & Measurement or diagnostics setup involving Oscilloscopes.

Applications of XDS3102

The OWON XDS3102 is suitable for both educational and professional environments:

• Embedded System Debugging

• Circuit and Component Testing

• Research & Development Labs

• Electronics Repair & Troubleshooting

• Vocational Training and Engineering Labs

• Signal Analysis for Communication Devices

Its versatility makes it a top-tier choice in Benchtop Oscilloscopes for engineers and educators alike.

Connectivity and Setup Overview

Typical signal testing configuration:

[Device Under Test (DUT)]
   ?
[Signal Probes Connected to XDS3102 Channels]
   ?
[Live Waveform Display on LCD]
   ?
[Optional USB or LAN to PC for Data Logging or Control]

This Benchtop Oscilloscope is compact yet powerful, making it ideal for desktop or portable test benches in Test & Measurement applications.

Use Case Scenario: Debugging Voltage Spikes in a Power Supply Circuit

Scenario: A hardware engineer faced issues with voltage transients in a switching power supply.

Problem: Their entry-level scope lacked memory depth and couldn’t capture short-duration anomalies.

Solution: The OWON XDS3102, with 40Mpts memory and 1 GSa/s sampling rate, provided detailed waveform analysis of the spikes.

Result: Quicker fault identification, component adjustments, and a stable final design.

This use case highlights how advanced Oscilloscopes like the XDS3102 speed up problem-solving in real-world circuits.

Download Datasheet for XDS3102

Need full specs, waveform screenshots, or interface details?

[Download XDS3102 Datasheet from Xon Electronics]

Get the latest datasheet for precise integration and usage of this high-performance Benchtop Oscilloscope.

Why Buy from Xon Electronics?

Xon Electronics is your trusted supplier of reliable Test & Measurement instruments and professional Oscilloscopes:

• 100% Authentic OWON Instruments
• Worldwide Delivery – USA, India, Australia, Europe & other countries
• Discounts for Educational Institutions and OEMs
• Application Support and Configuration Guidance
• Fast, Secure Online Checkout

Power your diagnostics with trusted Benchtop Oscilloscopes from Xon Electronics.

Conclusion

The XDS3102 Benchtop Oscilloscopes by OWON are a feature-rich, budget-friendly solution for precision signal analysis. From embedded development to academic research, this model delivers speed, clarity, and usability for today’s Test & Measurement demands. Order now from Xon Electronics and take your signal testing to the next level—globally delivered, locally supported.
