CBBR1529 Pro Power

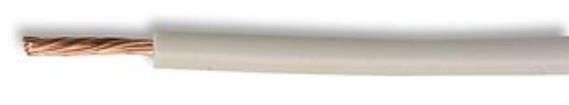

Equipment Wires Plain Stranded 2 2 PVC insulated plain stranded copper conductors to BS6500 up to 1 mm and BS6004 up to 2.5 mm . Harmonised codes H05V-K 2 2 (0.5 to 1 mm ) and H07V-K (1.5 to 2.5 mm ) except yellow. Intended for use within electrical and electronic appliances, light fittings, control panels etc, where the combination of ambient temperature and load temperature rise results in a conductor temperature not exceeding 70C Specifications: Single wire: Reference : 2491X PVC insulated 300 / 500 V harmonised code designation HO5V-K Uses : For internal wiring Conductor : High conductivity flexible plain annealed copper Insulation : PVC Insulation colours : Black, blue, brown, red, white, yellow and green Cable Data Sheet: 2 2 Description : PVC insulated plain stranded copper conductors 0.5 mm to 2.5 mm Conductor : 16/0.2 mm to 50/0.25 mm, plain annealed copper Insulation : General purpose PVC, 0.6 mm to 0.8 mm nominal thickness, 2.6 mm to 4.1 mm nominal outside diameter Temperature range : -15C to +70C 2 Conductor resistance : 7.98 /1,000 m (for 2.5 mm ) 2 2 Voltage rating : 300/500 V (0.5 to 1.0 mm ), 450/750 V (1.5 to 2.5 mm ) 2 Spark test : 6,000 V (for 2.5 mm ) rms Specification Table Nominal Conductor Nominal Outside Current Approximate Length Part Description Wall Diameter Rating Net Weight per Colour (m) Number Area Thickness Range (A) 1,000-m (Kg) Stranding 2 (mm) (mm ) Wire, Black, Black CBBR0391 0.5 mm, 100 m Wire, Blue, Blue CBBR1523 0.5 mm, 100 m Wire, Brown, Brown CBBR1524 0.5 mm, 100 m Wire, Red, 0.5 16/0.2 0.6 2.1 to 2.5 3 10 Red 100 CBBR0392 0.5 mm, 100 m Wire, White, White CBBR1525 0.5 mm, 100 m Wire, Yellow, Yellow CBBR1526 0.5 mm, 100 m Wire, Green/Yellow, Green/ CBBR0390 0.5 mm,100 m Yellow Dimensions : Millimetres www.element14.com www.farnell.com www.newark.com www.cpc.co.uk <Page 1> 20/12/11 V1.1Equipment Wires Plain Stranded Specification Table Nominal Conductor Nominal Outside Current Approximate Length Part Description Wall Diameter Rating Net Weight per Colour (m) Number Area Thickness Range (A) 1000-m (Kg) Stranding 2 (mm) (mm ) Wire, Black, Black CBBR0394 0.75 mm, 100 m Wire, Blue, Blue CBBR1527 0.75 mm, 100 m Wire, Brown, Brown CBBR1528 0.75 mm, 100 m Wire, Red, 0.75 24/0.2 2.2 to 2.7 6 13 Red CBBR0395 0.75 mm, 100 m Wire, White, White CBBR1529 0.75 mm, 100 m Wire, Yellow, Yellow CBBR1530 0.75 mm, 100 m Wire, Green/Yellow, Green/ CBBR0393 0.75 mm, 10 m Yellow 0.6 Wire, Black, Black CBBR0397 1 mm, 100 m Wire, Blue, Blue CBBR1531 1 mm, 100 m 100 Wire, Brown, Brown CBBR1532 1 mm, 100 m Wire, Red, 1 32/0.2 2.4 to 2.8 10 16 Red CBBR0398 1 mm, 100 m Wire, White, White CBBR1533 1 mm, 100 m Wire, Yellow, Yellow CBBR1534 1 mm, 100 m Wire, Green/Yellow, Green/ CBBR0396 1 mm, 100 m Yellow Wire, Black, Black CBBR0400 1.5 mm, 100 m Wire, Blue, Blue CBBR1535 1.5 mm, 100 m 1.5 30/0.25 0.7 2.8 to 3.4 16 - Wire, Brown, Brown CBBR1536 1.5 mm, 100 m Wire, Red, Red CBBR0401 1.5 mm, 100 m Dimensions : Millimetres www.element14.com www.farnell.com www.newark.com www.cpc.co.uk <Page 2> 20/12/11 V1.1
