PP-6491X-1.50MMBLK

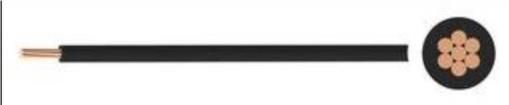

Cable Application: 6491X Cable H07V-R/H07V-U is suitable for power and lighting circuits and building wiring. The cable is intended for use in semi-flush exposed conduits and embedded conduits as well as in closed installation ducts, and is ideal for the internal wiring of appliances. Cable Standards: BS EN 50525-2-31 (previously BS 6004) BASEC approved, BS EN/IEC 60332-1-2 Construction: Conductor : H07V -R: Class 2 stranded copper conductor to BS EN 60228 (previously BS 6360) H07V-U: Class 1 solid copper conductor to BS EN 60228 (previously BS 6360) Insulation : PVC (Polyvinyl Chloride) Type TI1 according to BS EN 50363 Characteristics: Voltage Rating (Uo/U) : 450/750V Temperature Rating : -15C to +70C 2 Min. Bending Radius : Up to 10mm : 3 overall diameter Insulation Colour : Black, Blue, Brown, Green/Yellow & Grey Electrical Characteristics Current Carrying Capacity Reference Method A Reference Method B Reference Method C (Enclosed in Conduit in (Enclosed in Conduit on a Wall (Clipped Direct) Thermally Insulating Wall etc.) Or in Trunking etc.) Nominal Cross 3 or 4 Cables 2 Cables Sectional Area 2 Cables 3 or 4 Cables 2 Cables 3 or 4 Cables Three-Phase Single-Phase 2 mm Single-Phase Three-Phase Single-Phase Three-Phase AC flat and AC or DC flat AC or DC AC AC or DC AC touching or or touching Amps Amps Amps Amps trefoil Amps Amps 1.5 14.5 13.5 17.5 15.5 20 18 2.5 20 18 24 21 27 25 4 26 24 32 28 37 33 Ambient temperature: 30C Conductor operating temperature: 70C The above table is in accordance with Table 4D1A of the 17th Edition of IEE Wiring Regulations. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 28/07/17 V1.0Cable Voltage Drop 2 Cables Single-Phase AC 3 OR 4 Cables Three-Phase AC mV/A/m mV/A/m Nominal Reference Methods C, F Reference Reference Cross 2 Cables Reference Methods C, F (clipped direct, on tray Methods Methods Sectional DC (clipped direct, on tray or in free air) or in free air) A and B A and B Area mV/A/m 2 (enclosed (enclosed Cables Cables Cables mm Cables Cables in conduit in conduit Touching, Touching, Spaced*, Touching Spaced or trunking) or trunking) Trefoil Flat Flat 1.5 28 29 29 29 25 25 25 25 2.5 18 18 18 18 15 15 15 15 4 11 11 11 11 9.5 9.5 9.5 9.5 Conductor operating temperature: 70C * Spacings larger than one cable diameter will result in a larger voltage drop. The above table is in accordance with Table 4E1B from the 17th Edition of IEE Wiring Regulations. Conductors Class 2 Stranded Conductors for Single Core and Multi-Core Cables Max. Resistance of Min. No. of Wires in Conductor Conductor at 20C Nominal Cross Circular Sectional Area Circular Shaped Annealed Copper Conductor Compacted 2 mm Plain Wires Cu Al Cu Al Cu Al /km 1.5 7 - 6 - - - 12.1 2.5 7 - 6 - - - 7.41 4 7 - 6 - - - 4.61 The above table is in accordance with BS EN 60228 (previously BS 6360) De-Rating Factors For Ambient Air Temperatures other than 30C Air Temperature 25C 30C 35C 40C 45C 50C 55C De-Rating Factor 1.03 1 0.94 0.87 0.79 0.71 0.61 Dimensions Nominal Cross Nominal Thickness Nominal Overall Nominal Weight Part Number Sectional Area of Insulation Diameter kg/km 2 mm mm mm PP-6491X-1.50MMBLK 1.5 0.7 2.9 22 PP-6491X-1.50MMBLU www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 28/07/17 V1.0
